Outdoor Weatherproof PoE Switch, with 8×Gigabit Poe/Uplink Ports+2G SFP Slots, All-in-One Box, 120W PoE Power Budget, IEEE802.3af/at, AI Watchdog, Plug&Play, Fan-Less Unmanaged.
- Equpiment with 8 gigabit poe ports (10/100/1000Mbps) and 2 SFP(1000Mbps), IEEE802.3af/at poe compliant, up to 30W per poe port for powering poe enabled devices, total power budget 130W. please note: not support passive 24V PoE
- Industrial housing design, integrated top cover, PC/ABS high polymer alloy material, extraordinary toughness, waterproof indoor and outdoor full-time, make sure the switch can be used in the bad weather. 6KV lightning protection, surge protection, short-circuit protection, over-temperature protection, over-current protection
- No software or configuration required and designed for wall-mounted or pole-mounted flexible deployment, Unmanaged, Fan-less, Durable ABS casing.

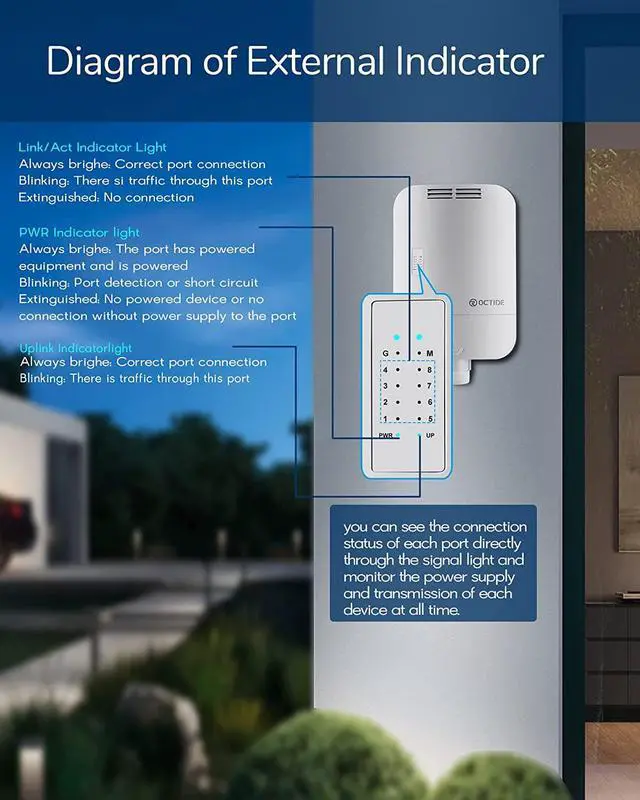

- You can directly see the connection status of each port through the signal light, and monitor the power supply and transmission of each powered PoE device at any time
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Easy to Install
Octide outdoor poe switch is fully compatible with PoE cameras powered and data transmission. Supports 802.3 af/at standards, which allows loads up to 30W/port. against excessive overload, Has automatic protection mechanism.

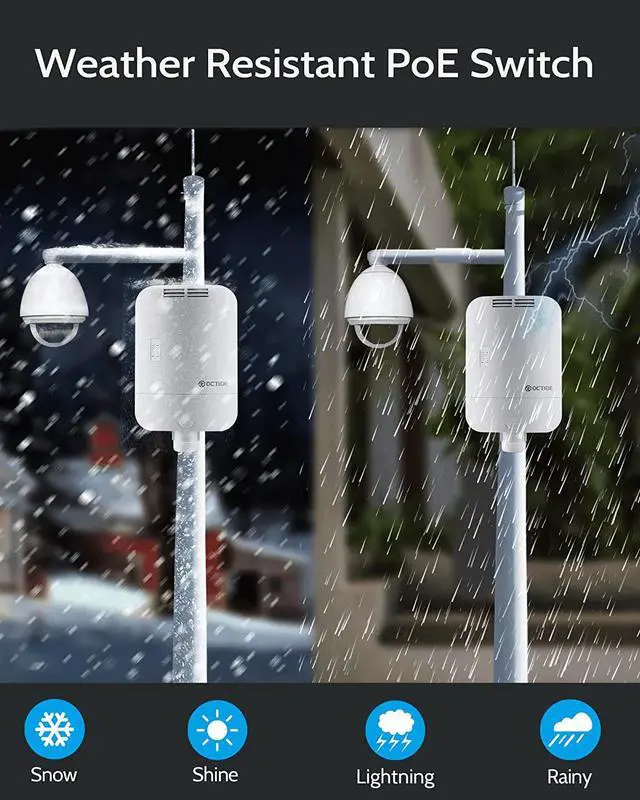

IP65 Waterproof

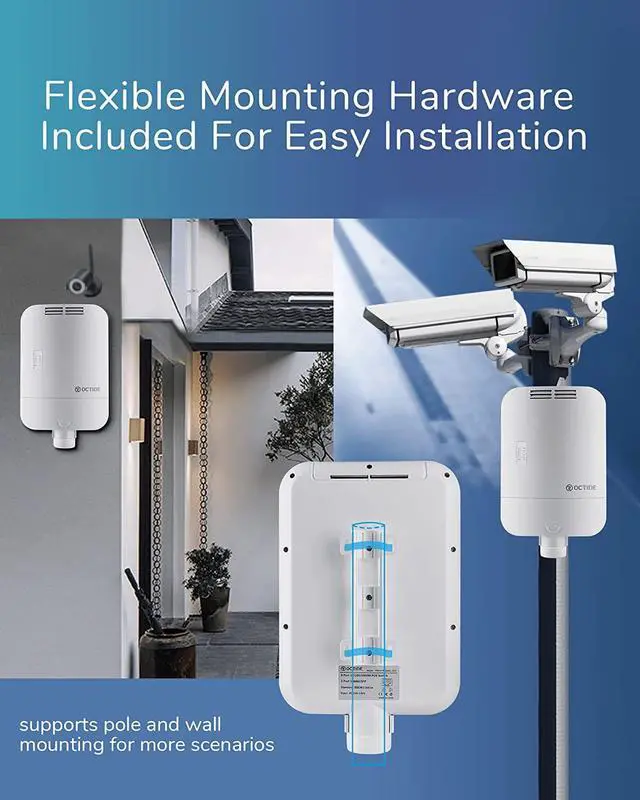

Qualified IP65 waterproof rating and durable PC/ABS casing, waterproof indoor and outdoor full-time, with included pole and wall mount accessories.
Port Isolation
When the transmission distance is between 100m-250m, Vlan mode is automatically turned on without any other operation. port 1-8 can't communicate with each other but connect with uplink port dependently.
outdoor POE Switch

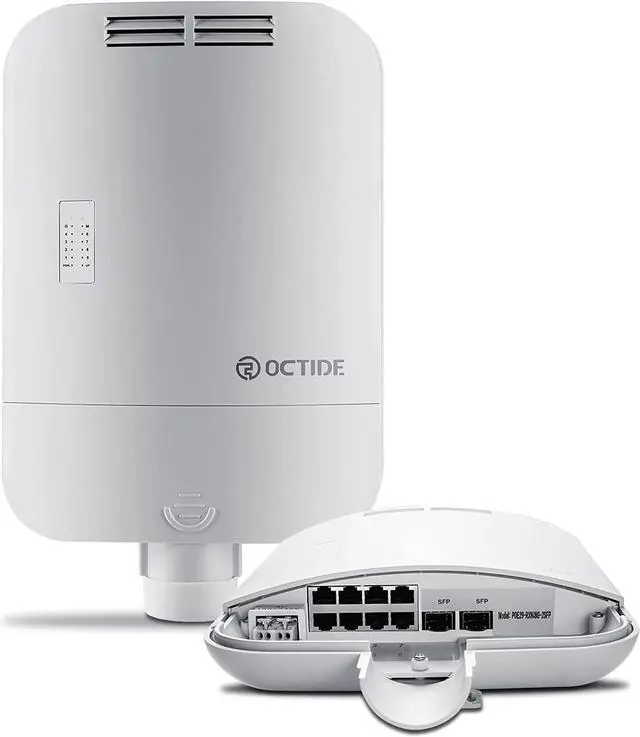

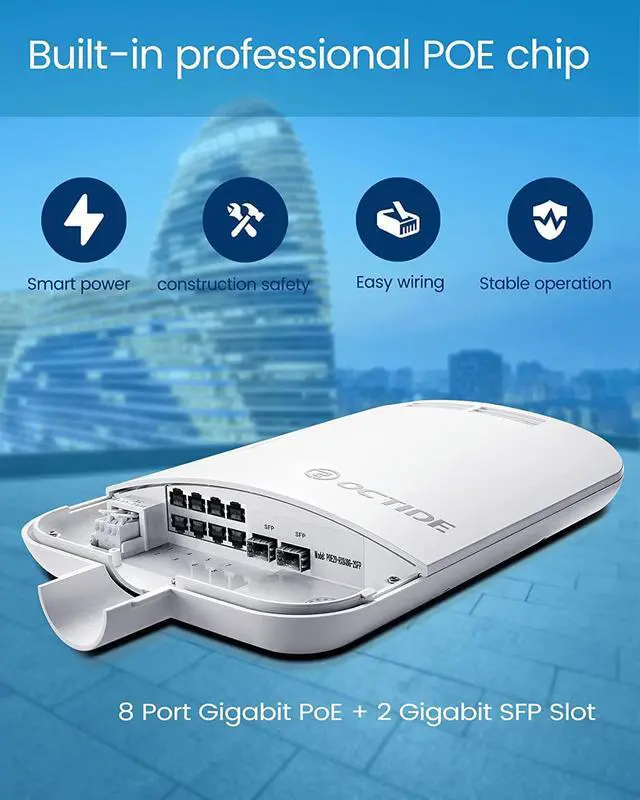

Octide All-In-One outdoor poe switch is a 10-port gigabit switch with 8-port PoE and 2 SFP. Designed for the PoE+ powered 30W PoE Powered Devices, such as IP Cameras, wireless APs, IP65 weatherproof enclosure makes it an ideal choice for outdoor CCTV application. It is made of durable, high-quality plastic.
Outdoor PoE Switch gives you a quick, easy way to deploy outdoor cameras over long distances while keeping your installation costs low. With 2 integrated SFP port, its perfect for fiber-based installation.
Technical
Ports 8x10/100/1000M RJ45 ports (PoE, Standard 48V power supply), 2x10/100/1000Mbps SFP, Available with 8-port IEEE 802.3 af/at standard PoE power supply.
Power supply Input voltage: AC 100-220V 50-60Hz, single-port
maximum power: 30W, standby
power: 4W, maximum power of the whole machine: 130W.
Performance Backplane bandwidth: 20Gbps, Packet
forwarding rate: 11.9M bps, Wire-speed forwarding on all ports, MAC
address table: 4K, Port
adaption: Support.
Support Standard and Protocol IEEE 802.3 /IEEE 802.3 u/IEEE 802.3 x/IEEE 802.3 af/IEEE 802.3 at.
Working/Storage Environment Working temperature: 0-40, storage
temperature: -30-70, working
humidity: <10-90%, storage
humidity: <5-90%
Octide outdoor poe switch is fully compatible with PoE cameras powered and data transmission. Supports 802.3 af/at standards, which allows loads up to 30W/port. against excessive overload, Has automatic protection mechanism.
IP65 Waterproof
Qualified IP65 waterproof rating and durable PC/ABS casing, waterproof indoor and outdoor full-time, with included pole and wall mount accessories.
Port Isolation
When the transmission distance is between 100m-250m, Vlan mode is automatically turned on without any other operation. port 1-8 can't communicate with each other but connect with uplink port dependently.
outdoor POE Switch
Octide All-In-One outdoor poe switch is a 10-port gigabit switch with 8-port PoE and 2 SFP. Designed for the PoE+ powered 30W PoE Powered Devices, such as IP Cameras, wireless APs, IP65 weatherproof enclosure makes it an ideal choice for outdoor CCTV application. It is made of durable, high-quality plastic.
Outdoor PoE Switch gives you a quick, easy way to deploy outdoor cameras over long distances while keeping your installation costs low. With 2 integrated SFP port, its perfect for fiber-based installation.
Technical
Details
Ports 8x10/100/1000M RJ45 ports (PoE, Standard 48V power supply), 2x10/100/1000Mbps SFP, Available with 8-port IEEE 802.3 af/at standard PoE power supply.
Power supply Input voltage: AC 100-220V 50-60Hz, single-port
maximum power: 30W, standby
power: 4W, maximum power of the whole machine: 130W.
Performance Backplane bandwidth: 20Gbps, Packet
forwarding rate: 11.9M bps, Wire-speed forwarding on all ports, MAC
address table: 4K, Port
adaption: Support.
Support Standard and Protocol IEEE 802.3 /IEEE 802.3 u/IEEE 802.3 x/IEEE 802.3 af/IEEE 802.3 at.
Working/Storage Environment Working temperature: 0-40, storage
temperature: -30-70, working
humidity: <10-90%, storage
humidity: <5-90%
