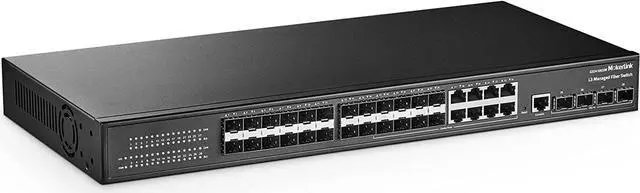

28 Port Gigabit Managed Fiber Switch, 24 Gigabit SFP, 8 GE Combo, 4x10G SFP+, 1 Console Port, L3 Smart Managed Rackmount, DHCP QoS Vlan IGMP and Static Routing
- High Performance: Includes 24 x 1 Gigabit SFP ports, 8 Gigabit Ethernet Combo Ports, 4 x 10 Gigabit SFP+ UpLink. Switching capacity is 128Gbps, 10Gbps UpLink, provides higher data transfer rates
- L3 Managed: Support L3 interface, IPv4/IPv6, ARP config; Static Routing, DHCP server/relay/snooping. Layer 3 management functions implemented at lower cost than routers.
- L2 Features: 4K 802.1Q Vlan, 16K mac table, L2-L4 packet filter, port security, port mirroring, flow rate limiting; QoS; STP/RSTP/MSTP spanning tree; IGMP V1/V2/V3 multicast; storm suppression; ring network protection; link aggregation, etc.
- Easy to Management: Support various management methods such as Web, CLI (console port, telnet, SSH), SNMP, RMON. The WEB interface has been professionally designed, beautiful, concise and easy to use, with rich CLI commands, suitable for general and professional network management.
- Widely Used: Support status query, port statistics, fault detection and reporting, easy to maintenance.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
High Density Gigabit SFP Port
The switch realizes 24 gigabit SFP port high density of 1U device, it is use for applications that require high data throughput.
10G Fiber Connectivity
Support Uplink 4*10G SFP+ ports, It use fiber cable to connect wired network segments, beyond the limitations of Ethernet cabling.
L3 Software Functions
This switch supports multiple L2/L3 features, including VLAN, SNMP, STP, OSPF, addressing enterprise access and aggregation service demands.

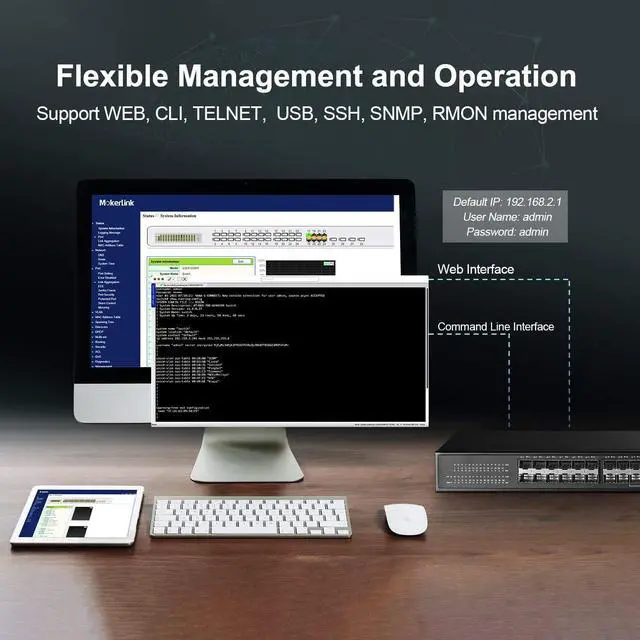

Smart Management Utilities
The switch has excellent management capabilities and supports multiple management interfaces, including the console port, USB port.
Support 19'' Rack Mount
It support rack-mount in 19'' cabinet, and includes all the necessary mounting hardware in the box.

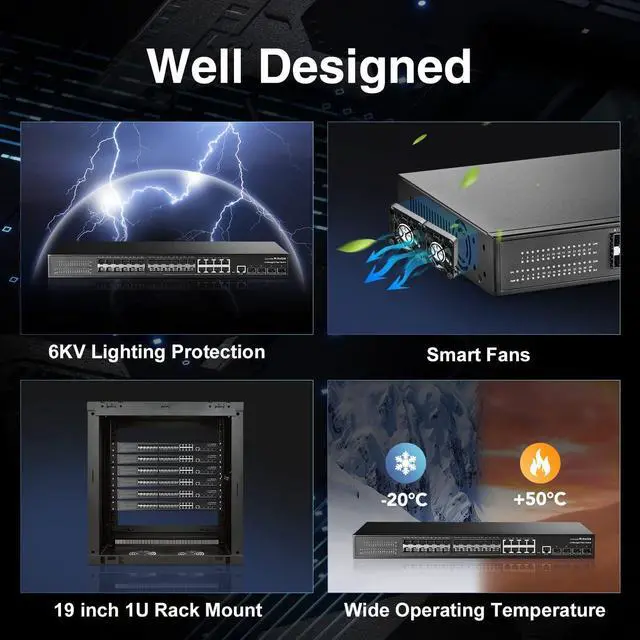

Lighting Protection
The switch fetures with 6KV surge protection can adapt to harsh outdoor environment and ensure the reliability of the uninterrupted network system.
Smart Fan
The adjustable fan speed from min 0 up to max 4000rpm of the radiator according your overload, It is perfect for heat-exhaust and ventilation.
Wide Operating Temperature
Supports working at ambient temperatures of -20 °C to +50 °C, improving system robustness, adapted to harsh environments.

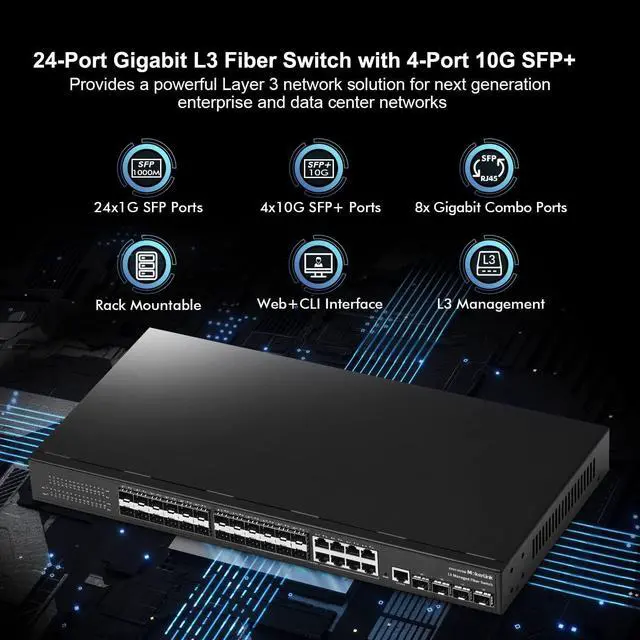

Product Name 24-Port Gigabit L3 Fiber Switch with 4-Port 10G SFP+
SKU G32410GSM
Ethernet Port 24* Gigabit SFP Ports + 8* Gigabit Ethernet Ports (Combo ) + 4* 10G SFP+ Ports + 1* Console Port
Bandwidth 128Gbps
Packet Buffer Memory 95.23M pps
Package cache 12Mbit
MAC Address 16K
Jumbo frame 12Kbytes
VLA
Ns 4096
Network Protocols IEEE 802.3, IEEE 802.3 i, IEEE 802.3 u, IEEE 802.3 ab, IEEE 802.3 z, IEEE 802.3 ae, IEEE 802.3 az, IEEE 802.3 ad, IEEE 802.3 x, IEEE 802.1 ab, IEEE 802.1 p, IEEE 802.1 q, IEEE 802.1 x, IEEE 802.1 d, IEEE 802.1 s, IEEE 802.1 w
Fieber Media Multi-mode Fiber: 50/ 12562.5 /125100/140um, Single-mode
Fiber: 8/ 1258.7 /1259/12510/125um
Working Environment Operating temperature: -20~50°C
Storage temperature: -40~70°C
Operating Humidity: 10%~90%, No condensation
Storage Humidity: 5%~90%, No condensation
Working height: Up to 10, 000 feet
Storage height: Up to 10, 000 feet
Indicator Light PWR (Power indicator), SYS (System lights), Link/ACT(Link light/data light)
Product Information Product Dimensions: 440*205*44mm, Package
Dimensions: 500*290*85mm, Product N.
W: 3.06KG, Product G.
W: 3.63KG
Voltage Input Voltage: AC100-240V/50-60Hz, Power supply: 12V/8A
Software Function L3/L2 management, DHCP, QoS, ACL, SNMP V1/V2/V3, IGMP Snooping, STP/RSTP/MSTP (ERPS), IPV4/IPV6, VLAN, Port binding, DHCP Snooping, IP source, DAI protection
The switch realizes 24 gigabit SFP port high density of 1U device, it is use for applications that require high data throughput.
10G Fiber Connectivity
Support Uplink 4*10G SFP+ ports, It use fiber cable to connect wired network segments, beyond the limitations of Ethernet cabling.
L3 Software Functions
This switch supports multiple L2/L3 features, including VLAN, SNMP, STP, OSPF, addressing enterprise access and aggregation service demands.
Smart Management Utilities
The switch has excellent management capabilities and supports multiple management interfaces, including the console port, USB port.
Support 19'' Rack Mount
It support rack-mount in 19'' cabinet, and includes all the necessary mounting hardware in the box.
Lighting Protection
The switch fetures with 6KV surge protection can adapt to harsh outdoor environment and ensure the reliability of the uninterrupted network system.
Smart Fan
The adjustable fan speed from min 0 up to max 4000rpm of the radiator according your overload, It is perfect for heat-exhaust and ventilation.
Wide Operating Temperature
Supports working at ambient temperatures of -20 °C to +50 °C, improving system robustness, adapted to harsh environments.
Product Name 24-Port Gigabit L3 Fiber Switch with 4-Port 10G SFP+
SKU G32410GSM
Ethernet Port 24* Gigabit SFP Ports + 8* Gigabit Ethernet Ports (Combo ) + 4* 10G SFP+ Ports + 1* Console Port
Bandwidth 128Gbps
Packet Buffer Memory 95.23M pps
Package cache 12Mbit
MAC Address 16K
Jumbo frame 12Kbytes
VLA
Ns 4096
Network Protocols IEEE 802.3, IEEE 802.3 i, IEEE 802.3 u, IEEE 802.3 ab, IEEE 802.3 z, IEEE 802.3 ae, IEEE 802.3 az, IEEE 802.3 ad, IEEE 802.3 x, IEEE 802.1 ab, IEEE 802.1 p, IEEE 802.1 q, IEEE 802.1 x, IEEE 802.1 d, IEEE 802.1 s, IEEE 802.1 w
Fieber Media Multi-mode Fiber: 50/ 12562.5 /125100/140um, Single-mode
Fiber: 8/ 1258.7 /1259/12510/125um
Working Environment Operating temperature: -20~50°C
Storage temperature: -40~70°C
Operating Humidity: 10%~90%, No condensation
Storage Humidity: 5%~90%, No condensation
Working height: Up to 10, 000 feet
Storage height: Up to 10, 000 feet
Indicator Light PWR (Power indicator), SYS (System lights), Link/ACT(Link light/data light)
Product Information Product Dimensions: 440*205*44mm, Package
Dimensions: 500*290*85mm, Product N.
W: 3.06KG, Product G.
W: 3.63KG
Voltage Input Voltage: AC100-240V/50-60Hz, Power supply: 12V/8A
Software Function L3/L2 management, DHCP, QoS, ACL, SNMP V1/V2/V3, IGMP Snooping, STP/RSTP/MSTP (ERPS), IPV4/IPV6, VLAN, Port binding, DHCP Snooping, IP source, DAI protection
