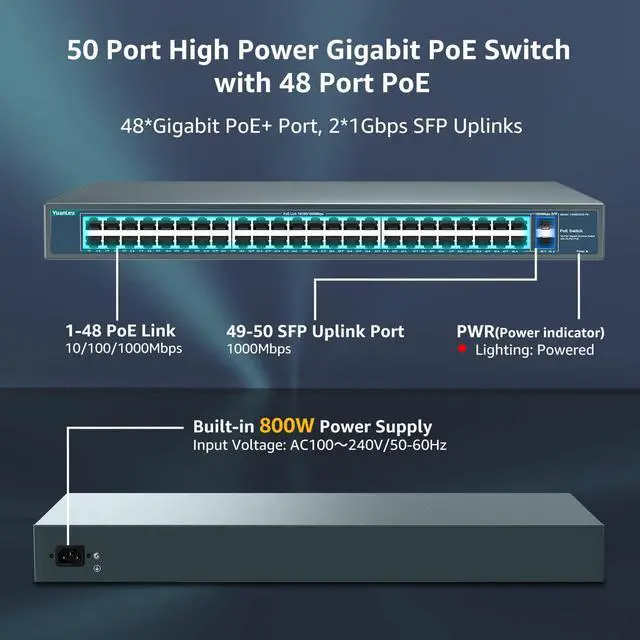

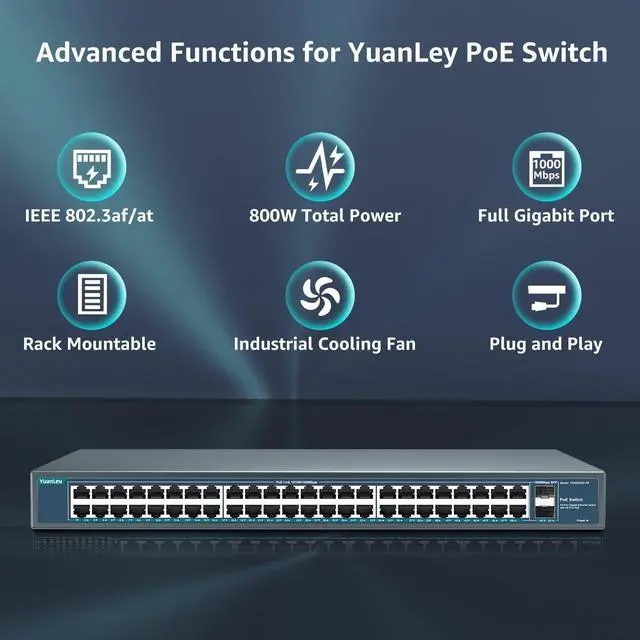

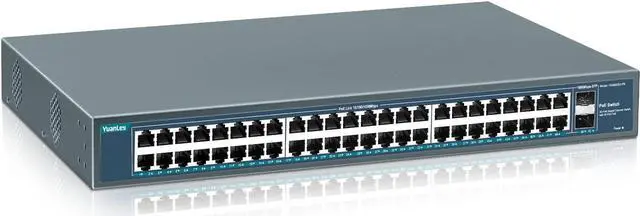

48 Port Gigabit PoE Switch Unmanaged with 2 1000Mbps SFP Uplink, 50 Port 802.3af/at 800W High Power PoE+ Network Switch, Metal Rackmount Power Over Ethernet Switch
- Includes 48x10/100/1000Mbps PoE+ RJ45 Ports, 2 Gigabit UpLink SFP Port. SFP ports could be connected different devices such as routers, NVRs, etc. Widely used in IP cameras, Wireless Access Point, IP Phone, Computer Networks, etc.
- Build-in 800W high PoE output power, each PoE port can automatically detect and recognize IEEE 802.3af/at and 15.4w/30w PoE Devices. Switching capacity up to 56Gbps, with better data performance. 8K Mac address table, more devices can be connected and suitable for large networks.

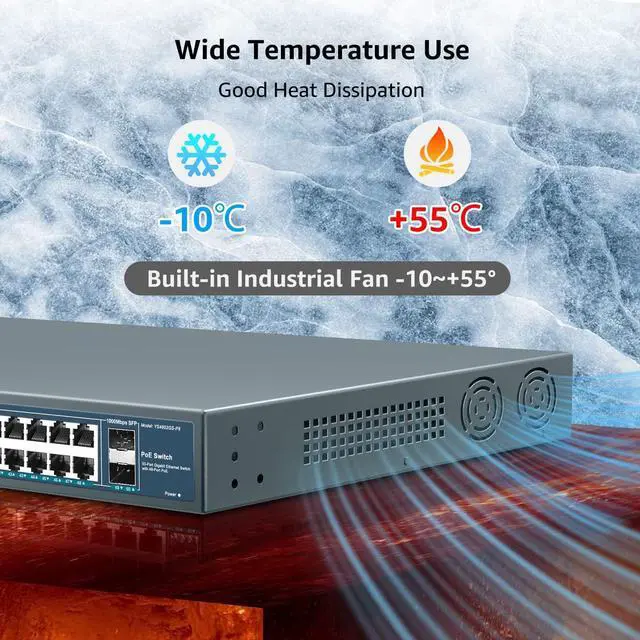

- 4KV lightning protection design protects the product and equipment from damage even in bad weather. With industrial grade fan and metal housing, it can work in a wide temperature range of -10°C to +55°C.

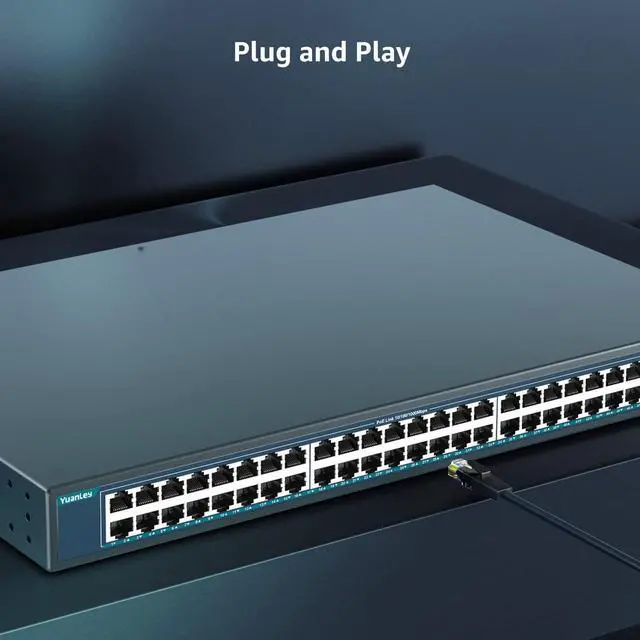

- Automatically detect devices, support Plug and Play, just plug in the power cord and network cable, there is no configuration is needed. Umanaged PoE ehternet switch makes your work easier and more stable. Support desktop and 19 inch rack mount installation. Suitable for home, office
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Product
Model YS4802GS-P8
PoE Port 48*10/100/1000Mbps PoE Port
PoE Standard IEEE 802.3 af/at; 15.4W /30W
Total PWR / Input Voltage 800W (100-240V)
Ethernet Port Feature 10/100/1000Base-T (X) automatic detection, full/half Duplex MDI/MDI-X adaptive

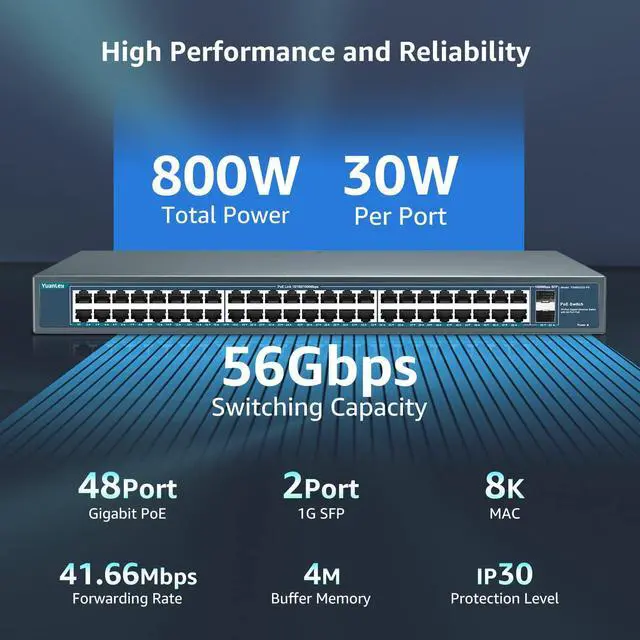

Switching Capacity 56Gbps (non-blocking)
Forwarding Rate 41.66M pps
MAC 8K
Buffer Memory 4M
Network Protocol IEEE 802.3 10BASE-T; IEEE 802.3 i 10Base-T; IEEE 802.3 u 100Base-TX; IEEE 802.3 ab 1000Base-T; IEEE 802.3 z 1000base-X; IEEE 802.3 u 100Base-FX; IEEE 802.3 x.
Power Supply Built in switching power supply, AC100~240V 50-60Hz

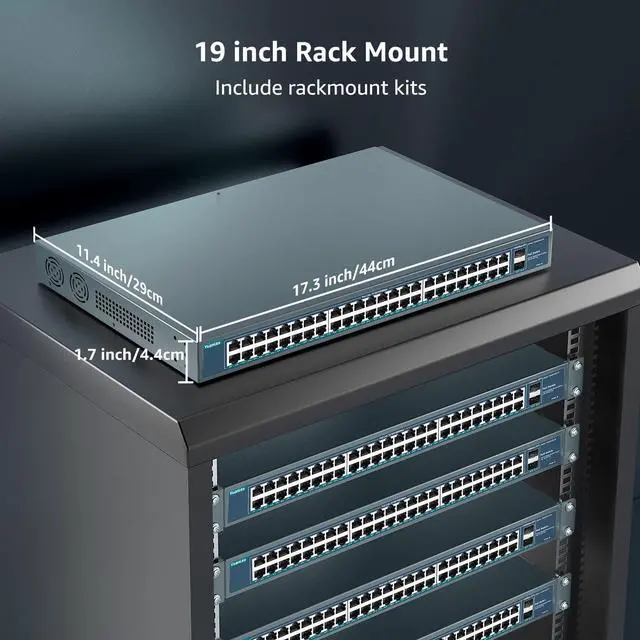

Dimension (inch) 17.3 x 11 x 1.7 in
Weight (lbs) 9 lb
Protection IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge
IEC61000-4-5(Lightning protection/Surge): Power: CM±4kV/DM±2kV; Port: ±4kV
Installation Method Desktop type, 19-inch 1U cabinet installation
Operation TEMP / Humidity -10~+55°C: 5%~90% RH non condensing
Specifications
Model YS4802GS-P8
PoE Port 48*10/100/1000Mbps PoE Port
PoE Standard IEEE 802.3 af/at; 15.4W /30W
Total PWR / Input Voltage 800W (100-240V)
Ethernet Port Feature 10/100/1000Base-T (X) automatic detection, full/half Duplex MDI/MDI-X adaptive
Switching Capacity 56Gbps (non-blocking)
Forwarding Rate 41.66M pps
MAC 8K
Buffer Memory 4M
Network Protocol IEEE 802.3 10BASE-T; IEEE 802.3 i 10Base-T; IEEE 802.3 u 100Base-TX; IEEE 802.3 ab 1000Base-T; IEEE 802.3 z 1000base-X; IEEE 802.3 u 100Base-FX; IEEE 802.3 x.
Power Supply Built in switching power supply, AC100~240V 50-60Hz
Dimension (inch) 17.3 x 11 x 1.7 in
Weight (lbs) 9 lb
Protection IEC61000-4-2 (ESD): ±8kV contact discharge, ±15kV air discharge
IEC61000-4-5(Lightning protection/Surge): Power: CM±4kV/DM±2kV; Port: ±4kV
Installation Method Desktop type, 19-inch 1U cabinet installation
Operation TEMP / Humidity -10~+55°C: 5%~90% RH non condensing
