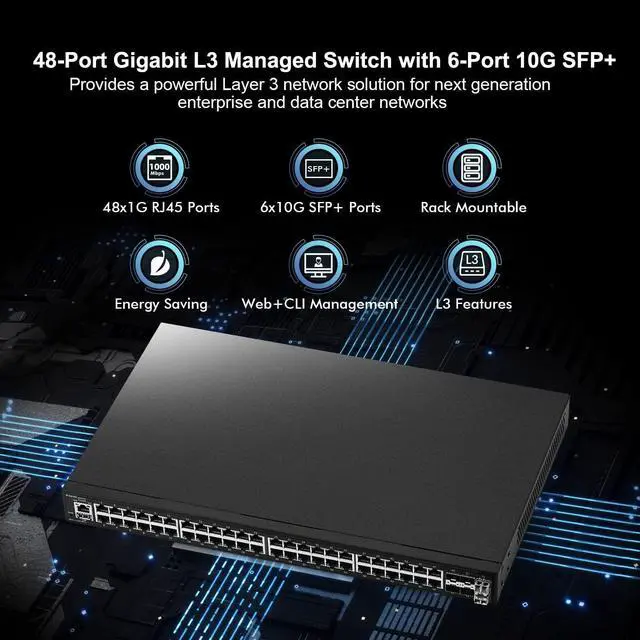

48 Port Gigabit Managed Switch, 48 Port GE, 6x10G SFP+, 1 Console Port, 1 USB Port, L3 Smart Web Managed, Rackmount, DHCP QoS Vlan IGMP and Static Routing
- High Performance: Includes 48 x 1 Gigabit ethernet ports,6 x 10 Gigabit SFP+ UpLink. Switching capacity is 216Gbps, 160.7Mpps Packet forwarding rate, 10Gbps UpLink, provides higher data transfer rates
- L3 Managed: Support L3 interface, IPv4/IPv6, ARP config; Static Routing, DHCP server/relay/snooping. Layer 3 management functions implemented at lower cost than routers.
- L2 Features: 4K 802.1Q Vlan, 32K mac table, L2-L4 packet filter, port security, port mirroring, flow rate limiting; QoS; STP/RSTP/MSTP spanning tree; IGMP V1/V2/V3 multicast; storm suppression; ring network protection; link aggregation, etc.

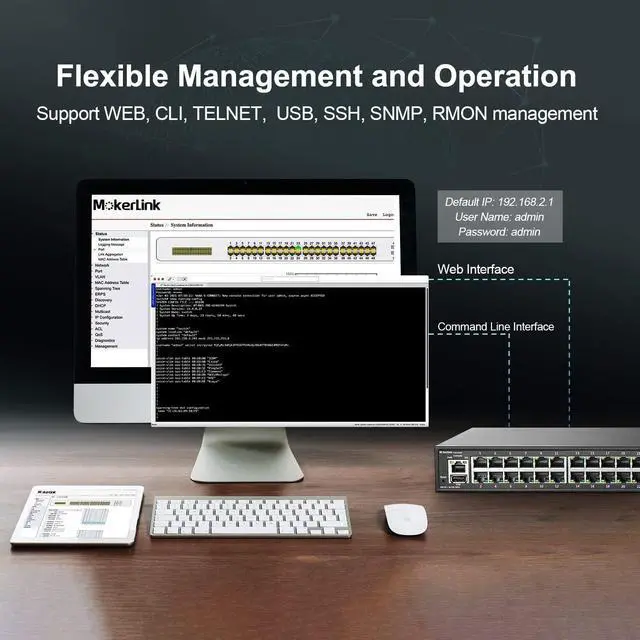

- Easy to Management: Support various management methods such as Web, CLI (console port, telnet, SSH), SNMP, RMON. The WEB interface has been professionally designed, beautiful, concise and easy to use, with rich CLI commands, suitable for general and professional network management.
- Widely Used: Support status query, port statistics, fault detection and reporting, easy to maintenance.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

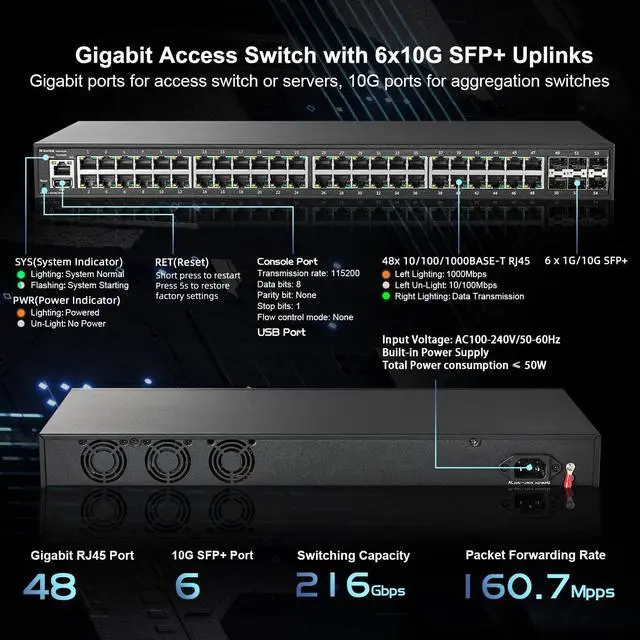

Ethernet 48 * 10/100/1000Mbps RJ45 Port + 6 * 10G SFP Port + 1 * RJ45 Console Port + 1 * USB Port
Bandwidth 216Gbps
Pack forward rate 160.7M pps
MAC address 32K
Package cache 16M
Network Protocol IEEE 802.3, IEEE 802.3 i, IEEE 802.3 u, IEEE 802.3 ab, IEEE 802.3 z, IEEE 802.3 ae, IEEE 802.3 az, IEEE 802.3 ad, IEEE 802.3 x, IEEE 802.1 ab, IEEE 802.1 p, IEEE 802.1 q, IEEE 802.1 x, IEEE 802.1 d, IEEE 802.1 s, IEEE 802.1 w
Vlan 4096
Network Protocols EEE 802.3, IEEE 802.3 i, IEEE 802.3 u, IEEE 802.3 ab, IEEE 802.3 z, IEEE 802.3 ae, IEEE 802.3 az, IEEE 802.3 ad, IEEE 802.3 x, IEEE 802.1 ab, IEEE 802.1 p, IEEE 802.1 q, IEEE 802.1 x, IEEE 802.1 d, IEEE 802.1 s, IEEE 802.1 w
Fiber Medium Multi-mode Fiber: 50/ 12562.5 /125100/140um, Single-mode
Fiber: 8/ 1258.7 /1259/12510/125um
Working Environment Working Temperature: -10~50°C,, Storage
Temperature: -40~70°
C Working Humidity: 10%~90%, non-condensing, Storage
Temperature: 5%~90%, non-condensing
Indicator PWR, SYS, Link/ACT LED
Software Features Layer 3 and Layer 2
Structure Size Product Dimensions: 440 mm x 284 mm x 44 mm, Product
Weight: 3.8 kg
Power Voltage 220V/AC
Packing List Switch 1 PC, Power cord 1 PC, User manual 1 PC
Bandwidth 216Gbps
Pack forward rate 160.7M pps
MAC address 32K
Package cache 16M
Network Protocol IEEE 802.3, IEEE 802.3 i, IEEE 802.3 u, IEEE 802.3 ab, IEEE 802.3 z, IEEE 802.3 ae, IEEE 802.3 az, IEEE 802.3 ad, IEEE 802.3 x, IEEE 802.1 ab, IEEE 802.1 p, IEEE 802.1 q, IEEE 802.1 x, IEEE 802.1 d, IEEE 802.1 s, IEEE 802.1 w
Vlan 4096
Network Protocols EEE 802.3, IEEE 802.3 i, IEEE 802.3 u, IEEE 802.3 ab, IEEE 802.3 z, IEEE 802.3 ae, IEEE 802.3 az, IEEE 802.3 ad, IEEE 802.3 x, IEEE 802.1 ab, IEEE 802.1 p, IEEE 802.1 q, IEEE 802.1 x, IEEE 802.1 d, IEEE 802.1 s, IEEE 802.1 w
Fiber Medium Multi-mode Fiber: 50/ 12562.5 /125100/140um, Single-mode
Fiber: 8/ 1258.7 /1259/12510/125um
Working Environment Working Temperature: -10~50°C,, Storage
Temperature: -40~70°
C Working Humidity: 10%~90%, non-condensing, Storage
Temperature: 5%~90%, non-condensing
Indicator PWR, SYS, Link/ACT LED
Software Features Layer 3 and Layer 2
Structure Size Product Dimensions: 440 mm x 284 mm x 44 mm, Product
Weight: 3.8 kg
Power Voltage 220V/AC
Packing List Switch 1 PC, Power cord 1 PC, User manual 1 PC
