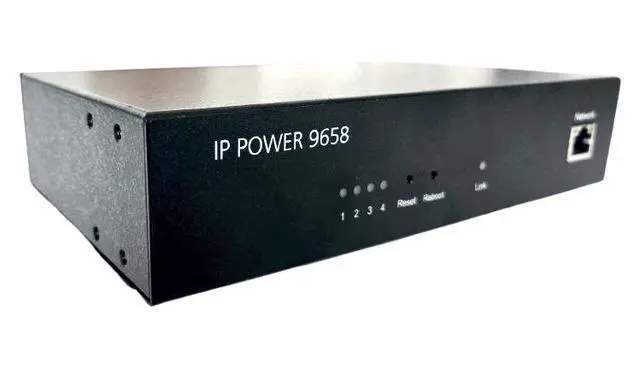

Aviosys IP9658T 9658 4 Port Power Control Distribution Unit 4 Port Network AC Web Power Switch Controller PING IP 9258

The 9658T is an upgrade to the highly popular IP9258T/TP. Auto-Ping is included with this model. (Power Cord is NOT included and is sold separately.You will require PC Type Power 15A)

FEATURES

1. Support HTTP, HTTPS/SSL, IPV4 IPV6, mDNS, DHCP, SNMP v1 v2, SMTP, NTP, TLS.
2. Support CNT Cloud Connect,Telnet

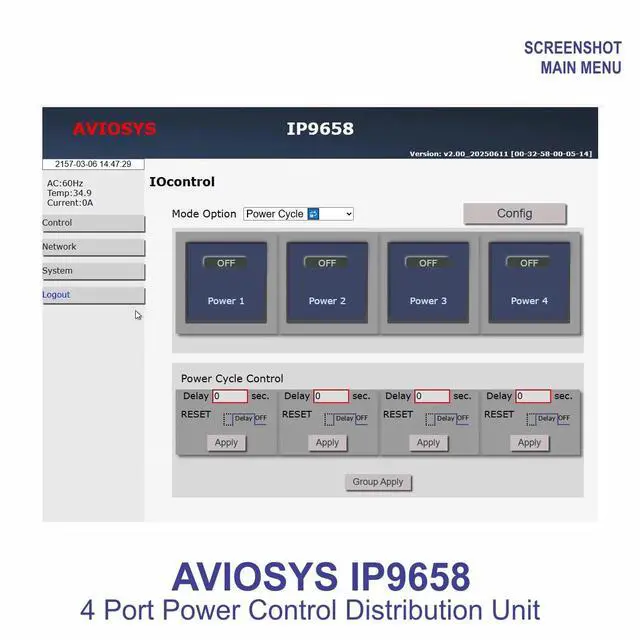

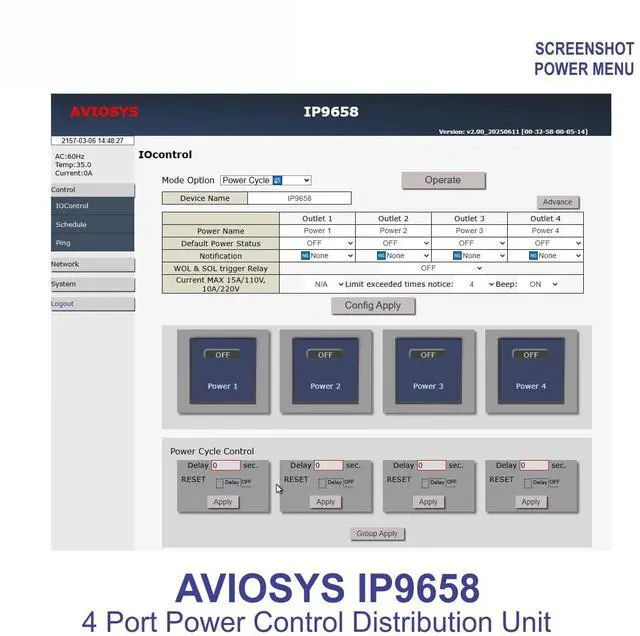

3. HTTP API. Command your 9658 through a friendly web interface, via a curl, from a command line, or from your own application via an HTTP get post API (CGI).
4. Wake on LAN. Allows you to remotely wake up the network devices from shutdown via the Wake on LAN (WOL) service. you can enable the 9658 to the WOL service and wake them up via the MAC address or the connection list. Before applying the WOL service, make sure the target device supports WOL.

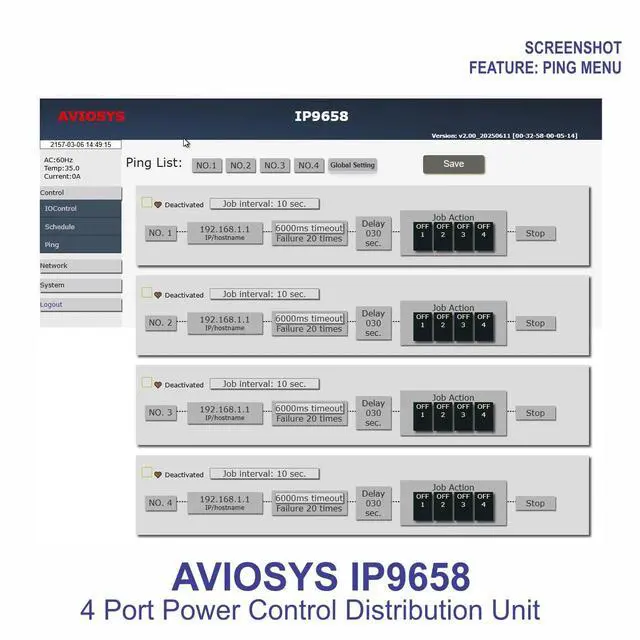

5. PING. Ping function provides 2 IP with AND OR logic combination. When the specified IP fails to respond to PING, the 9658 can perform a user-defined power action. The action can be on any selected outlet for power-cycle, shutdown on LAN/wake on LAN and email notification.
6. SYSLOG

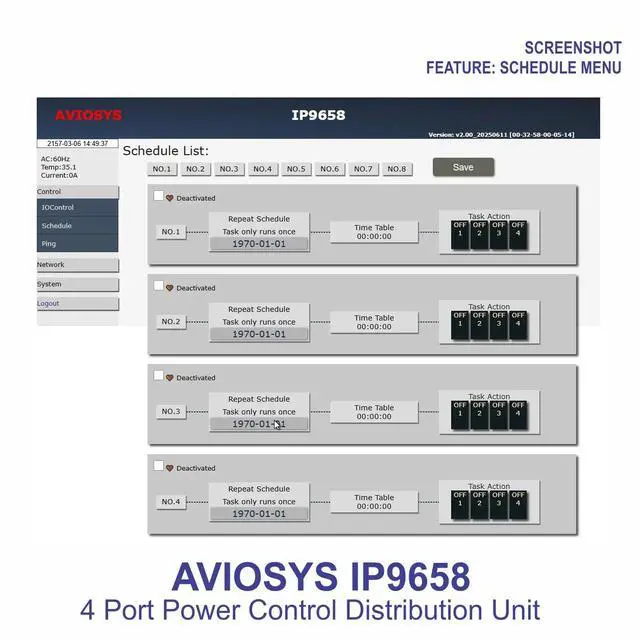

7. SCHEDULING. Task Scheduler allows you to schedule and run actions with your pre-defined timetable. Up to 8 timetables by day or week or once can be set.

SPECIFICATIONS

1. Dimensions: 195 x 116 x 45mm | 7.6"x4.5"x1.75" (L/W/H)
2. Power input: 100~240VAC
3. Maximum current per outlet: 10A
4. Maximum current total 4 outlets:
5. 15A 100V
6. 10A 240V
7. Interface:
8. 4 LED indicator lights
9. HW Reset button
10. Operating temperature: 0~50°C (32°F~ 122°F)
11. Network: RJ-45 10/100Mb Ethernet port
