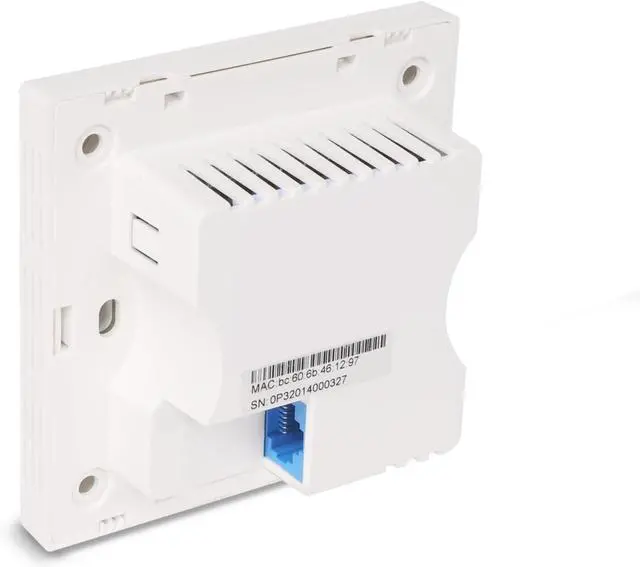

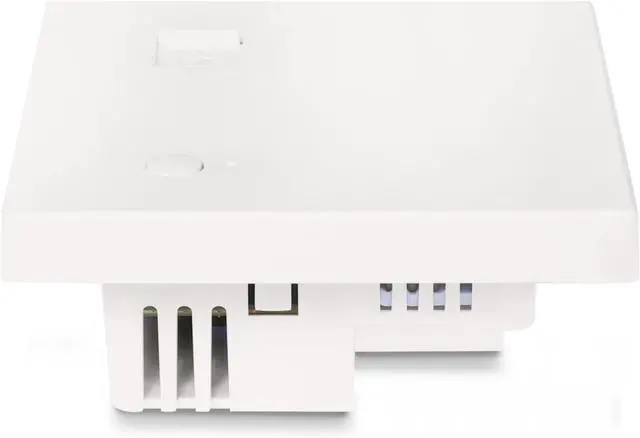

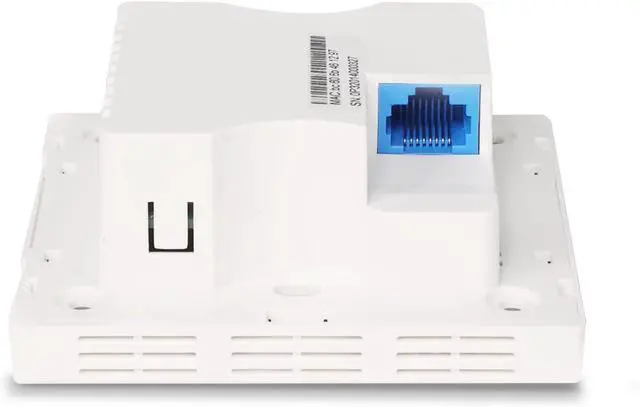

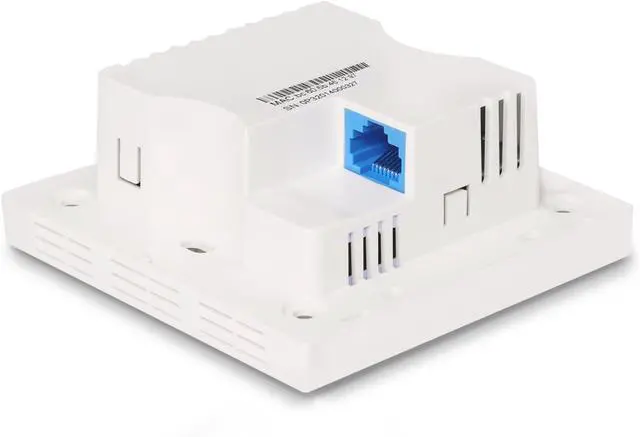

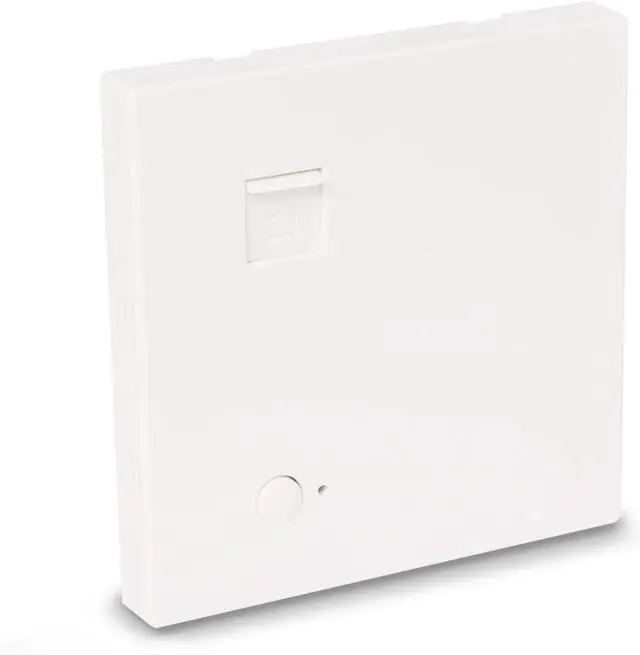

QSFPTEK in-Wall Intelligent WiFi5 AP, 2 Gigabit Ethernet Ports, 1 LED Button, Built-in MIMO Antenna, 802.11ac Wave2, 1267Mbps Wireless, POE Power Supply
- Wireless Solutions: Built with high-performance wireless chipset, and supports 802.11a/b/g/n/ac/wave2/ax and other wireless protocols, with high throughput and good stability.The 2.4G and 5G devices can support 1267Mbps air interface bandwidth to satisfy up to 40 users with service access, with strong concurrency capability.
- Supports Wireless Load Balancing: In high-density access scenarios, can achieve reasonable allocation of terminals within a single AP through the 2.4GHz and 5GHz spectrum while ensuring balanced trac distribution among multiple APs to avoid congestion,which enables the AP to access more end users, and provides the better Internet service.
- Comprehensive Security Features: Supports WEP/WPA/WAP2/WPA3 access modes, wireless IPS/IDS, the layer-2 user isolation, and centralized ACL control. Supports docking with QAC-B16 wireless AC, provides rich and practical diversied authentication functions for computers,mobile phones, tablets and other terminals, to facilitate
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Item:QAP-102
Mounting method:In-wall
Dimensions (HxWxD):86×86×36mm
Ethernet port: 1 GE WAN port (POE supported); 1 GE LAN (dust-proof)
PoE power supply:POE input
Antenna type:Built-in omnidirectional
Antenna gain:2.4G: 2.5dBi
5G: 2.5dBi
Operating frequency bands: 2.4GHz and 5GHz
Wi-Fi data rate: 2.4G:2*2 11n 400Mbps; 5G-1:2*2 11ac 867Mbps
Maximum transmit power: 2.4 GHz: 18 dBm (combined power)
5 GHz : 18 dBm (combined power)
The actual transmit power depends on
2.4 GHz: 18 dBm (combined power)
local laws and regulations.
Modulation:
OFDM : BPSK@6/9Mbps,QPSK@12/18Mbps, 16-QAM@24Mbps,64-QAM@48/54Mbps DSSS: DBPSK@1Mbps, DQPSK@2Mbps, [email protected]/11Mbps MIMO-OFDM (11n): MCS 0-15
MIMO-OFDM (11ac): MCS 0-9
Modulation mode11b:
DSS:[email protected]/11Mbps,DQPSK@2Mbps,
DBPSK@1Mbps 11a/g:
OFDM:64QAM@48/54Mbps,16QAM@24Mbps,QPSK@12/18Mbps, BPSK@6/9Mbps
11n: MIMO-OFDM: BPSK,QPSK,16QAM,64QAM
11ac: MIMO-OFDM: BPSK,QPSK,16QAM,64QAM,256QAM
Power adjustment: Automatic
Reset: Supported
Status LED: on / Blinking/ error
Operating temperature/ Storage temperature: 0ºC~50ºC
Operating humidity:10%~95% (non-condensation)
Protection degree: IP41
Power consumption:<10W
MTBF:>250000H
