$69.87
Meet Your Seller

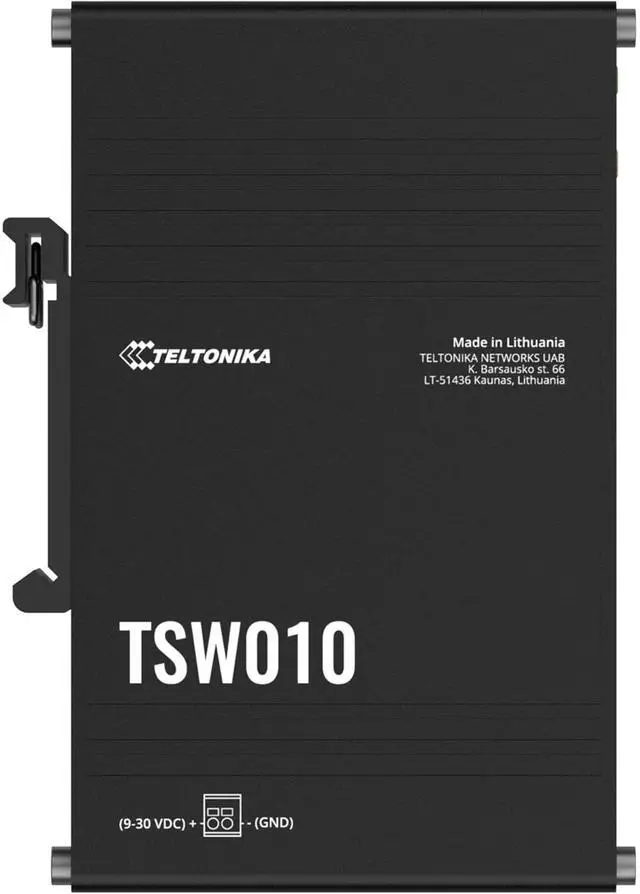

Teltonika TSW010000000 DIN Rail Switch 5x10/100Mbps Ports New
- Ethernet
- Ports: 5 x RJ45, 10/100 Mbps, supports auto MDI/MDIX
- Standards: IEEE 802.3i, 802.3u, 802.3x, 802.3az
- Non-blocking Bandwidth: 1 Gbps
- MAC Table Size: 2K entries
- Jumbo Frames: 2048 bytes
- Power
- Connector: 2-pin industrial DC
- Input Voltage: 9-30 VDC
- PoE (Passive): Powered through ETH1 (9-30 VDC)
- Consumption: Idle 0.3W / Max 0.9W
- Physical Interfaces
- Ethernet: 5 x RJ45, 10/100 Mbps
- LEDs: 1 Power, 10 ETH status
- Power: 2-pin industrial DC
- Physical Specifications
- Material: Aluminum housing
- Dimensions: 113.1 x 27.4 x 80.5 mm
- Weight: 146.5 g
- Mounting: DIN rail, wall, flat surface (requires kit)
- Operating Environment
- Temperature: -40°C to 75°C
- Humidity: 5% to 95%, non-condensing
- Ingress Protection: IP30
- Certifications
- Regulatory: CE, UKCA, EAC, FCC, IC, CB, RCM, CITC, ANRT, REACH, RoHS, WEEE
- Safety: EN IEC 62368-1:2020 + A11:2020, AS/NZS 62368.1:2022, IEC 62368-1:2018
- EMC Compliance: EN 55032:2015, EN 55035:2017, EN 61000-4 series
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Ethernet
Ports: 5 x RJ45, 10/100 Mbps, supports auto MDI/MDIX
Standards: IEEE 802.3 i, 802.3 u, 802.3 x, 802.3 az
Non-blocking Bandwidth: 1 Gbps
MAC Table Size: 2K entries
Jumbo Frames: 2048 bytes
Power
Connector: 2-pin industrial DC
Input Voltage: 9-30 VDC
PoE (Passive): Powered through ETH1 (9-30 VDC)
Consumption: Idle 0.3W / Max 0.9W
Physical Interfaces
Ethernet: 5 x RJ45, 10/100 Mbps
LEDs: 1 Power, 10 ETH status
Power: 2-pin industrial DC
Physical
Material: Aluminum housing
Dimensions: 113.1 x 27.4 x 80.5 mm
Weight: 146.5 g
Mounting: DIN rail, wall, flat surface (requires kit)
Operating Environment
Temperature: -40°C to 75°C
Humidity: 5% to 95%, non-condensing
Ingress Protection: IP30
Certifications
Regulatory: CE, UKCA, EAC, FCC, IC, CB, RCM, CITC, ANRT, REACH, RoHS, WEEE
Safety: EN IEC 62368- 1:2020 + A 11:2020, AS/NZS
62368.1: 2022, IEC 62368- 1:2018
EMC Compliance: EN 55032:2015, EN 55035:2017, EN 61000-4 series
Ports: 5 x RJ45, 10/100 Mbps, supports auto MDI/MDIX
Standards: IEEE 802.3 i, 802.3 u, 802.3 x, 802.3 az
Non-blocking Bandwidth: 1 Gbps
MAC Table Size: 2K entries
Jumbo Frames: 2048 bytes
Power
Connector: 2-pin industrial DC
Input Voltage: 9-30 VDC
PoE (Passive): Powered through ETH1 (9-30 VDC)
Consumption: Idle 0.3W / Max 0.9W
Physical Interfaces
Ethernet: 5 x RJ45, 10/100 Mbps
LEDs: 1 Power, 10 ETH status
Power: 2-pin industrial DC
Physical
Specifications
Material: Aluminum housing
Dimensions: 113.1 x 27.4 x 80.5 mm
Weight: 146.5 g
Mounting: DIN rail, wall, flat surface (requires kit)
Operating Environment
Temperature: -40°C to 75°C
Humidity: 5% to 95%, non-condensing
Ingress Protection: IP30
Certifications
Regulatory: CE, UKCA, EAC, FCC, IC, CB, RCM, CITC, ANRT, REACH, RoHS, WEEE
Safety: EN IEC 62368- 1:2020 + A 11:2020, AS/NZS
62368.1: 2022, IEC 62368- 1:2018
EMC Compliance: EN 55032:2015, EN 55035:2017, EN 61000-4 series
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
- CONTACT
Return Policies
- Return for refund within: 30 days
- Return for replacement within: 30 days
- This item is covered by itamtech Return Policy
