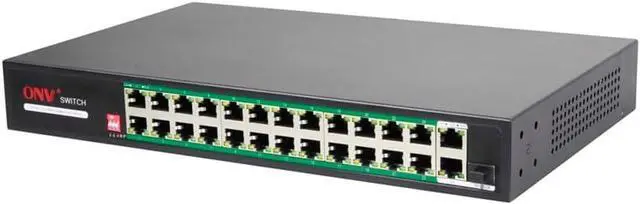

Unmanaged 26-Port Gigabit Uplink AI PoE Switch, Support Watchdog Function Wireless APs - IEEE802.3af/at, Uplink RJ45 Port, Ethernet Network Switch for IP Cameras,VoIP Phones, Wide Temperature Range
- Innovative FunctionThe smart PoE switch was long-distance transmission and VLAN mode (E): When the switch status is ON (default OFF), Port 1-24 physical VLAN isolation is enabled,The use of the existing twisted pair can break through the transmission limit of 100m of twisted pairs, and the transmission distance can reach 250m.AI self-healing mode (D): When the switch status is ON (default OFF), port 1-24 can support the watchdog function and automatically detects the data communication status in real-time.
- 26Port PoE Switch & Watchdog FunctionThe smart PoE switch can support the PoE watchdog function. When the port communication failure corresponds to the port POE will automatically restart, self-recover network communication, reducing manual intervention and maintenance. As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable.
- Smart PoE Power Supply & Fl
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Model ONV-H1024PLD
Interface Characteristics
Fixed Port 24*10/100Base-TX PoE ports (Data/Power)
2*10/100/1000Base-T uplink RJ45 ports (Data)
1*1000Base-X SFP fiber port (Data) (combo port)
Ethernet Port: Port 1-24 support 10/100Base-TX, port 25-26 support 10/100/1000Base-T(X) automatic detection, full/half Duplex MDI/MDI-X adaptive
Twisted Pair Transmission: 10BASE-T:Cat5 UTP(250 meter)
100BASE-TX:Cat5 or later UTP(100 meter)
100BASE-T:Cat5e or later UTP(100 meter)
SFP Slot Port: Gigabit SFP optical fiber interface, default not matching optical modules (optional order single-mode / multi-mode, single fiber / dual fiber optical module. LC)
Optical Cable/ Distance: Multi mode: 850nm /0 ~ 500M, single mode: 1310nm /0 ~ 40KM, 1550nm /0 ~ 120KM.
Functional Switch (E, D, P) Three levels, the default state is "OFF", the function description is as follows after "ON" is turned on
E is the "ON" state, port 9-16/17-24 can support long-distance transmission 10M/250m and VLAN transmission mode; when "OFF", 100 meters transmission.
D is the "ON" state, port 1-16/1-24 can support AI self-healing mode; when "OFF", no communication self-healing function.
P is the "ON" state, POE outputs total power and priority indication mode; when "OFF", no power indication function.
Chip Parameter
Network Protocol: IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX
IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IEEE802.3x
Forwarding Mode: Store and Forward(Full Wire Speed)
Switching Capacity: 14.8Gbps(non-blocking)
Forwarding: 6.55Mpps
Rate@64byte:
MAC: 16K
Buffer Memory: 4M
Jumbo Frame: 10K
LED Indicator: Power: PWR (green), Network : link (yellow), PoE :PoE (green) .rate:1000M (green)
PoE & Power Supply
PoE Port: Port 1 to 24 IEEE802.3af/at @ POE
Power Supply Pin: Default 1/2 (+), 3/6 (-)
Max Power Per Port: 30W, IEEE802.3af/at
Total PWR / Input Voltage: 250W (100-240V)
Power Consumption: Standby<20W,Full load<250W
Power Supply: Built-in switching power supply, AC 100 ~ 240V 50-60Hz 4.1A
Interface Characteristics
Fixed Port 24*10/100Base-TX PoE ports (Data/Power)
2*10/100/1000Base-T uplink RJ45 ports (Data)
1*1000Base-X SFP fiber port (Data) (combo port)
Ethernet Port: Port 1-24 support 10/100Base-TX, port 25-26 support 10/100/1000Base-T(X) automatic detection, full/half Duplex MDI/MDI-X adaptive
Twisted Pair Transmission: 10BASE-T:Cat5 UTP(250 meter)
100BASE-TX:Cat5 or later UTP(100 meter)
100BASE-T:Cat5e or later UTP(100 meter)
SFP Slot Port: Gigabit SFP optical fiber interface, default not matching optical modules (optional order single-mode / multi-mode, single fiber / dual fiber optical module. LC)
Optical Cable/ Distance: Multi mode: 850nm /0 ~ 500M, single mode: 1310nm /0 ~ 40KM, 1550nm /0 ~ 120KM.
Functional Switch (E, D, P) Three levels, the default state is "OFF", the function description is as follows after "ON" is turned on
E is the "ON" state, port 9-16/17-24 can support long-distance transmission 10M/250m and VLAN transmission mode; when "OFF", 100 meters transmission.
D is the "ON" state, port 1-16/1-24 can support AI self-healing mode; when "OFF", no communication self-healing function.
P is the "ON" state, POE outputs total power and priority indication mode; when "OFF", no power indication function.
Chip Parameter
Network Protocol: IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX
IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IEEE802.3x
Forwarding Mode: Store and Forward(Full Wire Speed)
Switching Capacity: 14.8Gbps(non-blocking)
Forwarding: 6.55Mpps
Rate@64byte:
MAC: 16K
Buffer Memory: 4M
Jumbo Frame: 10K
LED Indicator: Power: PWR (green), Network : link (yellow), PoE :PoE (green) .rate:1000M (green)
PoE & Power Supply
PoE Port: Port 1 to 24 IEEE802.3af/at @ POE
Power Supply Pin: Default 1/2 (+), 3/6 (-)
Max Power Per Port: 30W, IEEE802.3af/at
Total PWR / Input Voltage: 250W (100-240V)
Power Consumption: Standby<20W,Full load<250W
Power Supply: Built-in switching power supply, AC 100 ~ 240V 50-60Hz 4.1A
