Unmanaged 10-Port 10/100M Non-Standard PoE Switch,10*10/100M RJ45 Ports, DC24V PoE Output Smart PoE Switch

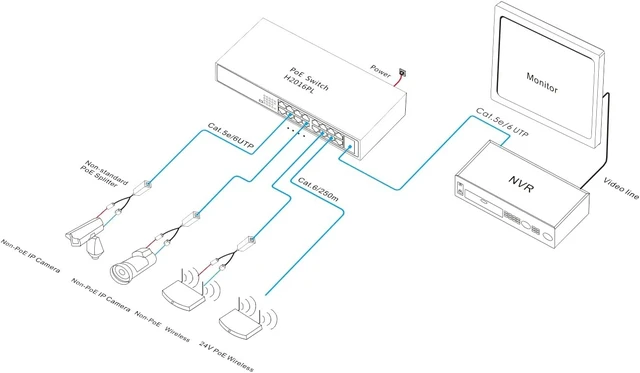

- Widely UsedThe PoE switch is rigorously tested for reliability, quality, and performance.It can supply power to various adaptable terminals through network cables to meet the demand for a high-density PoE power supply network environment.It is suitable for hotels, campuses,factory dormitories, and small and medium-sized enterprises to establish cost-effective networks.Unmanaged mode, plug and play, no configuration, easy to use.
- Widely UsedThe PoE switch is rigorously tested for reliability, quality, and performance. It can supply power to various adaptable terminals through network cables to meet the demand for a high-density PoE power supply network environment. It is suitable for hotels, campuses,factory dormitories, and small and medium-sized enterprises to establish cost-effective networks.Unmanaged mode, plug and play, no configuration, easy to use.
- Smart PoE Power SupplyThe smart 18port POE switch has The max PoE output power is 250W and the max PoE output power of sing
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now

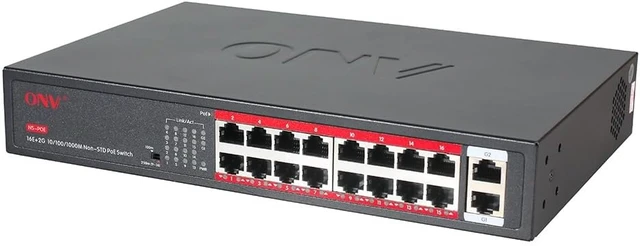

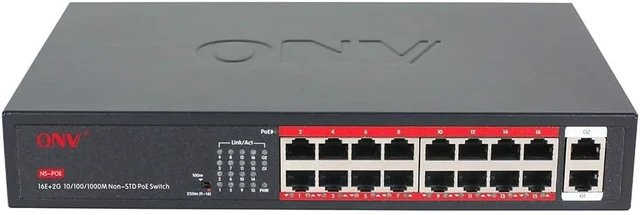

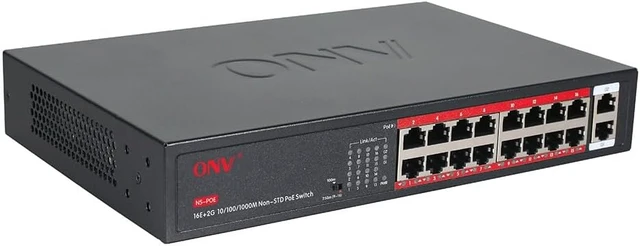

Model:ONV-H2016PL
Interface Characteristics
Fixed Port:
16*10/100Base-TX PoE ports (Data/ Power)
2*10/100/1000Base-T RJ45 ports (Data)
Ethernet Port:
Port 1-16/ 1-24 can support 10/100Base-T(X) and port 17-18/ 25-26 can support 10/100/1000Base-T auto-sensing, full/ half duplex MDI/ MDI-X self-adaption
Functional Switch (100m/ 250m):
Port 9-16/17-24 can support 10M/250 meters transmission when turned on
Note: When the switch status changes, the PoE switch must be restarted for the functional switch function to take effect.
Twisted Pair Transmission:
10BASE-TX: Cat5 or later UTP (250 meters)
100BASE-TX: Cat5 or later UTP (100 meters)
1000BASE-T: Cat5e or later UTP (100 meters)
Chip Parameter
Network Protocol: IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3x
Forwarding Mode: Store and Forward (Full Wire Speed)
Switching Capacity: 14.8Gbps (non-blocking)
Forwarding: 5.36Mpps
Rate@64byte
MAC: 16K
Buffer Memory: 4M
Jumbo Frame: 10K
LED Indicator: Power: PWR (Green), Network: (Green)
PoE&Power Supply
PoE Port: Port 1-16
Power Supply Pin: 4/5(+) 7/8 (-)
Max Power Per Port: 24W, non-standard PoE+
Total PWR / Input Voltage: 250W /(AC100-240V)
Power Consumption: Standby<15W, Full Load<250W
Power Supply: Built-in power supply, AC 100~240V 50-60Hz, 4.1A
