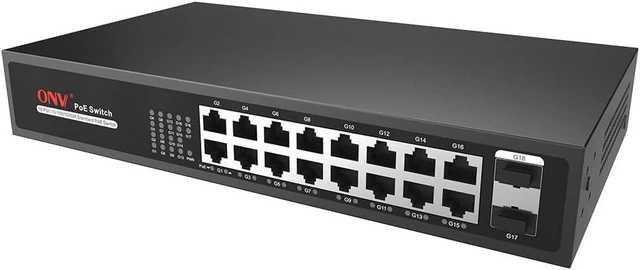

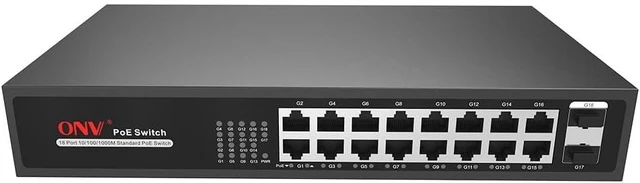

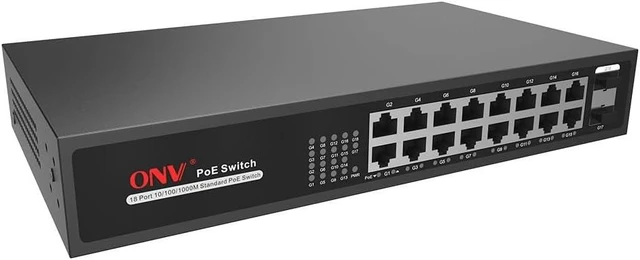

18-Port Full Gigabit PoE Switch,16*10/100/1000M Adaptive RJ45 Ports, 2*1000M Uplink SFP Ports,IEEE 802.3 af/at PoE Standard Unmanaged PoE Switch
- 18Port POE SwitchUnmanaged PoE switch has 16*10/100/1000M adaptive RJ45 ports and 2*1000M uplink SFP ports. Port 1-16 can support IEEE 802.3 af/at PoE standard. Single port PoE power is up to 30W, and the max POE output power is 250W.As a PoE power supply device, it can automatically detect and recognize the power-receiving equipment that meets the standard and supply power through the network cable.
- Full Gigabit PortThe smart 18port POE switch support IEEE 802.3x full-duplex flow control and Backpressure. Support non-blocking wire-speed forwarding for smoother transmission.Support the combination of RJ45 ports and Gigabit SFP ports to facilitate flexible networking and meet the networking requirements of various scenarios.
- Smart PoE Power SupplyThe smart 18port POE switch has comply with IEEE 802.3 af/at PoE standard, automatically identify PoE devices for power supply, and not damage non-PoE devices.The PoE port supports the priority mechanism. When the remaining power is in
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Model:ONV-H3016PF
Interface Characteristics
Fixed Port:
16*10/100/1000Base-T PoE ports (Data/Power)
2*1000Base-X uplink SFP ports (Data)
Ethernet Port:
Port 1-16/ 1-24 support 10/100/1000Base-T auto-sensing, full/half duplex MDI/MDI-X self-adaption
Twisted Pair Transmission:
10BASE-T: Cat3, 4, 5 UTP(100 meters)
100BASE-TX: Cat5 or later UTP(100 meters)
1000BASE-T: Cat5e or later UTP(100 meters)
SFP Slot Port:
Gigabit SFP optical fiber interface, default not matching optical modules (optional order single-mode / multi-mode, single fiber / dual fiber optical module. LC)
Optical Cable/ Distance:
Multi-mode: 850nm / 0-550M, Single-mode: 1310nm / 0-40KM, 1550nm/ 0-120KM.
Chip Parameter
Network Protocol:
IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-X, IEEE 802.3x
Forwarding Mode: Store and Forward (Full Wire Speed)
Switching Capacity: 52Gbps (Non-blocking)
Forwarding: 26.78Mpps
Rate@64byte
MAC: 8K
Buffer Memory: 4M
Jumbo Frame: 10K
LED Indicator: Power: PWR (Green), Network: Link (Green)
PoE: PoE (Green), Fiber: G1/G2(Green), POE: PoE(Green)
PoE & Power Supply
PoE Port: Port 1 to 16 IEEE 802.3 af/at
Power Supply Pin: 1/2 (+) 3/6 (-)
Max Power Per Port: 30W, IEEE 802.3 af/at
Total PWR / Input Voltage: 250W /(AC100-240V)
Power Consumption: Standby<15W, Full Load<240W
Power Supply: Built-in power supply, AC100~240V 50-60Hz 4.1A
