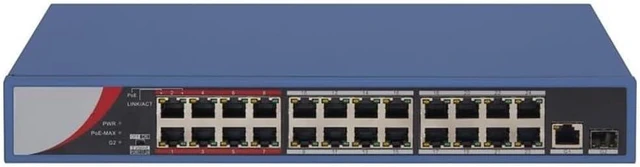

DS-3E0326P-E 24 POE Switch 24x100 Mbps PoE Ports 1x 1000 Mbps RJ45 Port with Multiple Access Ports Fast Ethernet Unmanaged POE Switch for CCTV Camera
- 24Port POE SwitchPOE switch is a layer 2 long-range PoE switch,providing 24x100 Mbps PoE ports, 1x 1000 Mbps RJ45 port,and 1x1000 Mbps SFP fiber optical port.The switch provides advanced PoE technology and supports extend mode with long-range access up to 300 m.
- Stable & ReliablePOE switch prior and stable transmission of the important surveillance area videos can also be guaranteed when connected to the high priority ports. The switch is reliable, easy to install and maintain, and equipped with rapid switching functions.
- Smart PoE Power SupplyIntelligent PoE Management. When the power supply exceeds the limit, PoE ports intelligently manage the power supply, which extends the switch lifetime. 4/8-Core Adaptive Power Supply with Less Power Loss. 8-core power supply reduces the power loss on cables.
- Widely UsedPOE switch design for Video Transmission. VIP port ensures important data transmission when network congestion occurs.With multiple access ports, it is applicable for
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Model DS-3E0326P-E
Network parameters
Port number:
24 × 100 Mbps PoE ports, 1 × 1000 Mbps RJ45port, and 1 × 1000 Mbps SFP fiber optical port
Port type:
RJ45 port, full duplex, MDI/MDI-X adaptive
Standard:
IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Forwarding mode:
Store-and-forward switching
Working mode
Standard mode (default); Extend mode
High priority ports
Ports 1 to 8
Ports for long-distance transmission
Ports 17 to 24
MAC address table
4 K
Switching capacity
8.8 Gbps
Packet forwarding rate
6.547 Mpps
Internal cache
2.75 Mbits PoE power supply
PoE standard
IEEE 802.3af, IEEE 802.3at
PoE power pin
1-24 support 8-core power supply, Ethernetcable 1/2/3/6 and 4/5/7/8 provide simultaneous power supply.
PoE port
Ports 1 to 24
Max. port power
30 W
PoE power budget
230 W
Max. power consumption:
250 W General
Shell:
Metal material
Gross weight:
3.33 kg (7.34 lb)
Net weight:
2.55 kg (5.6 lb)
Dimension (L × H × D):
335 mm × 44.5 mm × 226 mm (13.2 × 1.8 ×8.9)
Operating temperature:
-10 °C to 55 °C (14 °F to 131 °F)
Storage temperature:
-40 °C to 85 °C (-40 °F to 185 °F)
Operating humidity:
5% to 95% (no condensation)
Storage humidity:
5% to 95% (no condensation)
Power supply:
100 to 240 VAC, 50/60 Hz, Max. 4 A
Power consumption in idle:
20 W Approval
