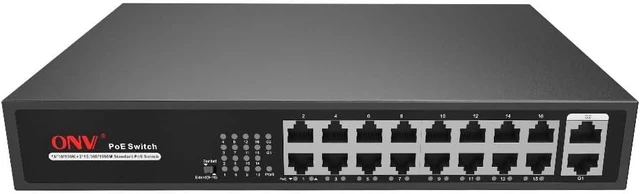

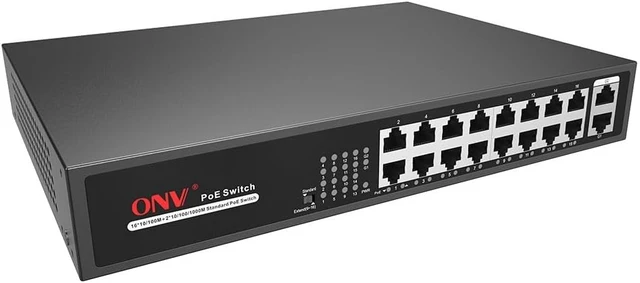

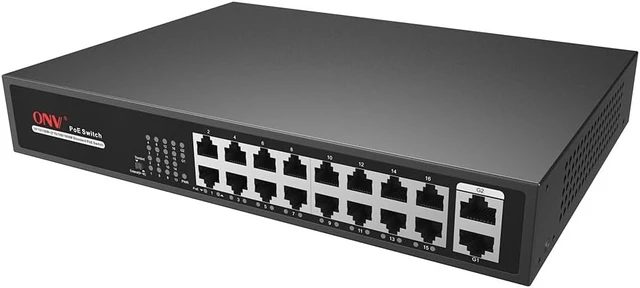

18-Port Gigabit Uplink PoE Switch 16*10/100Mbps 2*10/100/1000M Uplink RJ45 Ports Support IEEE802.3af/at PoE Standard Smart PoE Switch
- Innovative FunctionThe smart 18port POE switch has 10/100M access, Gigabit uplink. This POE switch can support non-blocking wire-speed forwarding. Support full-duplex based on IEEE802.3x and half-duplex based on Backpressure. Provides 16*10/100M PoE ports and 2*10/100/1000M RJ45 ports for flexible networking and meets the networking requirements of various scenarios.
- 18Port POE + SwitchThe smart switch has 16*10/100M PoE ports and 2*10/100/1000M uplink RJ45 ports. Port 1-16 can support IEEE802.3af/at PoE standard.Single-port PoE power up to 30W and the maximum POE output power less than 250W. As a PoE power supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable.

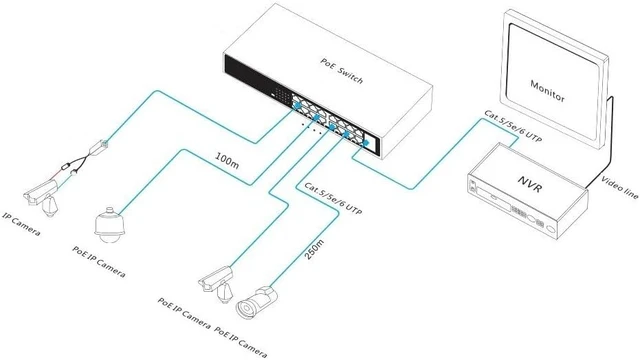

- Smart PoE Power SupplyThe smart 18port POE switch comply with IEEE 802.3af/at PoE standard, without damaging non-PoE devices. 16*10/100Base-TX RJ45 ports, meeting the needs of security monitoring, teleconferencing system,
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Model: ONV-H1016PL
Interface Characteristics
Fixed Port:
2*10/100/1000Base-T uplink RJ45 ports (Data)
Ethernet Port:
Port 1-16/Port 1-24 support 10/100Base-TX and port 17-18/ 25-26 support 10/100/1000Base-T auto-detection, full/half-duplex MDI/MDI-X auto-sensing
Functional Switch:
When functional switch opening, Port 9-16/17-24 can support 10M/250m long distance transmission.
Note: when the switch state changes, it must be restarted before the PoE switch function can take effect
Twisted Pair Transmission
10BASE-T: Cat3,4,5 UTP(250 meters)
100BASE-TX: Cat5 or later UTP(100 meters)
1000BASE-T: Cat5e or later UTP(100 meters)
Chip Parameter
Network Protocol
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T
IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T, IEEE802.3x
Forwarding Mode: Store and Forward(Full Wire Speed)
Switching Capacity: 14.8Gbps (Non-blocking)
Forwarding: 5.36Mpps
Rate@64byte
MAC: 16K
Buffer Memory: 4M
Jumbo Frame: 9.6K
LED Indicator: Power: PWR (Green), Network: Link(Green), PoE: PoE (Green)
PoE & Power Supply
PoE Port: Port 1 to 16
Power Supply Pin: 1/2(+) 3/6(-) 2-pairs power supply
Max Power Per Port: 30W, IEEE802.3af/at
Total PWR / Input Voltage: 250W (AC100-240V)
Power Consumption: Standby<15W, Full load <240W
Power Supply: Built-in power supply, AC100~240V 50-60Hz 5.0A
