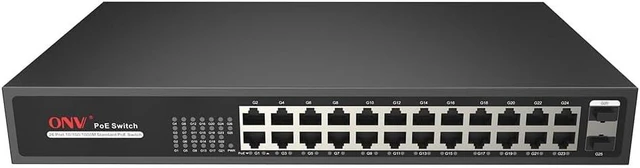

Main image of 26-Port Full Gigabit PoE Fiber Switch, Port 1-16 can Support IEEE 802.3 af/at PoE Standard, 2*1000M Uplink SFP Ports Unmanaged PoE Switch

Alt view image 2 of 4 - 26-Port Full Gigabit PoE Fiber Switch, Port 1-16 can Support IEEE 802.3 af/at PoE Standard, 2*1000M Uplink SFP Ports Unmanaged PoE Switch

Alt view image 3 of 4 - 26-Port Full Gigabit PoE Fiber Switch, Port 1-16 can Support IEEE 802.3 af/at PoE Standard, 2*1000M Uplink SFP Ports Unmanaged PoE Switch

Alt view image 4 of 4 - 26-Port Full Gigabit PoE Fiber Switch, Port 1-16 can Support IEEE 802.3 af/at PoE Standard, 2*1000M Uplink SFP Ports Unmanaged PoE Switch

Shop All VisiPower Products | Visit Solides Home Store

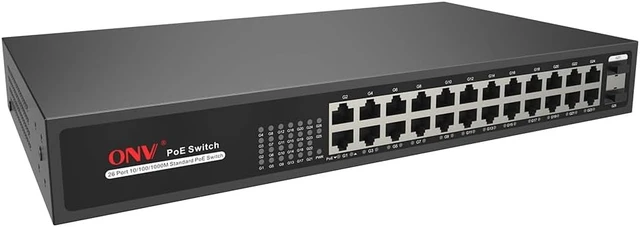

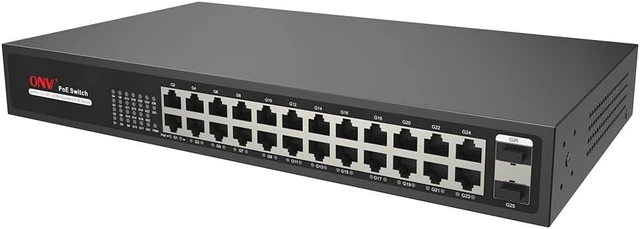

26-Port Full Gigabit PoE Fiber Switch, Port 1-16 can Support IEEE 802.3 af/at PoE Standard, 2*1000M Uplink SFP Ports Unmanaged PoE Switch

Be the first to review this product...

26Port POE SwitchUnmanaged PoE fiber switch has 24*10/100/1000M adaptive RJ45 ports and 2*1000M uplink SFP ports.Port 1-24 can support IEEE 802.3 af/at PoE standard. Single port PoE power is up to 30W, and the max POE output power is 250W. As a PoE power supply device, it can automatically detect and recognize the power-receiving equipment that meets the standard and supply power through the network cable.
Full Gigabit PortThe smart 26port POE switch support IEEE 802.3x full-duplex flow control and Backpressure.Support non-blocking wire-speed forwarding for smoother transmission.Support the combination of RJ45 ports and Gigabit SFP ports to facilitate flexible networking and meet the networking requirements of various scenarios.
Smart PoE Power SupplyThe smart 26port POE switch has Comply with IEEE 802.3 af/at PoE standard, automatically identify PoE devices for power supply, and not damage non-PoE devices.The PoE port supports the priority mechanism. When the remaining power

Overview

Specs

Reviews

Any questions? Our AI mode will help you find out quickly.

Try me now

Model:ONV-H3024PF
Interface Characteristics
Fixed Port:
24*10/100/1000Base-T PoE ports (Data/Power)
2*1000Base-X uplink SFP ports (Data)
Ethernet Port:
Port 1-16/1-24 support 10/100/1000Base-T auto-sensing, full/half duplex MDI/MDI-X self-adaption
Twisted Pair Transmission:
10BASE-T: Cat3,4,5 UTP(100 meter)
100BASE-TX: Cat5 or later UTP(100 meter)
1000BASE-T: Cat5e or later UTP(100 meter)
SFP Slot Port:
Gigabit SFP optical fiber interface, default no include optical modules (optional single-mode / multi-mode, single fiber / dual fiber optical module. LC)
Optical Cable/ Distance:
Multi-mode: 850nm/ 0-500m, Single-mode:1310nm/0-40km, 1550nm/ 0 -120km.
Chip Parameter
Network Protocol:
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T, IEEE802.3u 100Base-TX
IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IEEE802.3x
Forwarding Mode: Store and Forward(Full Wire Speed)
Switching Capacity: 52Gbps (Non-blocking)
Forwarding: 38.69Mpps
Rate@64byte
MAC: 8K
Buffer Memory: 4M
Jumbo Frame: 10K
LED Indicator: Power: PWR (Green), Network: Link (Green), PoE: PoE (Green),
Fiber: G1/G2(Green), POE: PoE(Green)
PoE & Power Supply
PoE Port: Port 1 to 24, IEEE802.3af/at
Power Supply Pin: Default 1/2 (+) 3/6 (-)
Max Power Per Port: 30W, IEEE802.3af/at
Total PWR / Input Voltage: 250W /(AC100-240V)
Power Consumption: Standby: 20W, Full Load: 250W
Power Supply: Built-in power adapter, AC 100~240V 50-60Hz 4.1A
