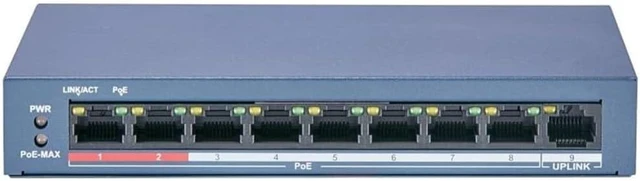

DS-3E0109P-E 8 Port POE Switch Fast Ethernet Unmanaged POE Switch for CCTV Camera

Model :
DS-3E0109P-E-new
General:
Shell :Metal material
Net Weight :0.35 kg (0.77 lb)
Gross Weight :0.89 kg (1.96 lb)
Dimensions (W × H × D) :170 mm × 27.6 mm ×93.1 mm (6.7'' × 1.1'' × 3.7'')
Operating Temperature :0 °C to 40 °C (32 °Fto 104 °F)
Storage Temperature :40 °C to 85 °C (40°F to 185 °F)
Operating Humidity :5% to 95% (nocondensation)
Relative Humidity :5% to 95% (nocondensation)
Power Supply :48 V DC, 1.35 A
Max. Power Consumption 65 W
Power Consumption in Idle 5 W
Installation ModeDesk-Mounted,Wall-Mounted
Surge Protection 6kV
Network Parameters
Ports 8 x 10/100 Mbps PoE port,1 × 10/100Mbps RJ45 port
MAC Address Table 2 K
Switching Capacity1.8 Gbps
Packet Forwarding Rate 1.34 Mpps
Internal Cache 1Mbits
PoE Power Supply
PoE Standard IEEE802.3af;IEEE 802.3at
PoE Power Pin 8-pin power: 1/2(-), 3/6(+),4/5(+), 7/8(-)
PoE Port PoE: Ports 1 to 8
Max. Port Power 30 W
PoE Power Budget 60W
Dialing
Function
Long Range
Ports 1 to 8: up to 300 m.
Long range performance may vary depend oncamera model or cable condition.
