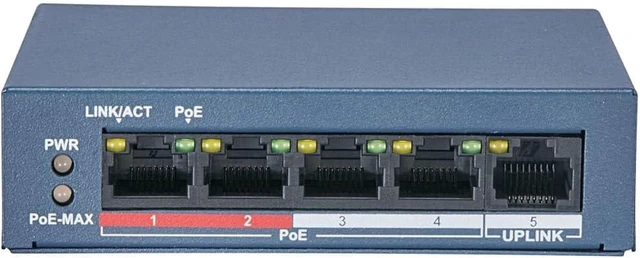

DS-3E0105P-E 4 Port POE Switch Fast Ethernet Unmanaged POE Switch for CCTV Camera

Model DS-3E0105P-E
Shell Metalmaterial
Net Weight 0.2 kg(0.4 lb)
Gross Weight 0.48kg (1.06 lb)
Dimensions (W × H × D) 105 mm × 27.6 mm × 83.1 mm (4.1'' × 1.1'' × 3.3'')
Operating Temperature 0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature 40 °C to 85 °C (40 °F to 185 °F)
Operating Humidity 5% to 95% (no condensation)
Relative Humidity 5%to 95% (no condensation)
Power Supply 48 VDC, 0.8 A
Max. Power Consumption 38 W
Power Consumption in Idle 3 W
Installation ModeDesk-Mounted,Wall-Mounted
Surge Protection 6kV
Ports 4 x 10/100 Mbps PoE port,1× 10/100Mbps RJ45 port
MAC Address Table2 K
Switching Capacity 1 Gbps
Packet Forwarding Rate 0.74 Mpps
Internal Cache 768Kbits
PoE Standard IEEE 802.3af;IEEE 802.3at
PoE Power Pin 8-pin power: 1/2(-), 3/6(+),4/5(+), 7/8(-)
PoE Port PoE: Ports 1 to 4
Max. Port Power 30 W
PoE Power Budget35 W
Long Range
Ports 1 to 4: up to 300 m.
Long range performance may vary depend oncamera model or cable condition.
