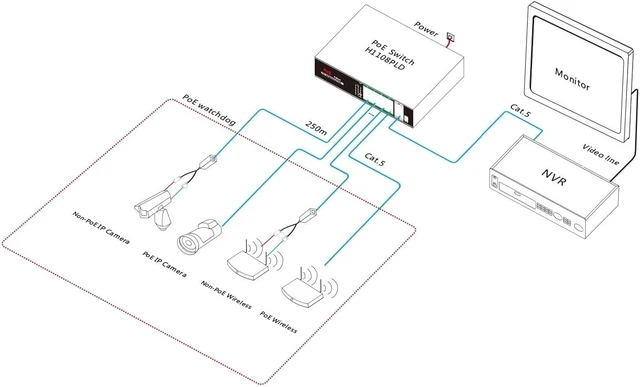

Main image of 10-Port 10/100M Smart PoE Switch, Support Watchdog Function Wireless APs - IEEE802.3af/at, Ethernet Network Switch for IP Cameras,VoIP Phones, Wide Temperature Range

Shop All VisiPower Products | Visit XinjintongLimited Store

10-Port 10/100M Smart PoE Switch, Support Watchdog Function Wireless APs - IEEE802.3af/at, Ethernet Network Switch for IP Cameras,VoIP Phones, Wide Temperature Range

Be the first to review this product...

10Port POE Switch & Watchdog FunctionThe smart PoE switch has 8*10/100Base-TX RJ45 ports and 2*10/100Base-TX RJ45 ports. Port 1-8 can support IEEE 802.3af/at PoE standard and single-port PoE power reaches 30W. It can support the watchdog function. When the port communication failure corresponds to the port PoE will automatically restart,self-recover network communication,reducing manual intervention and maintenance. As a PoEpower supply device, it can automatically detect and recognize the power receiving equipment that meets the standard and supply power through the network cable.
Smart PoE Power Supply & Flexible NetworkingThe smart PoE switch 10/100M access, uplink RJ45 port. Support non-blocking wire-speed forwarding. Support full-duplex based on IEEE 802.3x and half-duplex based on Backpressure. 10*10/100Base-TX RJ45 ports allow users to flexibly network to meet the networking requirements of various scenarios. 8*10/100Base-TX PoE ports can support the watchdog function, r

Overview

Specs

Reviews

Any questions? Ask Celeste^SM will help you find out quickly.

Try me now

Model:ONV-H1108PLD
Interface Characteristics
Fixed Port:
8*10/100Base-TX PoE ports (Data/Power)
2*10/100Base-TX uplink RJ45 ports (Data)
Ethernet Port:
Port 1-6/ 1-10 can support 10/100Base-TX auto-sensing, full/ half duplex MDI/ MDI-X self-adaption
Twisted Pair Transmission:
10BASE-T: Cat3,4,5 UTP (250 meters)
100BASE-TX: Cat5 or later UTP (100 meters)
Function Switch:
E: long-distance transmission and VLAN isolation (Default off)
D: PoE watchdog mode: When the network fails, PoE watchdog will restart the power supply of the device and automatically repair the network communication. (Default off)
Note: The function switch can control different functions, which can be enabled separately and simultaneously.
Chip Parameter
Network Protocol: IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3x
Forwarding Mode: Store and Forward(Full Wire Speed)
Switching Capacity: 2Gbps (non-blocking)
Forwarding Rate @64byte: 1.488Mpps
MAC: 2K
Buffer Memory: 1.25M
Jumbo Frame: 1536byte
LED Indicator: Power: PWR (Green), Network: Link (Yellow), PoE: PoE (Green), Function switch: E/D (Green)
PoE & Power Supply
PoE Port: Port 1-8
Power Supply Pin: 1/2(+) 3/6(-)
Max Power Per Port: 30W, IEEE 802.3 af/at
Total PWR / Input Voltage: 120W/ (AC100-240V)
Power Consumption: Standby<5W, Full load<120W
Power Supply: Built-in power supply, AC100-240V 50-60Hz, 2.2A
