Main image of Unmanaged 6-Port PoE Switch IEEE802.3af/at PoE Standard 10/100Mbps RJ45 Ports Port 1-4 can Support 10M/250 Meters Transmission, Power Over Network Cable for IP Camera POE Terminal Equipment

Shop All VisiPower Products | Visit XinjintongLimited Store

Unmanaged 6-Port PoE Switch IEEE802.3af/at PoE Standard 10/100Mbps RJ45 Ports Port 1-4 can Support 10M/250 Meters Transmission, Power Over Network Cable for IP Camera POE Terminal Equipment

Be the first to review this product...

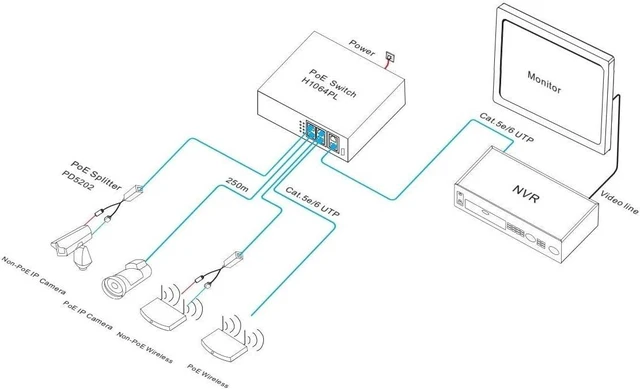

6Port POE + SwitchThe smart switch has 6*10/100M RJ45 ports. Port 1-4 can support IEEE 802.3 af/at PoE standard, and single-port PoE power up to 30W. As a PoE power supply device, it can automatically detect and recognize the power-receiving equipment that meets the standard and supply power through the network cable. It can supply power to POE terminal equipment such as wireless AP, IP cameras, VoIP phones, video access control intercoms, etc. through a network cable to meet the network environment that needs a high-density PoE power supply.
Smart PoE Power SupplyThe smart 6port POE switch Comply with IEEE 802.3 af/at PoE standard, automatically identify PoE devices for power supply, and not damage non-PoE devices. 4*10/100Base-TX PoE ports, meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios. Priority system for PoE port will supply power to the high priority level port first when the power budget is insufficient and avoid

Overview

Specs

Reviews

Any questions? Ask Celeste^SM will help you find out quickly.

Try me now

Interface Characteristics
Fixed Port: 4*10/100Base-TX PoE ports (Data/ Power)2*10/100Base-TX uplink RJ45 ports (Data)
Ethernet Port: Port 1-6/ 1-10 can support 10/100Base-TX auto-detection, full/ half-duplex MDI/ MDI-X auto-sensing
Functional Switch: 1*(Extend+ VLAN) Note: When the switch status changes, the PoE switch must be restarted for the function switch to take effect.
Twisted Pair Transmission: 10BASE-TX: Cat3,4,5 UTP (250 meters) 100BASE-TX: Cat5 or later UTP (100 meters)
Chip Parameter
Network Protocol: IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3x
Forwarding Mode: Store and Forward(Full Wire Speed)
Switching Capacity: 1.6Gbps (Non-blocking)
Forwarding: 0.98Mpps
Rate@64byte: 1K
MAC: 768K
Buffer Memory: 9.6K
Jumbo Frame: Power:PWR (Green),Network: L/A(Yellow),PoE: PoE (Green)
LED Indicator: Functional switch:100m/250m (Green)
PoE & Power Supply
PoE Port: Port 1 to 4
Power Supply Pin: 1/2(+)3/6(-)
Max Power Per Port: 30W,IEEE 802.3 af/at
Total PWR / Input Voltage: 65W/(AC100-240V)
Power Consumption: Standby<3W, Full load <65W
Power Supply: Built-in power supply,AC100~240V 50-60Hz,1.1A
Physical Parameter
Operation TEMP/ Humidity: -20~+55°C,5%~90% RH Non condensing
Storage TEMP/ Humidity: -40~+75°C,5%~95% RH Non condensing
Dimension (L*W*H): 142.5*115*40mm
Net /Gross Weight: 0.55kg/<0.8kg
Installation: Desktop,wall-mounted
Certification & Warranty
Lightning Protection: Lightning protection:4KV 8/20us,Protection level:IP30
Certification: CCC,CE mark, commercial,CE/LVD EN62368-1,FCC Part 15 Class B,RoHS
Warranty: 1 year, lifelong maintenance.
Packing List
6-port 10/100M PoE switch
AC Power Cable
User Guide
Warranty Card
