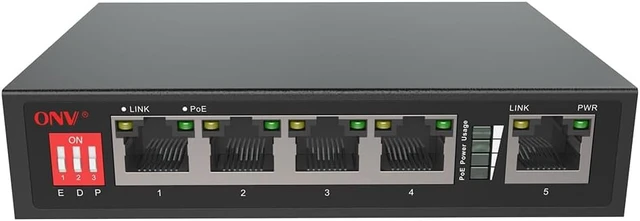

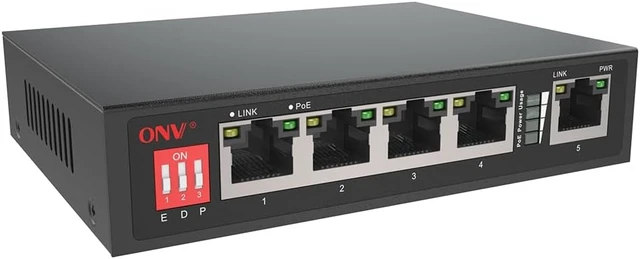

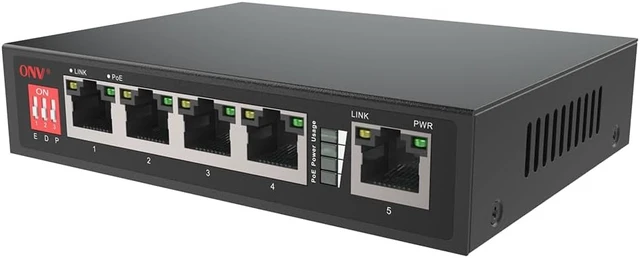

4 +1Port POE Smart Switch IEEE802.3af/at PoE Standard 10/100Mbps 10M/250 Meters Transmission, Power Over Ethernet for IP Camera
- 4 +1Port POE + SwitchIt has 5*10/100Base-TX RJ45 ports.Port 1-4 can support IEEE 802.3 af/at PoE standard and single-port PoE power reaches 30W. Port 1-4 can support the PoE watchdog function. When the port communication failure corresponds to the port PoE will automatically restart, and self-recover network communication, reducing manual intervention and maintenance. As a PoE power supply device, it can automatically detect and recognize the power-receiving equipment that meets the standard and supply power through the network cable.
- Smart PoE Power Supply4*10/100Base-TX PoE ports can support the PoE watchdog function, real-time detection of data communication status. Comply with IEEE 802.3 af/at PoE standard, automatically identify PoE devices for power supply, and not damage non-PoE devices. 4*10/100Base-TX PoE ports, meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.
- Innovative FunctionAI PoE watchdog mode (D): When
+
+
Overview
Specs
Reviews
Any questions? Ask CelesteSM will help you find out quickly.
Try me now
Chip Parameter
Network Protocol:
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T
IEEE802.3u 100Base-TX, IEEE802.3x
Forwarding Mode: Store and Forward(Full Wire Speed)
Switching Capacity : 1.6Gbps
Forwarding Rate@64byte : 0.74Mpps
MAC: 1K
Buffer Memory: 768K
Jumbo Frame: 1632byte
LED Indicator:
Power: PWR (green), Network: Link (yellow), POE: PoE (green), POE power:P25% (green block), 25%50%75%(red block)
Interface Characteristics
Fixed Port
4*10/100Base-TX PoE ports (Data/Power)
1*10/100Base-TX uplink RJ45 port (Data)
Ethernet Port
Port 1-4 support 10/100 Base-T(X) auto-sensing, full/half duplex MDI/MDI-X self-adaption
Twisted Pair Transmission
10BASE-T: Cat3,4,5 UTP(250 meter)
100BASE-TX: Cat5 or later UTP(100 meter)
Function Switch
E is the "ON" state, port 1-4 can support long-distance transmission 10M/250m and VLAN transmission mode; when "OFF", 100 meters transmission.
D is the "ON" state, port 1-4 can support AI self-healing mode; when "OFF", no communication self-healing function.
P is the "ON" state, POE outputs total power and priority indication mode; when "OFF", no power indication function.
Chip Parameter
Network Protocol:
IEEE802.3 10BASE-T, IEEE802.3i 10Base-T
IEEE802.3u 100Base-TX, IEEE802.3x
Forwarding Mode: Store and Forward(Full Wire Speed)
Switching Capacity : 1.6Gbps
Forwarding Rate@64byte : 0.74Mpps
MAC: 1K
Buffer Memory: 768K
Jumbo Frame: 1632byte
LED Indicator:
Power: PWR (green), Network: Link (yellow), POE: PoE (green), POE power:P25% (green block), 25%50%75%(red block)
PoE & Power
PoE Port: Port 1 to 4 IEEE802.3af/at @ POE
Power Supply Pin: Defaul 1/2 (+), 3/6 (-), optional 4/5(+), 7/8(-)
Max Power Per Port: 30W; IEEE802.3af/at
Total PWR / Input Voltage:
65W/ (DC52V)
110W/ (DC52V)
Power Consumption:
Standby<4W, Full load<60W
Standby<6W, Full load<110W

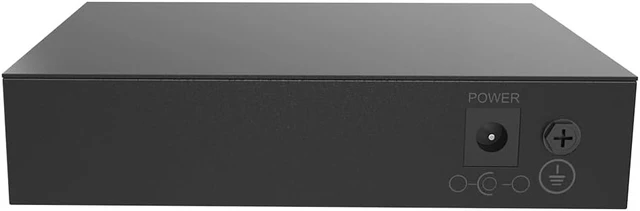

Power Supply:
External power adapter, AC100~240V 50-60Hz 1A
External power adapter, AC100~240V 50-60Hz 2A
Physical Parameter
Operation TEMP / Humidity
-20~+55°C;5%~90% RH Non condensing
Storage TEMP / Humidity
-40~+75°C;5%~95% RH Non condensing
Dimension (L*W*H): 118*95*28mm
Net /Gross Weight:
<0.3kg / <0.8kg
<0.5kg / <1.0kg
Installation: Desktop.Wall-mounted
Certification & Warranty
Lightning protection / protection level:
Lightning protection: 4KV 8/20us; Protection level: IP30
Certification:
CCC, CE mark, commercial; CE/LVD EN60950, FCC Part 15 Class B, RoHS
Warranty:3 years, lifelong maintenance.
ONV-POE31004PLD-at : AI PoE switch with 4*10/100M PoE port and 1*10/100M uplink RJ45 port. Port1-4 can support IEEE 802.3af/at PoE standard. Adjust function switch, port 1-4 can support VLAN isolation, 10M/250m transmission, AI self-healing, power indication, and power supply priority, External 110W power supply.
