Unmanaged 6-Port 10/100M Smart PoE Switch, Support Watchdog Function Wireless APs - IEEE802.3af/at, Uplink RJ45 Port, Ethernet Network Switch for IP Cameras,VoIP Phones, Wide Temperature Range

Be the first to review this product...

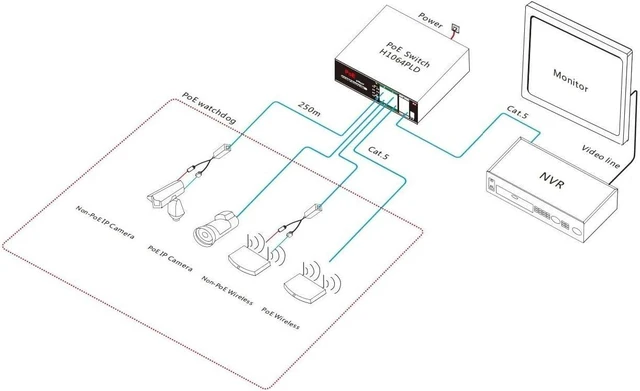

Innovative FunctionThe smart PoE switch was power supply priority mode: The PoE port power supply priority function is enabled by default, giving priority to the power output of the PoE port (port 1) to prevent overload. PoE watchdog mode (D): When the switch status is ON (default off), port 1-4 can support the watchdog function and automatically detects the data communication status in real-time. Long-distance transmission and VLAN mode (E): When the switch status is ON (defaultoff), Port 1-4 rate is 10M/250 meters transmission, the port physical VLAN isolated, broadcast storm, the transmission distance can up to 250m, solve the problem of poor transmission caused by line aging.
Innovative FunctionThe smart PoE switch was power supply priority mode: The PoE port power supply priority function is enabled by default, giving priority to the power output of the PoE port (port 1) to prevent overload. PoE watchdog mode (D): When the switch status is ON (default off), port 1-4 can su

Overview

Specs

Reviews

Any questions? Ask Celeste^SM will help you find out quickly.

Try me now

Model:ONV-H1064PLD
Interface Characteristics
Fixed Port:
4*10/100Base-TX PoE ports (Data/Power)
2*10/100Base-TX uplink RJ45 ports (Data)
Ethernet Port:
Port 1-6/ 1-10 can support 10/100Base-TX auto-sensing, full/ half duplex MDI/ MDI-X self-adaption
Twisted Pair Transmission:
10BASE-T: Cat3,4,5 UTP (250 meters)
100BASE-TX: Cat5 or later UTP (100 meters)
Function Switch:
E: long-distance transmission and VLAN isolation (Default off)
D: PoE watchdog mode: When the network fails, PoE watchdog will restart the power supply of the device and automatically repair the network communication. (Default off)
Note: The function switch can control different functions, which can be enabled separately and simultaneously.
Chip Parameter
Network Protocol: IEEE 802.3 10BASE-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3x
Forwarding Mode: Store and Forward(Full Wire Speed)
Switching Capacity: 1.6Gbps (non-blocking)
Forwarding : 0.89Mpps
Rate @64byte
MAC: 1K
Buffer Memory: 768K
Jumbo Frame: 1536byte
LED Indicator: Power: PWR (Green), Network: Link (Yellow), PoE: PoE (Green), Function switch: E/D (Green)
PoE & Power Supply
PoE Port: Port 1-4
Power Supply Pin: 1/2(+) 3/6(-)
Max Power Per Port: 30W, IEEE 802.3 af/at
Total PWR / Input Voltage: 65W/ (AC100-240V)
Power Consumption: Standby<3W, Full load<65W
Power Supply: Built-in power supply, AC100-240V 50-60Hz, 1.1A
