12 Port 10G SFP+ Smart Switch| L2/L3+ Smart Managed | DoS Attack Prevention | IPv6 | Static Routing | L2/L3QoS, IGMP & LAG | Limited Lifetime Protection Managed Ethernet Switch

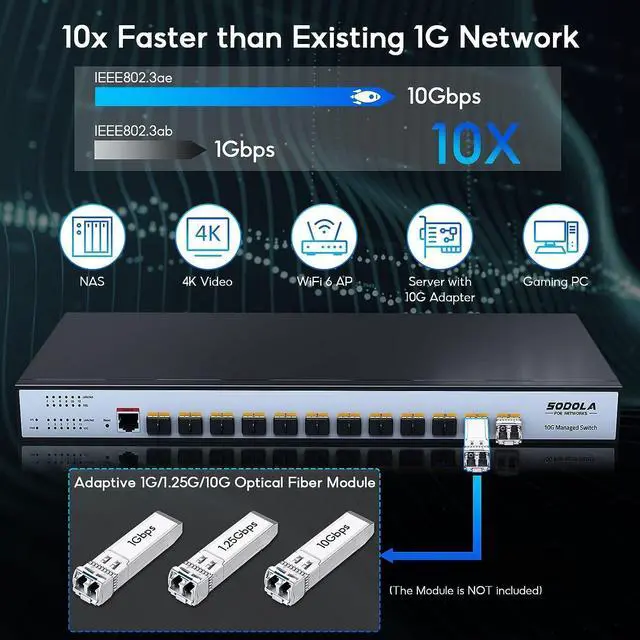

10 Gigabit SFP+The 10G managed switch has 12×10Gbps SFP+ Ports, Supports standard SFP interface optical module, no encryption, such as multi mode, single mode, SFP to
RJ45 Modules. (Attention: SFP module NOT included in package )

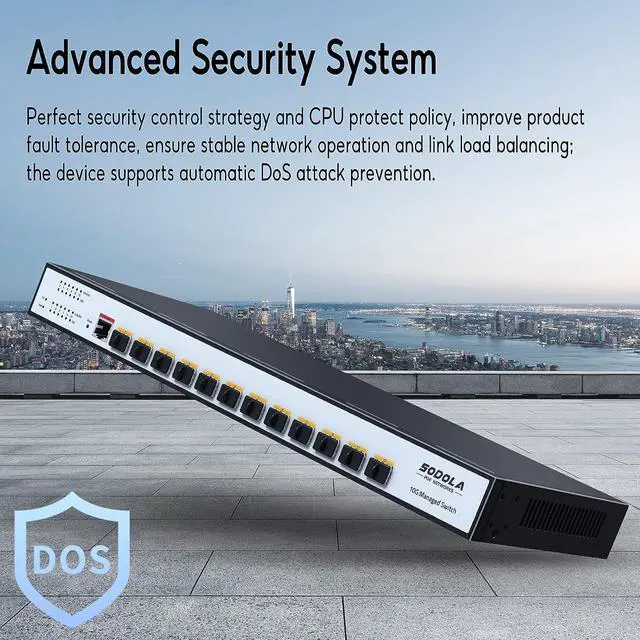

Enhance Network SecurityPerfect security control strategy and CPU protect policy, include 802.1Q VLAN, IP-MAC-Port binding, ACL, Port Security, DoS defend, Storm control, DHCP Snooping, 802.1X radius authentication and more, improve product fault tolerance, ensure stable network operation and link load balancing.

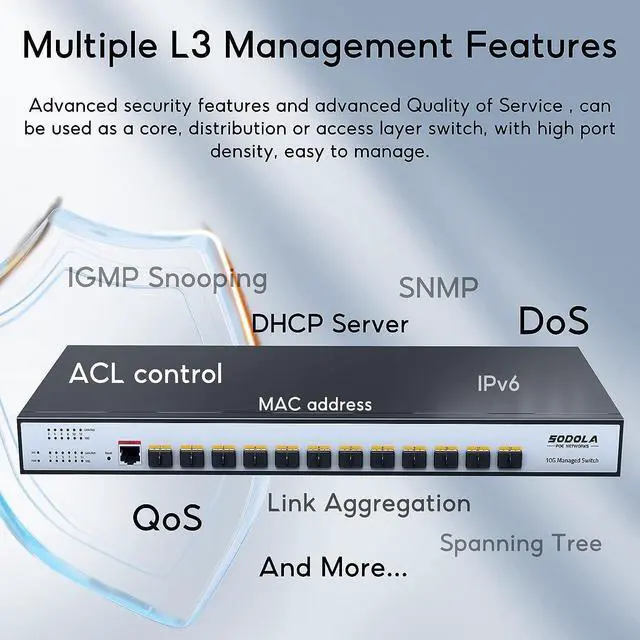

Universal L3 ManagementSupport DHCP Server, QoS, ACL control, support SNMP V1/V2/V3, IGMP Snooping v1/v2; Support STP/RSTP/MSTP (ERPS), loop detection and self-healing, support remote loop back monitoring and control( 802.3 ah OAM). Multiple managed methods to meet all your needs.

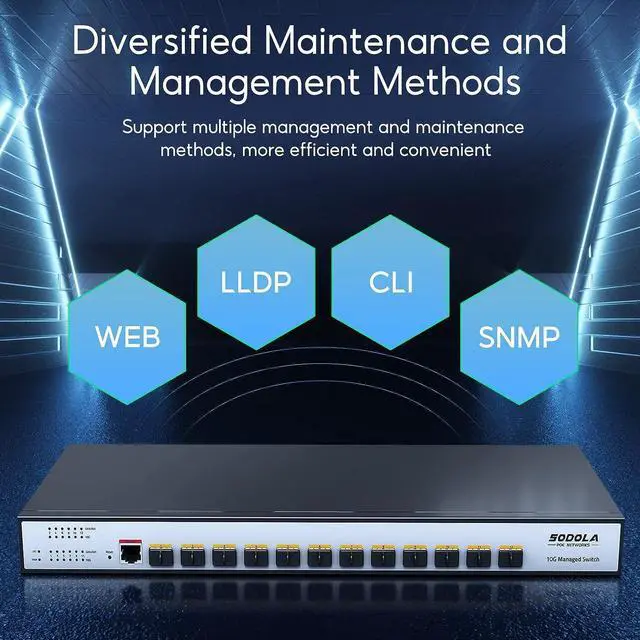

Maintenance&Management MethodsThe easy-to-use Web management interfaces, along with CLI(Console, Telnet)/NMP(V1, V2, V3) and RMON, means faster setup and configuration with less downtime. Moreover, it can seamlessly connect with customers or third-party network management cloud platforms to efficiently and conveniently implement business function.
Heat Dissipation with FanThe managed switch uses a built-in fan, with the body of the multi-directional heat dissipation, to ensure the smooth and safe operation of the network switch and reduce the operating pressure caused by the heat of the body.


PRODUCT PARAMETERS for SODOLA 12-Port 10G SFP Managed Ethernet Switch

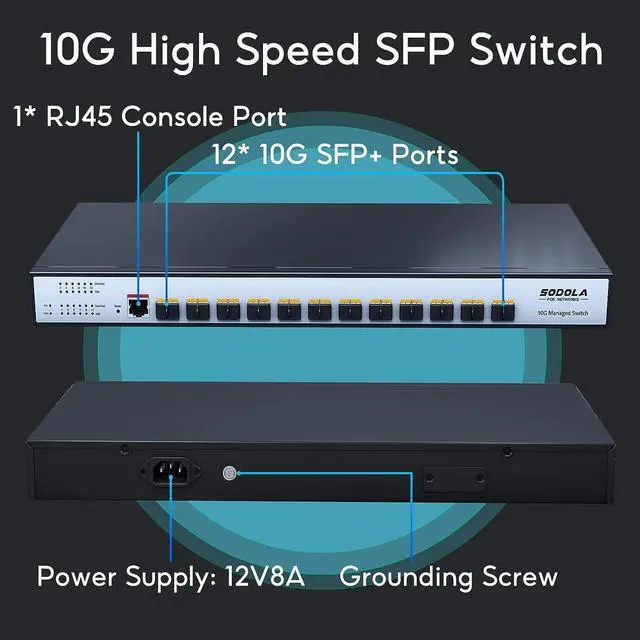

Power&Ethernet AC100-240V 50/60Hz DC 12V; 12* SFP+ Ports 1* RJ45 Console Port
Bandwidth 240Gbps
Packet Buffer Memory 178.56M pps
DDR SDRAM: 128MB Flash Memory: 16MB
Package cache: 16MB MAC Address: 32K
Jumbo Frame: 12K VLA
Ns: 4096
Network Protocol: IEEE 802.3 (Ethernet) IEEE 802.3 u (Fast Ethernet) IEEE 802.3 ab (Gigabit Ethernet) IEEE 802.3 z (Gigabit Ethernet optical fiber) IEEE 802.3 ae (10G Ethernet) IEEE 802.3 x (Flow control) IEEE 802.3 az (Energy Efficient Ethernet) IEEE 802.3 ad (link aggregation)
Network Protocol: IEEE 802.1AB LLDP/LLDP-MED (Link Layer Discovery Protocol) IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1 w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1 s Multiple Spanning Tree Protocol (MSTP) IEEE 802.1Q (Virtual Local Area Network) IEEE 802.1 p (VLAN Tags) IEEE 802.1X (User Authentication
Industry Standard EMI: FCC Part 15 CISPR (EN55032) class
A EMS: EN61000-4-2 (ESD), EN61000-4-4 (EFT), EN61000-4-5 (Surge)
Network Medium Multi-mode Fiber: 50/125, 62.5 /125, 100/140um
Single-mode Fiber: 8/125, 8.7 /125, 9/125, 10/125um
Working Environment Working Temperature: -10~50°C
Storage Temperature: -40~70°C
Working Humidity: 10%~90%, non-condensing Storage Temperature: 5%~90%, non-condensing
Indicator PWR (Power Indicator), SYS (system Indicator), Link (Link Indicator), ACT (ACT Indicator)
SYS (System light) On: System normal, Flashing: system startup
ACT (Data Light) On: Connecting;
Flashing: Data Transmit; Off: Disconnect
Structure Size Product Dimensions: 440*205*44mm
Package Dimensions: 500*290*85mm Product N.
W: 2.50 KG Product G.
W: 3.12 KG
Power Voltage Voltage: AC100-240V, 50/60Hz
Power supply: 12V8A
