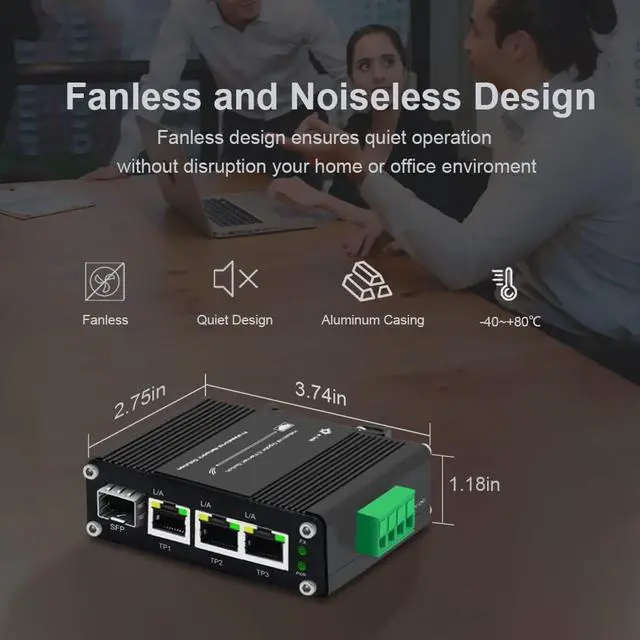

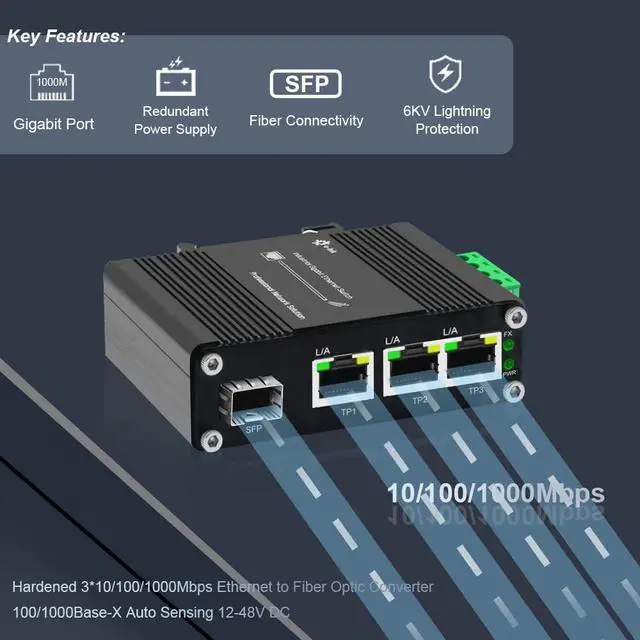

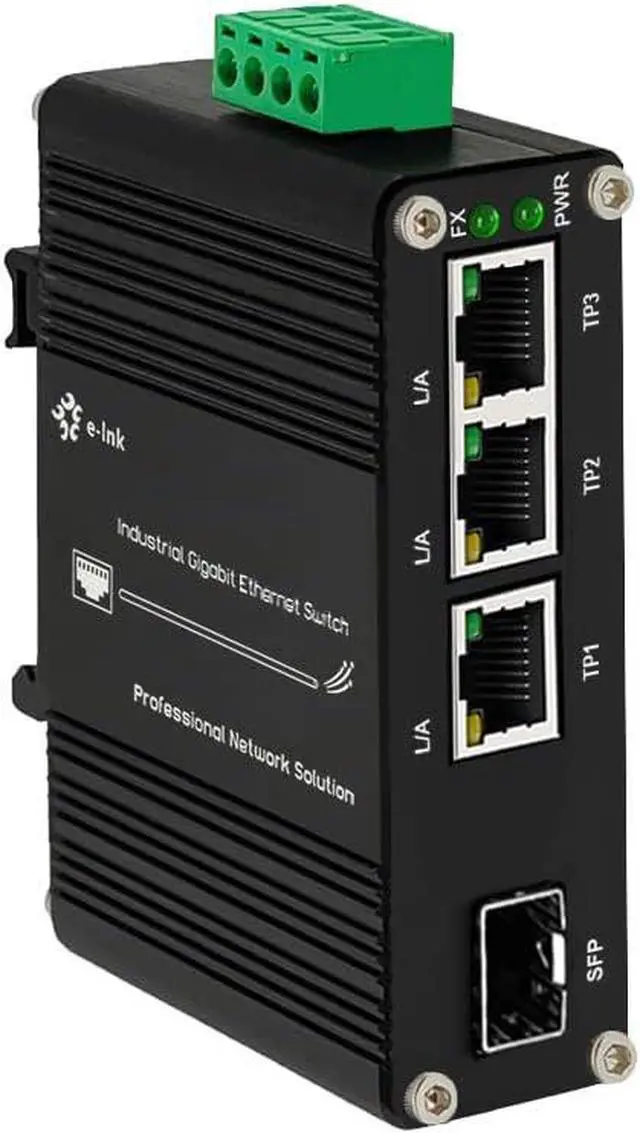

3 Port Hardened Industrial Gigabit Din Rail Switch,10/100/1000Mbps Ethernet Switch Din Rail 24V,8Gbps Switching Capacity,IP40 Rated Unmanaged Network Switch(-40~80°C)

10 10/100/1000Mbps Ethernet PortThis network switch include 3 10/100/1000Base-T RJ45 with Auto MDI/MDI-X, and 1 SFP Port, 100Base-FX or 1000Base-X dual mode (auto detection).

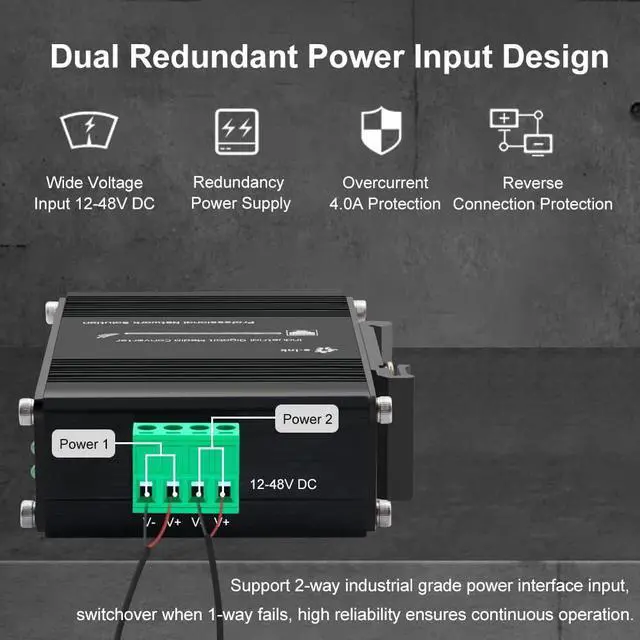

Dual Redundant PowerThe Industrial Network Switch with DC 12-48V wide voltage inputs to provide Redundant Power inputs with function of overload current protection and anti-reverse connection protection. Support 2-way industrial grade power interface input, switchover when 1-way fails, high reliability ensures continuous operation.

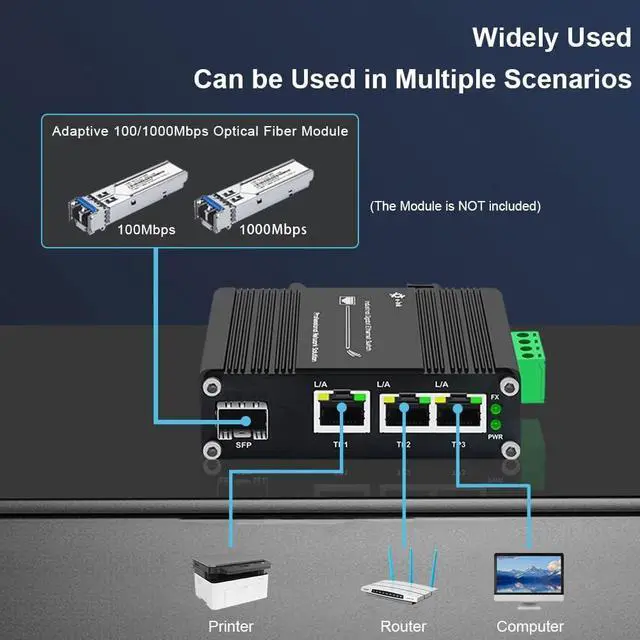

Widely UsedThe Industrial Switch Featured with IP40 Aluminum protection grade, it can work in a wide temperature range from -40°C to 80°C (-40°F to 176°F). 6KV lightning protection, adapt to various harsh environments. Widely used in IP cameras, VoIP Phone, Computer Networks etc.
Unmanaged Plug & PlayNo configuration needed, easy to use, LED Indicator to signal the device status, you can quickly to check the working status and troubleshoot ports of the Industrial Ethernet Switch.
Din-Rail & Wall MountThe Hardened Ethernet Switch comes with 35mm Din-rail Clip and Wall mount accessories.


Standards: IEEE 802.3 10BASE-T, IEEE 802.3 u 100BASE-TX/FX, IEEE 802.3 ab 1000BASE-T, IEEE 802.3 z 1000BASE-X, IEEE 802.3 ae 10GBase-R, IEEE 802.3 p QoS, IEEE 802.1 d Spanning TreeB
Forward & Filtering Rate: 14880pps (10Mbps), 148800pps (100Mbps), 1488000pps (1000Mbps)
Packet Buffer Memory: 4Mbits
Processing Type: Store-and-Forward
Max Packet Length: 9K Bytes Jumbo Frame
Address Table Size: 4K MAC Addresses

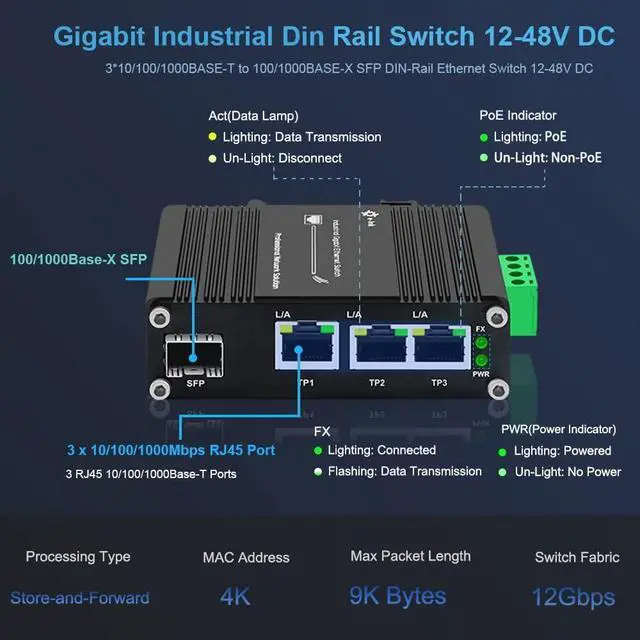

Interface: 3 x 10/100/1000Base-T RJ45 + 1 x SFP 1000Base-X or 100Base-FX (auto detection)
Input Power: 12~48VDC, 4-pin terminal block
Power Consumption: <5W
Operating Temperature: -40°C to 80°C (-40°F to 176°F)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Mount Method Din Rail&Wall Mount
