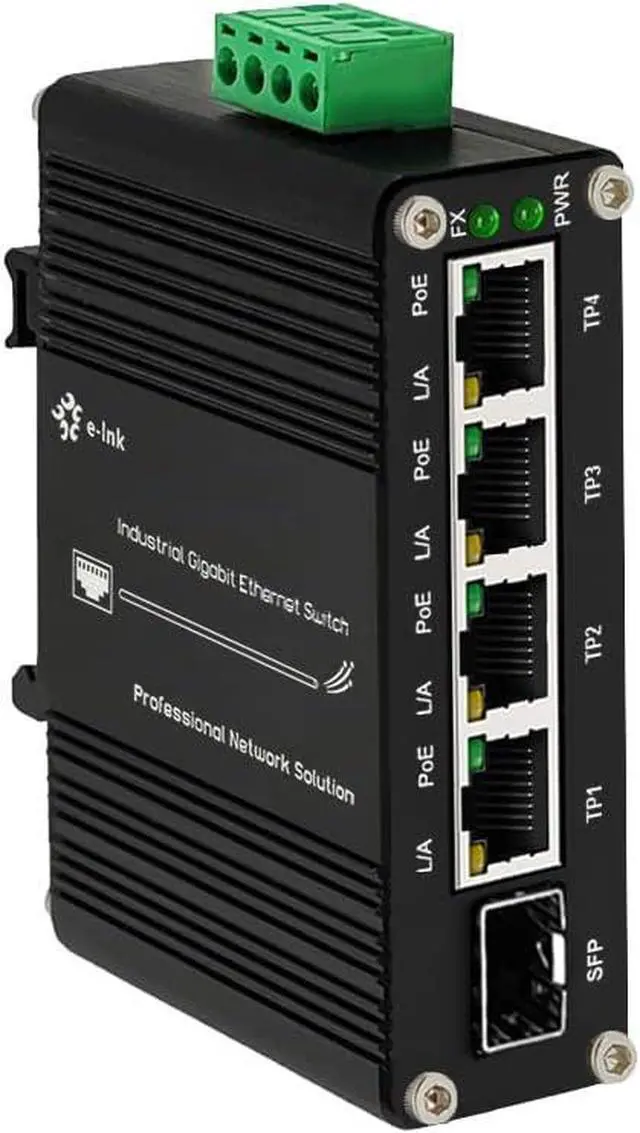

Mini Industrial 4 Port 10/100/1000Mbps Gigabit Ethernet POE + Switch with SFP Port Din Rail/Wall-Mount 4 Port 10/100/1000BASE-T RJ45 + 1 Port 100/1000FX (SFP) Support 12-48V DC
- Number of Ports 4
- Included Components User's Manual, Gigabit Ethernet Switch, Wall Mount
- Compatible Devices Desktop
- Product Dimensions 3.74"L x 2.76"W x 1.15"H
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
10/100/1000Mbps

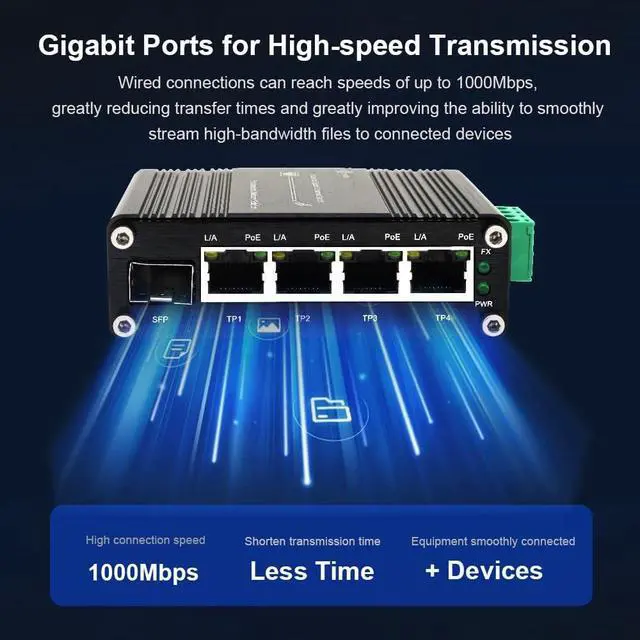

POE+ Ethernet: 4-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function. 1 SFP Port, 100Base-FX or 1000Base-X dual mode (auto detection). Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex.

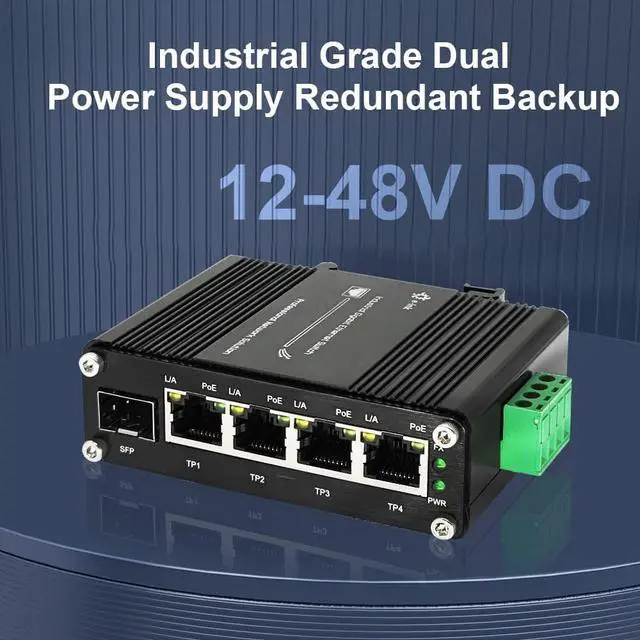

12~48V DC Input: The POE switch support 12~48V DC Input and boost to 48V output. It will solve the problem that you only have 12V or 24V centralized power supply or solar power supply. And also support Redundant power.

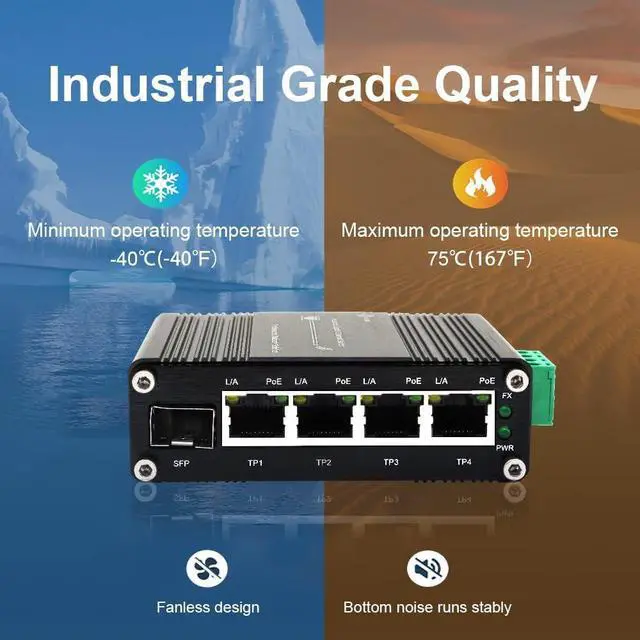

Industrial Grade Quality: Use industrial grade components and aluminum housing, it can work at wide range temperature -40°C to 75°C (-40°F to 167°F). You can use it in outdoor harsh environment.
Aluminum material: Using Aluminum material with exquisite appearance, good corrosion resistance.
Din-Rail & Wall Mount: The Hardened Ethernet POE switch come with 35mm Din-rail Clip and Wall mount accessories.
Key Features:
Casing Material: Aluminum Case
Input Power: 12~48V DC (Terminal Block)
Packet Buffer Memory: 1Mbits
Max Packet Length: 9K Bytes
Switch Capacity: 10Gbps/non-blocking
Transmission Distance: up to 20KM
Power Consumption: < 6W

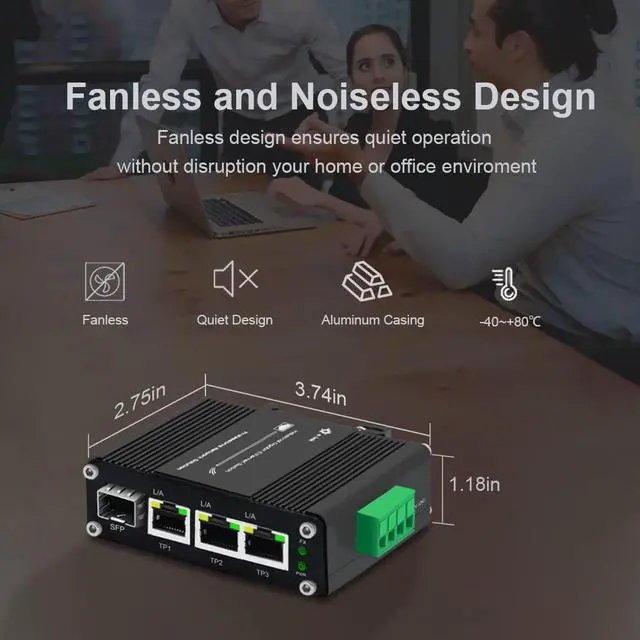

Dimensions (WxDxH): 90 x 70x 29mm( 3.74 x 2.76 x 1.15 in)
Weight: 250g( 0.55 lb)
POE+ Ethernet: 4-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function. 1 SFP Port, 100Base-FX or 1000Base-X dual mode (auto detection). Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex.
12~48V DC Input: The POE switch support 12~48V DC Input and boost to 48V output. It will solve the problem that you only have 12V or 24V centralized power supply or solar power supply. And also support Redundant power.
Industrial Grade Quality: Use industrial grade components and aluminum housing, it can work at wide range temperature -40°C to 75°C (-40°F to 167°F). You can use it in outdoor harsh environment.
Aluminum material: Using Aluminum material with exquisite appearance, good corrosion resistance.
Din-Rail & Wall Mount: The Hardened Ethernet POE switch come with 35mm Din-rail Clip and Wall mount accessories.
Key Features:
Casing Material: Aluminum Case
Input Power: 12~48V DC (Terminal Block)
Packet Buffer Memory: 1Mbits
Max Packet Length: 9K Bytes
Switch Capacity: 10Gbps/non-blocking
Transmission Distance: up to 20KM
Power Consumption: < 6W
Dimensions (WxDxH): 90 x 70x 29mm( 3.74 x 2.76 x 1.15 in)
Weight: 250g( 0.55 lb)
