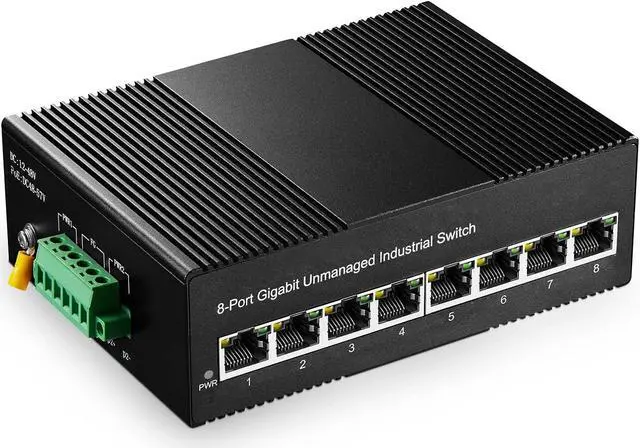

8 Port Gigabit Din Rail Industrial Ethernet Switch, 8 Ports 10/100/1000Mbps, Fanless Wall Mount, with One Power Supply

Product Overview
The ING08-080G is a 8-port gigabit ethernet industrial switch, supports industrial applications requiring high bandwidth or high density connections. The switch is IP40-rated and DIN-rail/Wall mountable. It supports dual power input for power redundancy and wide working temperature range(-40 °C to 85 °C). The switch also provides high EFT and ESD protection for industrial networking applications such as outdoor security surveillance, ITS, power, factory and other outdoor or harsh environments.

Product characteristics

Ensure reliable data transmission and long service life.
It supports full duplex or half duplex mode with automatic negotiation capability.
The network interface supports full-automatic intersection recognition
The built-in store and forward mechanism supports a variety of protocols.
Green energy saving, using low-power CPU.
Working power supply: DC12V-52V provides reverse connection protection and 4A overcurrent protection.
Lightning surge protection (power supply): 5000A (surge waveform is 8 / 20).
It meets the industrial operation standard, and the mean time between failures is more than 300000 Hour.
It meets the industrial operation standard, and the mean time between failures is more than 300000 Hour.




Product

Specifications

Model ING08-080G

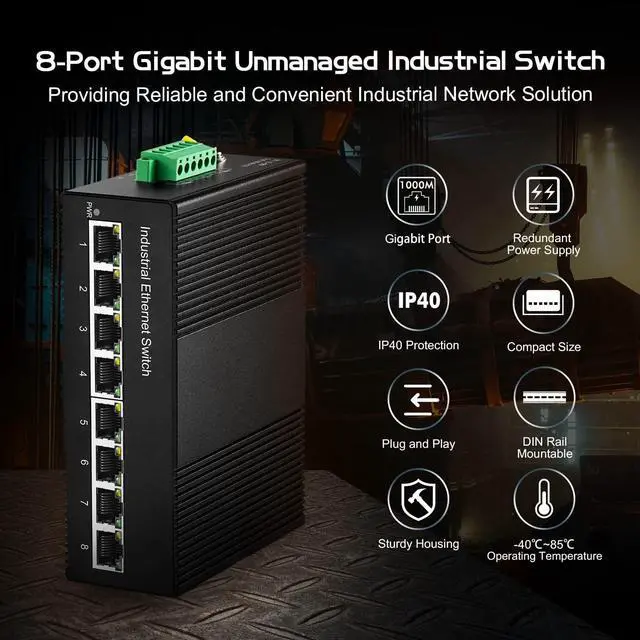

Product Name 8-port 10/100/1000Mbps Industrial Unmanaged Switch
Ethernet Port 8* 10/100/1000Mbps RJ45 Ports
Network Protocol IEEE 802.3 - CSMA/CD, IEEE 802.3 i - 10Base-T; IEEE 802.3 u - 100Base-TX/FX, IEEE 802.3 x - Flow control IEEE 802.3 z - 1000Base-X, IEEE 802.3 ab - 1000Base-T

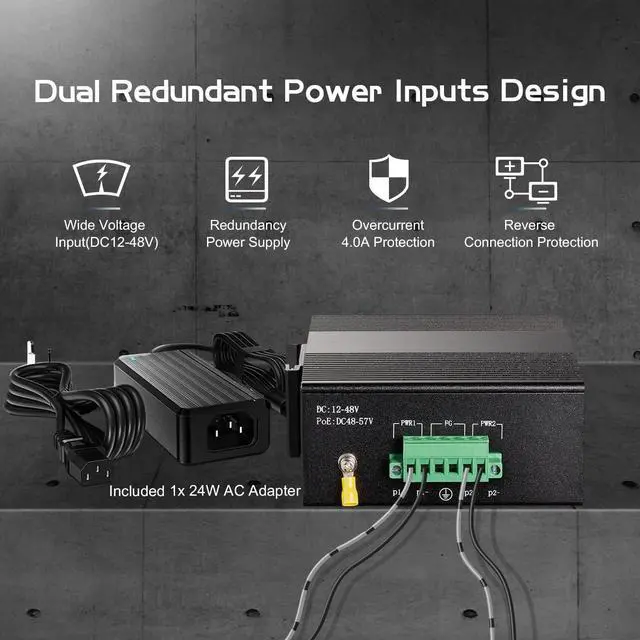

Power Supply Input voltage: DC12V-52V (dual power supply redundant backup), Access
terminal: Phoenix terminal Support dual power redundancy, Support built-in overcurrent 4.0A protect, Support reverse grounding protection
Switch Properties Switching capacity: 16Gbps
application level: layer 2
Overall packet forwarding rate: 11.904M pps
MAc table: 8K
Package buffer: 1M
Delay time: < 4 s Switching mode: store forward power consumption: < 3W
LED indicators Power indicator: PWR
interface indicator: electric port and optical port (Link /Act)
Degree of Protection IP40
Mechanical Properties Enclosure: IP40 protection grade, metal enclosure
Installation: DIN rail type, wall mounted
Heat dissipation mode: natural cooling without fan
Weight: 0.64 kg

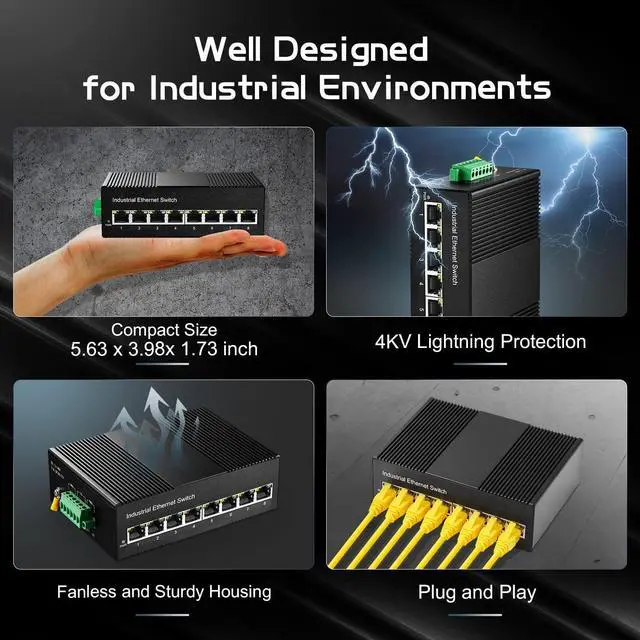

Dimensions: 143 x 101 x 44mm (L x W x H)
Industry standard FCC
Part 15 Subpart B Class A, EN 55022 Class A, EMS: IEC
(EN) 61000-4-2 (ESD): ±8kV (contact), ±15kV (air)
IEC (EN) 61000-4-3 (RS): 10V/m(8~1000MHz), IEC
(EN) 61000-4-4 (EFT):
PowerPort: ±4kV;
Data Port: ±4kV, IEC
(EN) 61000-4-5 (Surge): Power
Port: ±2kV/DM, ±4kV/CM;
Data Port: ±4kV, IEC61000-4-6
(CS): 10V(150kH~80MHz)/IEC (EN) 61000-4-16 (CM
EMI): 30V cont. 300V, 1s, IEC60068-2-27 (Shock) /EC60068-2-32 (Freefall), IEC 60068-2-6 (Vibration)

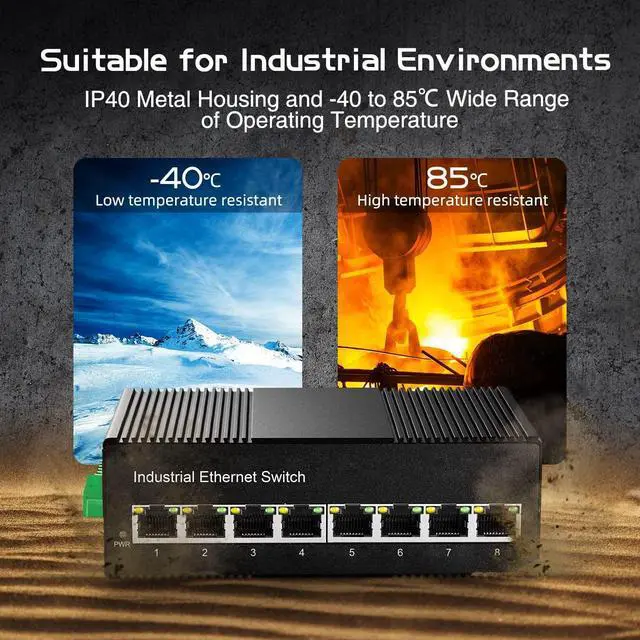

Work Environment Operating temperature: -40~85(-40~185°F), Storage
temperature: -40~85(-40~185 °F), Relative
humidity: 5%~95%( (no condensation)
