Port Gigabit PoE Din Rail Industrial Ethernet Switch, 8 PoE IEEE802.3af/at, 16Gbps Switching Capacity, with One 96W PoE Power Supply

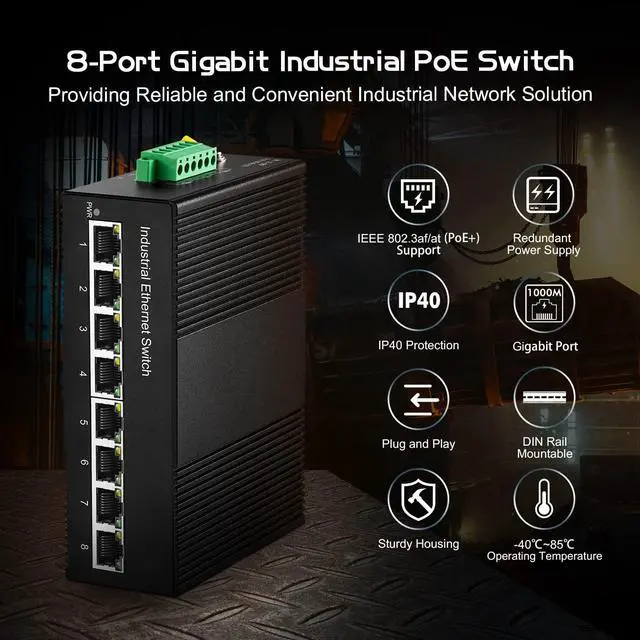

Product Overview

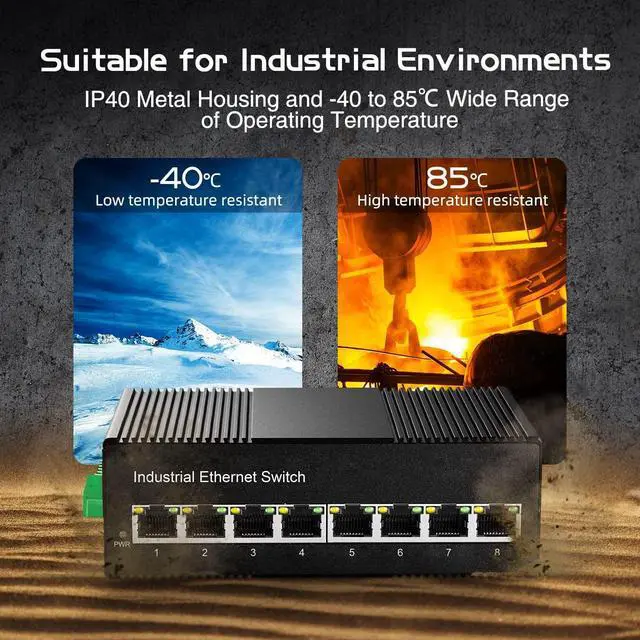

The ING08-080GP is a 8-port gigabit industrial PoE switch supports the IEEE 802.3 af/at standard. Port 1-8 provide up to 30W via a single port. The switch is IP40-rated and DIN-rail/Wall mountable. It supports dual power input for power redundancy and wide working temperature range(-40 °C to 85 °C). The switch also provides high EFT and ESD protection for industrial networking applications such as outdoor security surveillance, ITS, power, factory and other outdoor or harsh environments.

Product characteristics

Ensure reliable data transmission and long service life.

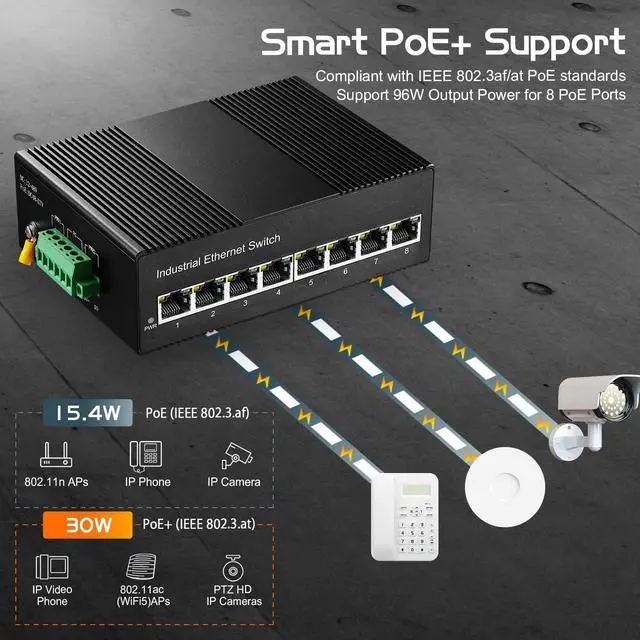

Compliant with IEEE 802.3 af( 15.4W ), IEEE 802.3 at (30W) PoE standards.
It supports full duplex or half duplex mode with automatic negotiation capability.
The network interface supports full-automatic intersection recognition
The built-in store and forward mechanism supports a variety of protocols.
Green energy saving, using low-power CPU.
Working power supply: DC48V-52V provides reverse connection protection and 4A overcurrent protection.
Lightning surge protection (power supply): 5000A (surge waveform is 8 / 20).
It meets the industrial operation standard, and the mean time between failures is more than 300000 Hour.



Product

Specifications

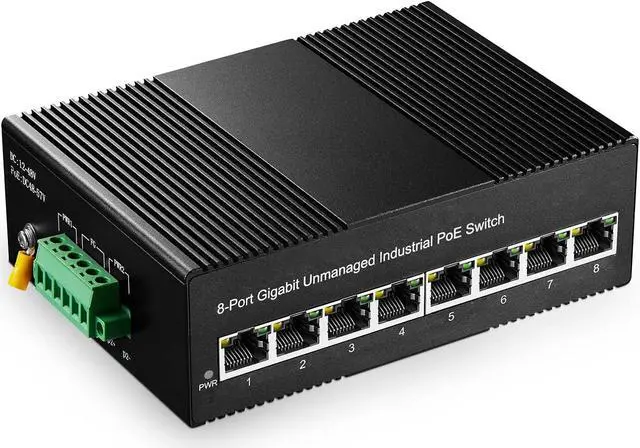

Model ING08-080GP
Product Name 8-port 10/100/1000Mbps Industrial Unmanaged PoE Switch
Ethernet Port 8* 1000Mbps PoE+ Ports
Network Protocol IEEE 802.3 - CSMA/CD, IEEE 802.3 i - 10Base-T, IEEE 802.3 u - 100Base-TX/FX, IIEEE 802.3 x - flow control
PoE Standard meet IEEE 802.3 af /IEEE 802.3 at, Single
port maximum: 15.4W (IEEE 802.3 af), Single
port maximum: 30W (IEEE 802.3 at), PoE
Port output voltage: DC 48-57V, PoE
Power supply core: 1/2+; 3/6-

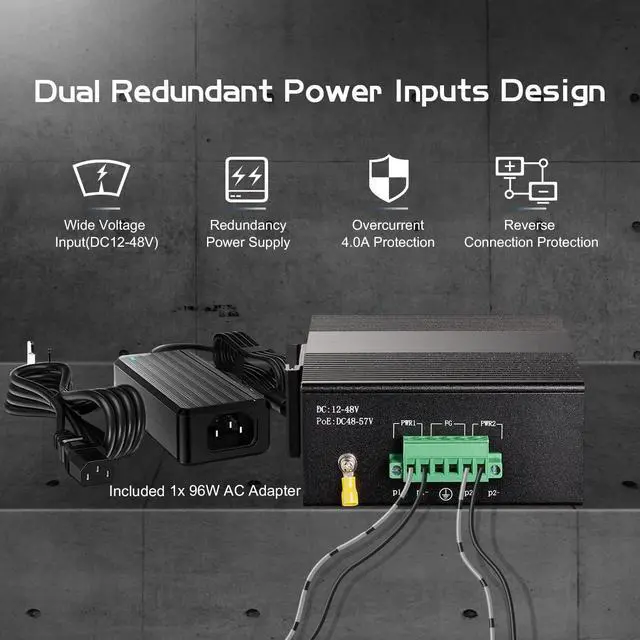

Power Supply Input voltage: DC48V-52V (dual power supply redundant backup), Access
terminal: Phoenix terminal Support dual power redundancy, Support built-in overcurrent 4.0A protect, Support reverse grounding protection
Switch Properties Switching capacity: 14Gbps
application level: layer 2, Overall
packet forwarding rate: 2.976M pps, Mac
table: 8K, Package
buffer: 1M, Delay
time: < 4s, Switching mode: store forward power consumption: < 3W
LED indicators Power indicator: PWR, interface
indicator: electric port and optical port(Link/ACT)
Degree of Protection IP40

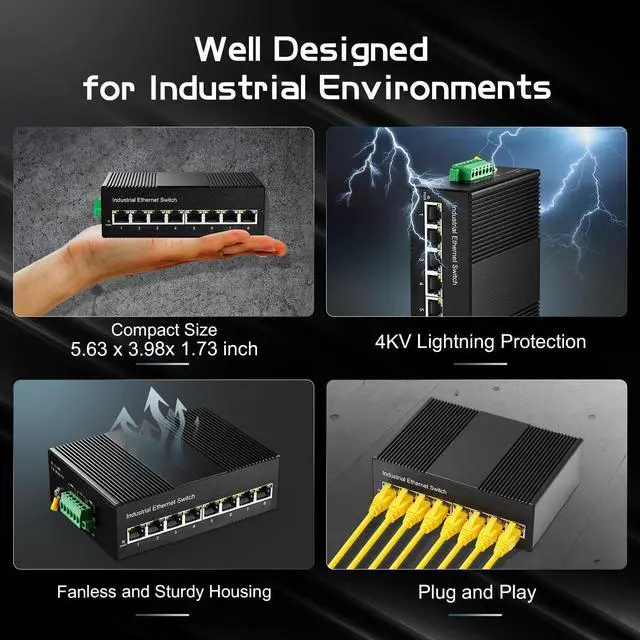

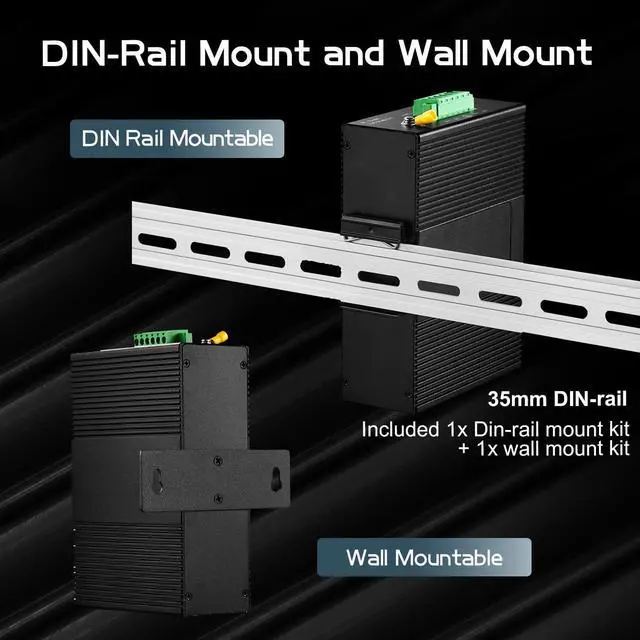

Mechanical Properties Enclosure: IP40 protection grade, metal enclosure, Installation: DIN rail type, wall mounted, Heat
dissipation mode: natural cooling without fan, Weight: 0.36 kg, Dimensions: 118 x 86 x 39mm (L x W x H)
Industry standard FCC
Part 15 Subpart B Class A, EN 55022 Class A, EMS: IEC
(EN) 61000-4-2 (ESD): ±8kV (contact), ±15kV (air)
IEC (EN) 61000-4-3 (RS): 10V/m(8~1000MHz), IEC
(EN) 61000-4-4 (EFT):
PowerPort: ±4kV;
Data Port: ±4kV, IEC
(EN) 61000-4-5 (Surge): Power
Port: ±2kV/DM, ±4kV/CM;
Data Port: ±4kV, IEC61000-4-6
(CS): 10V(150kH~80MHz)/IEC (EN) 61000-4-16 (CM
EMI): 30V cont. 300V, 1s, IEC60068-2-27 (Shock) /EC60068-2-32 (Freefall), IEC 60068-2-6 (Vibration)
Work Environment Operating temperature: -40~85(-40~185°F), Storage
temperature: -40~85(-40~185 °F), Relative
humidity: 5%~95%( (no condensation)
