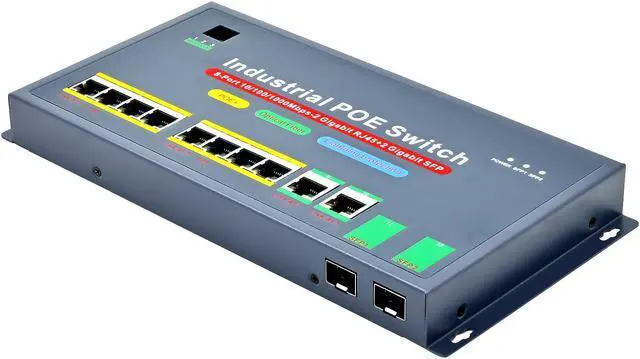

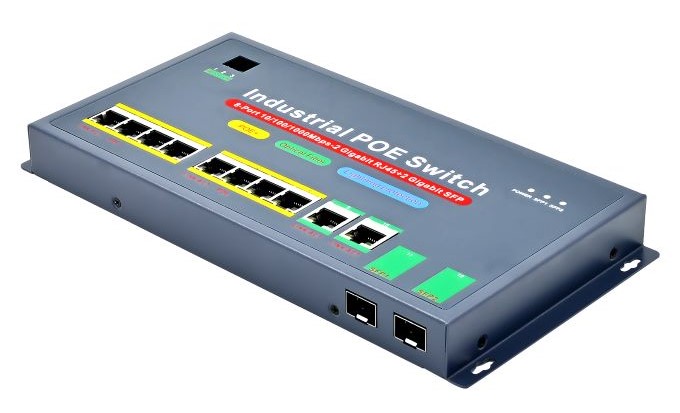

PoE-3612-8H Make Wiring More Convenient and Safer.
PoE-3612-8H plug and play, 4 uplinks ports and 8 PoE ports, Each PoE port max output 30W.
POE-3612-8H support 10/100/1000Mbps autonegotiation for optimal speed detection through RJ45 Category 6, 5 or 5e cables.
It also supports standard auto-MDI/MDIX that can detect the type of connection to any Ethernet device without requiring special straight or crossover cables.

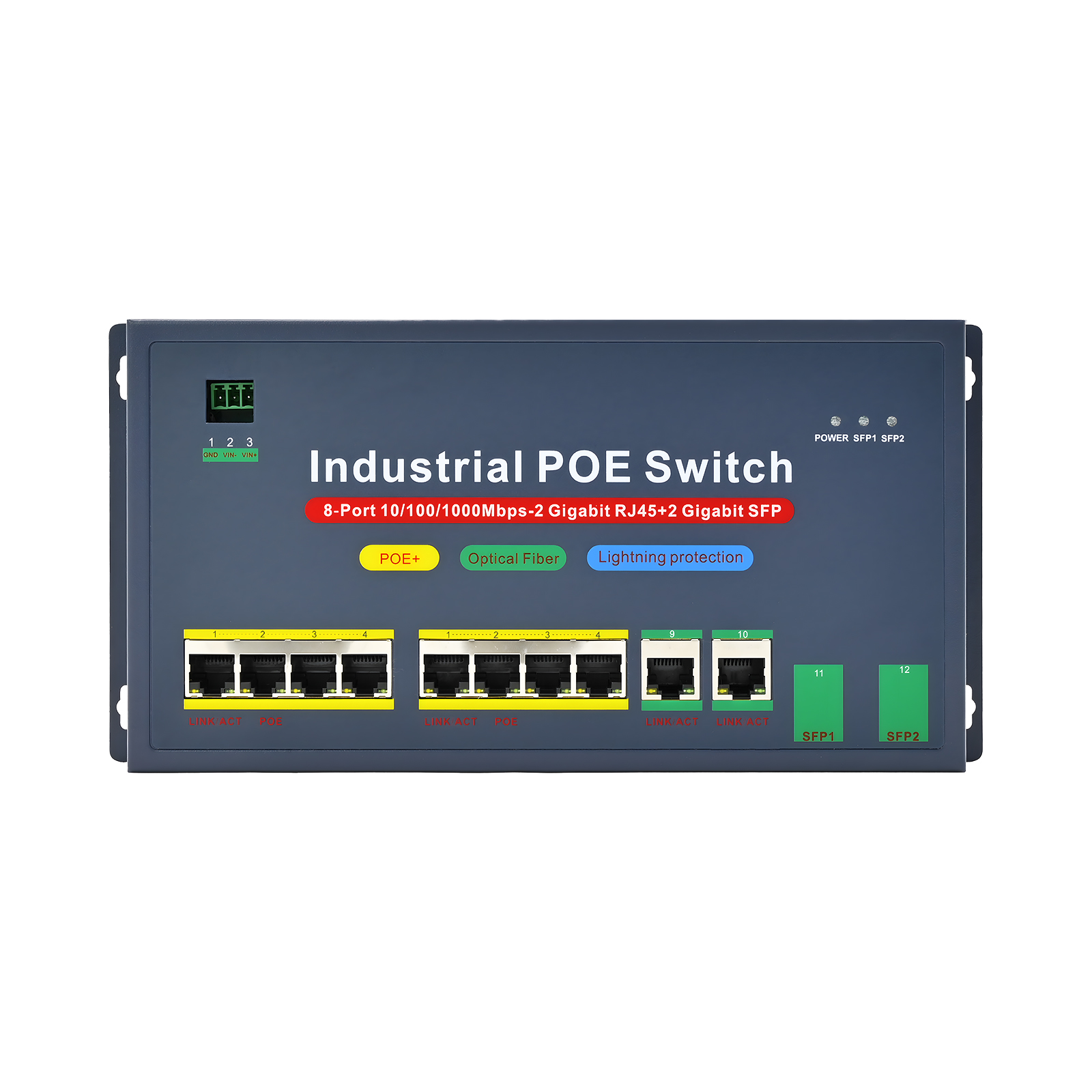

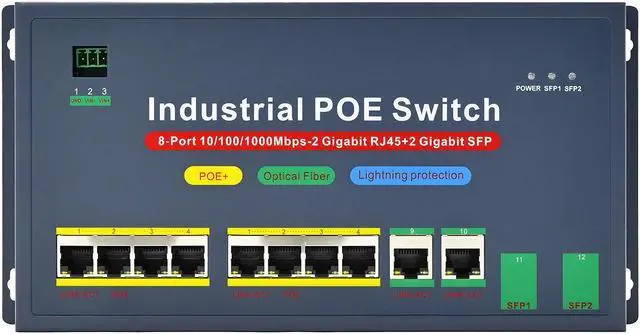

2 extra 10/100/1000Mbps RJ45 and 2 extra 1.25Gbps SFP slots can be used for uplink.
Easy to use
The PoE-3612-8H is easy to use as there is no setup required, plug and play after inputting AC power, 10/100/1000Mbps adaptive, power is automatically transferred between connected devices.
Installation

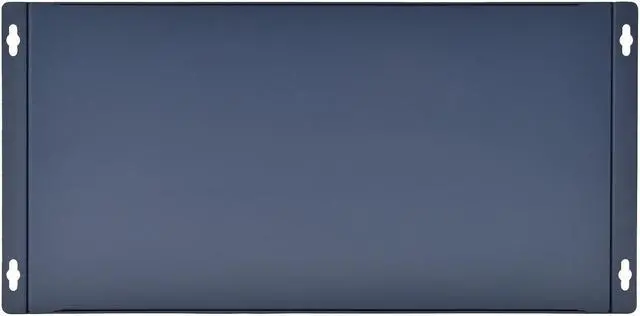

The PoE-3612-8H can be installed in two ways. The PoE-3612-8H can be placed on a table or screwed to a wall. The PoE-3612-8H can be mounted on a table or screwed to a wall, as long as the distance of a single network device does not exceed 100 metres. A POE extender is required for distances greater than 100 metres.
Automatic Detection
The PoE-3612-8H complies with the standard PoE protocol and will be automatically detected before power is supplied.
Numerous Applications
PoE-3612-8H has a wide range of applications, such as surveillance, conference calls, WIFI coverage, etc. PoE-3612-8H is fully compatible with lP cameras, access points, IP phones, computers, printers, and more.
| Voltage Range | AC100-240V |
|---|---|
| Network Ports | 1~8 Ports: 10/100/1000Mbps Ethernet port, adaptive control Uplink: 2 1.25Gbps SFP and 2 10/100/100Mb |
| PoE Agreement | IEEE 802.3af/at standards |
| Switch Capacity | 25Gbps |
| Working Temperature | minus 30 °C to 70 °C |
| Storage Temperature | minus 40 °C to 85 °C |
| Dimensions (L*W*H) | 245X122X25mm |
| MTBF | >50000h |
| Installation method | Wall-mount and desktop-mount |
| Color | Blun |
