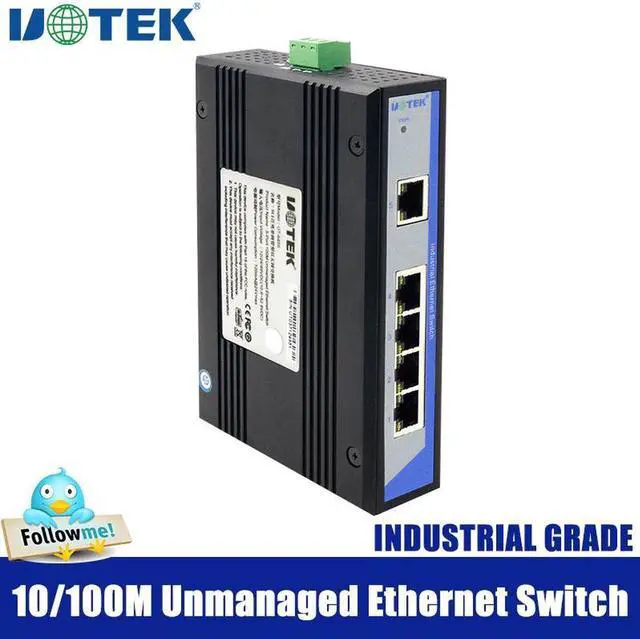

UTEK Industrial Grade 10/100M 5 Ports Unmanaged Ethernet Switch DIN-rail without Power Supporting Full-duplex or Half-duplex Auto MDI/MDI-X UT-6405

Parameter:
>>Standards
IEEE 802.3 10Base-T
IEEE 802.3 u 100Base-T (X) & 100Base-FX

>>Ports
RJ45 port: 5x10/100Base-T (X) port, auto detection, full/half-duplex, auto MDI/MDI-X
LED indication: PWR, 1~5 RJ-45 port indicator

>>Power requirement
Voltage input:
- DC9-48V, reverse polarity protection
Power consumption: 120mA@24V max.

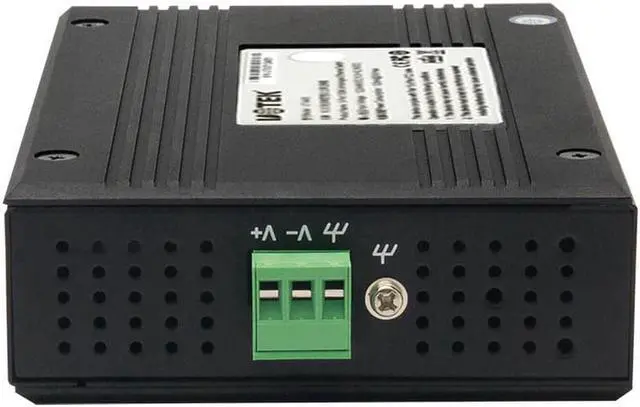

Terminal block: 1 pluggable 3-pin terminal block
Overload protection: Yes
Reverse polarity protection: Yes

>>Mechanical Characteristics
Case: steel
Installation: DIN-Rail/wall-mounted
Dimension (W x H x D): 150mm×30mm×100mm

>>Environment
Operating temperature: -10~60
Storage temperature: -40~85
Relative humidity: 5~95% (non-condensing)

>>Industrial standards
EMI: CE, FCC;
EMI: FCC Part 15 Subpart B classA, EN55022 class A
EMS:
IEC (EN) 61000-4-2 (ESD)
IEC (EN) 61000-4-3 (RS)
IEC (EN) 61000-4-8
IEC 60068-2-27 (Shock)
IEC 60068-2-32 (Freefall)
IEC 60068-2-6 (Vibration)

UT-6405 is a 5-port 10/100Mbps unmanaged Ethernet switch. It provides DC input, reverse polarity protection; at the same time, it supports DIN-Rail and wall-mounted under industrial standard, easy for installation.
