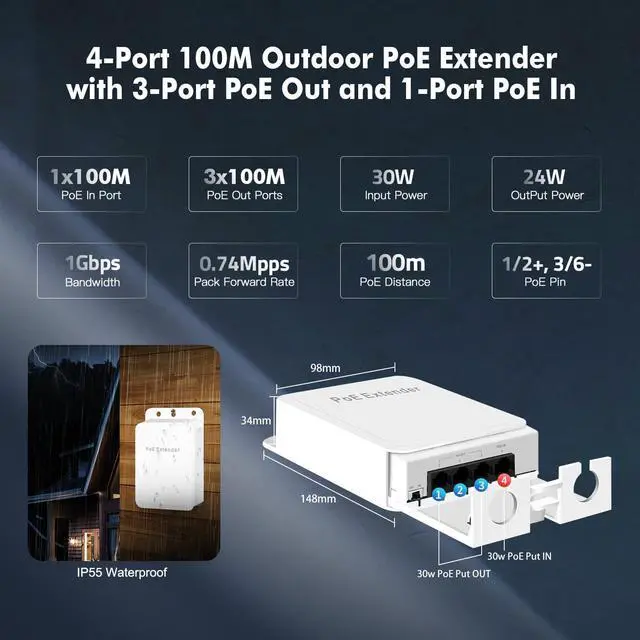

Outdoor PoE Passthrough Switch - 1 In 3 Out Extender, IEEE802.3af/at Powered, 100Mbps Ethernet, Wall Mount Waterproof Plug and Play

PoE PassthroughInclude 1 PoE In 3 PoE Out Ports, 10/100Mbps rate. Powered by PoE network, no AC power supply required

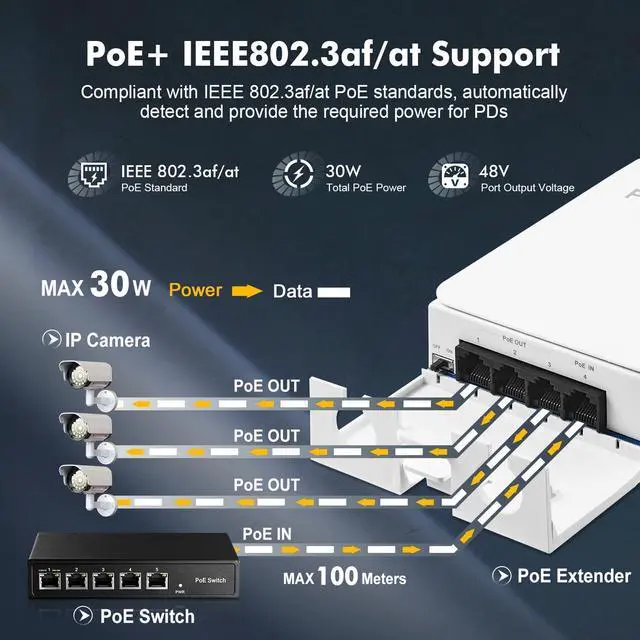

IEEE 802.3 af/at Support standard PoE, Input Max 30W, Output Max 24W, Average 8W per port. PoE Voltage 44-57 Vdc.
PoE pin:
Input: 1/2 (+), 3/6 (-), 4/5(+), 7/8(-);
Output: 1/2 (+), 3/6 (-)

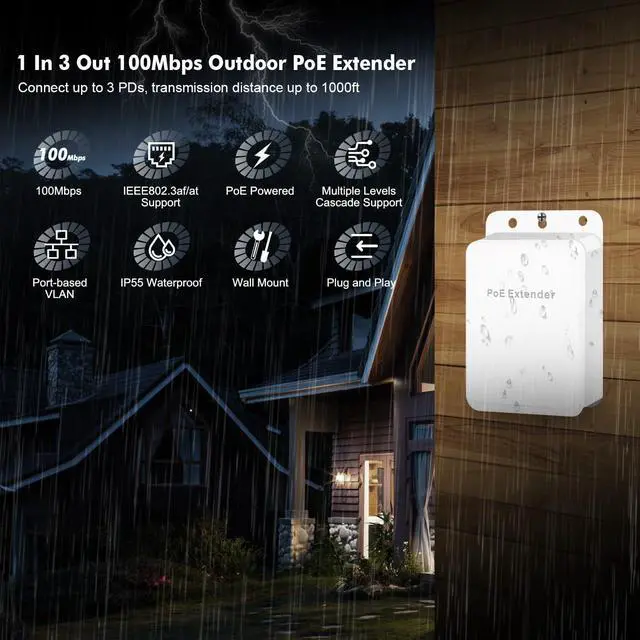

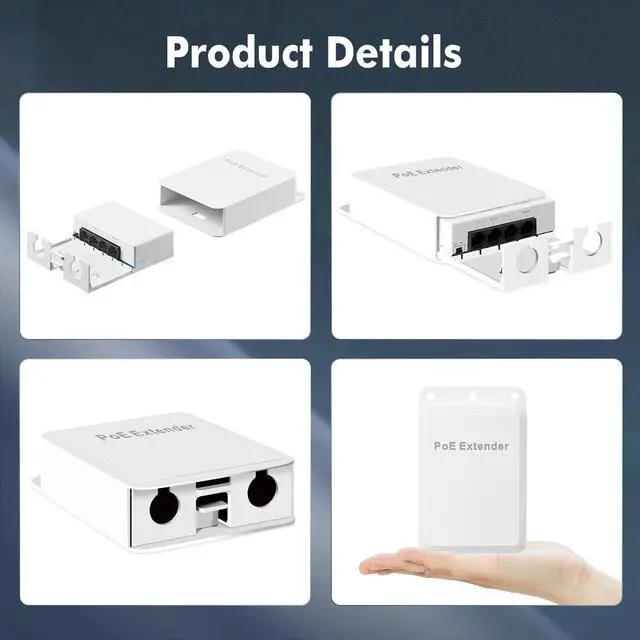

Outdoor weatherproof Industrial grade ABS polymer material shell, cable interface all protected in the shell, with better waterproof, dustproof, snowproof effect, more suitable for outdoor use; also suitable for complex indoor environment, such as warehouses, computer rooms, garages, attics, etc.
Plug & Play Support power detection automatically detect devices, just plug in the ethernet cable, connect directly to the device, led display the port status, without configuration. *Please note not support 24V passive PoE*. Support VLAN mode and extension 250m, controlled by dipswitch

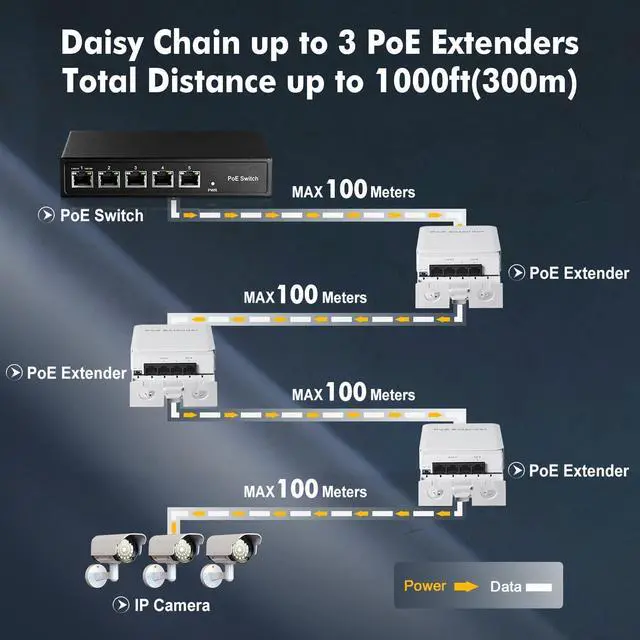

Easy Install Support wall mount, smaller size save space, suitable for many positions. Support 3-level cascading, can connect poe AP, camera, phone and other POE devices, extender POE coverage at low cost
Powered by PoEThrough the PoE in port, powered by POE network, maximum support 30W IEEE3023af/at standard input, does not use the power adapter for power supply, more convenient and safe to use in outdoor places where there is no power supply.
