iszo 1.25G/2.5G XPON/GPON/EPON ONU,SFP Stick ONU, Support MAC SN LOID Modify,SFP Port,for Network Switch/Router/Media Converter,Optical Fiber Modem

2.5G STICK + 2.5 MEDIA CONVERTER = 2.5G GPON ONU
XPON STICK is an ONU with SFP interface, small and exquisite, plug and play, with good heat dissipation and shielding effects.Hot-swappable to work in the SFP slots of switches, cameras and other equipment, so that the whole machine can be directly connected to the GPON or EPON optical network, which can replace the external ONU and improve system integration Spend.
Support MAC/SN/LOID Modify,You can copy the content from the old ONU to the new one through the web management.
Size:31.10*5.51*5.51 inches
3.3V power supply
The longest transmission distance is 20KM

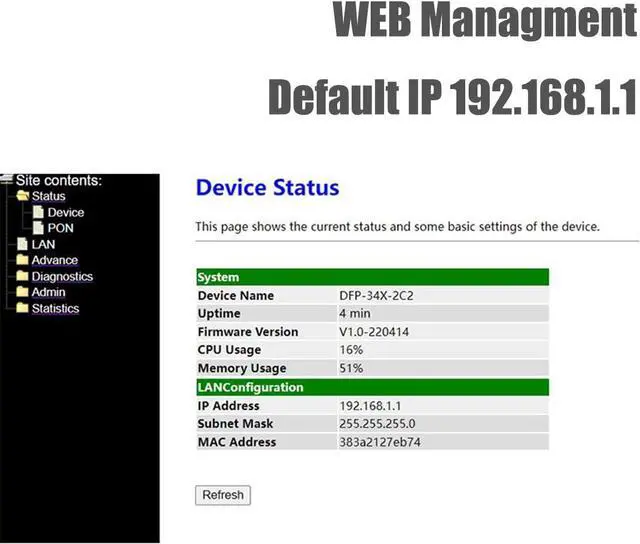

Support WEB management

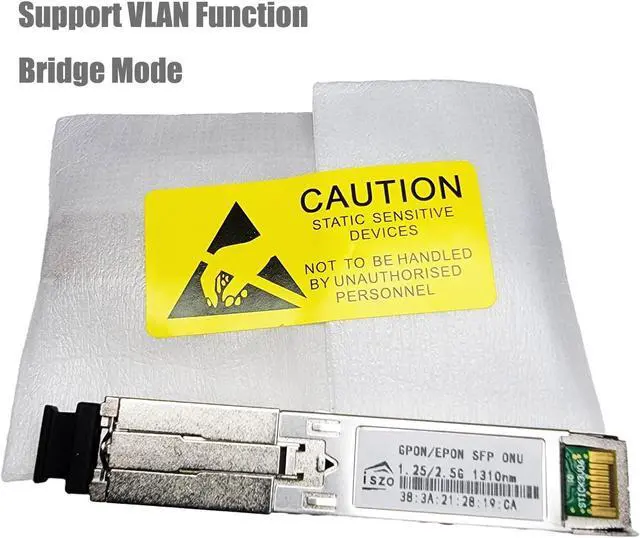

Support VLAN function configuration
Support loop detection
Module belongs to bridge mode
Support dynamic bandwidth allocation
iszo 2.5G optical fiber transceiver is a kind of photoelectric converter switching between Ethernet electrical signals and photoelectric signals. Users can choose different models of optical modules according to their needs, which can realize the seamless connection between the optical signals of 100 / 1000M / 2.5 G Ethernet and electrical signals.It not only extends the transmission distance, but also has the advantages of isolation protection, good data confidentiality, stable work, easy maintenance and so on.

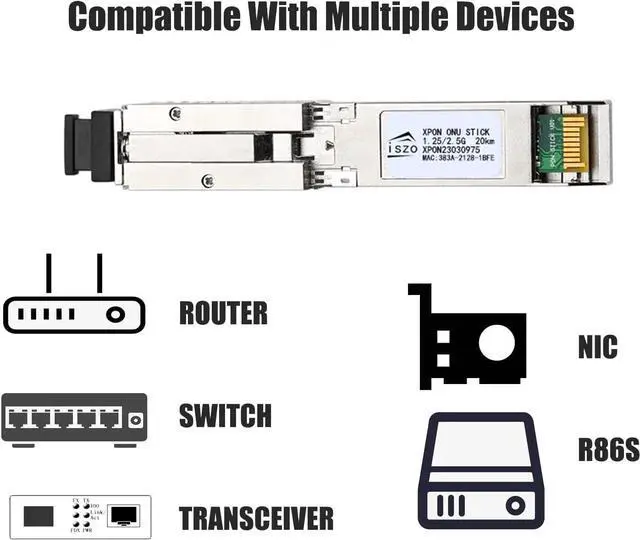

The iszo 2.5g media converter transceiver is compatible with a wide range of brand names, including NOKIA, HUAWEI, ODI, and more. It works with 2.5G/1G GPON SFP ONU STICKs, such as the 5671A and G-010S-P.
iszo 2.5G media converter transceiver offers lightning-fast, full-duplex/half-duplex Ethernet capabilities, allowing for smooth and reliable data transmission. Plus, with its self-contained TTL port, this converter transceiver is perfect for those who have specific firmware upgrade requirements.
Support the interconversion between 100M / 1G/2.5G Base-T and 2.5G Base-SX / LX;
One full-duplex 2.5Gbps light port, one 100M / 1G / 2.5G adaptive electric port;
100M / 1G/2.5G rate adaptation, MDI / MDI-X adaptation, full / half-duplex adaptation;
Optical links and electrical links have a complete connection / active status indicator light
Optical port supports single mode / multimode, single fiber, double fiber;
Support for 12V DC input;
Support for up to 4KV of port lightning protection;
Using low power consumption chip, low heat rate, can work stably for a long time.
Kind reminder:
2.5G media converter, plug and play, does not support xgs pon
switch status off=100M/1000M/2.5G auto
switch status on=1000M
