XG-PON/XGS-PON ONU Stick SFP+ Transceiver with 8311, 10G ONU Stick for FTTx Networks, Compatible with Huawei/ZTE/Ubiquiti/Mikrotik

Applications
Residential home gateway
Network switch/router, VDSL MDU, and G.fast DPU
Mobile backhaul

Standard
Complies with ITU-T G.987.2
Complies with ITU-T G.9807.1, G.9807.2
ITU-T G.988 OMCI L2 MAC Bridge (Up to 64 L2 bridges)
8275/Y.1369/IEEE 1588v2
IEEE 802.1ag and ITU-T Y.1731 Ethernet OAM delay & loss measurement hardware support

Custom XGS-PON SFP+ Stick Module, Support 8311 community firmware.
High performance with 1 GB of RAM

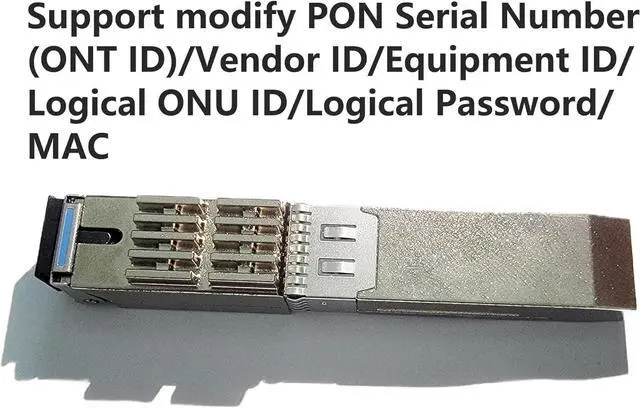

Support modify PON Serial Number (ONT ID)/Vendor ID/Equipment ID/Logical ONU ID/Logical Password/MAC..

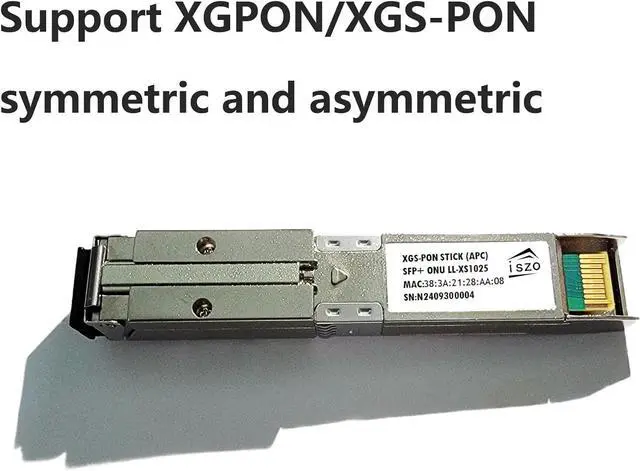

Support XGS-PON/XGPON network solution
Single fiber bi-directional data links symmetric TX953 Gb/s / RX 9.953 Gb/s with MAC function
SFP package with SC APC/UPC receptacle
Single 3.3 V power supply
Hot-pluggable capability
High power 1270 nm DML DFB LD and high sensitivity 1577 nm APD

Support 20 km transmission distance with SMF
CML compatible data input/output interface
Low power dissipation < 3 W
Low EMI and excellent ESD protection
Digital diagnostic monitor interface
RoHS-6 compliance
Case temperature range: Commercial: 0 °C to 80 °C
Supports Synchronous Ethernet (SyncE)

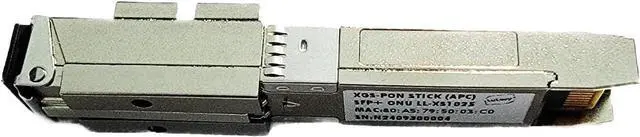

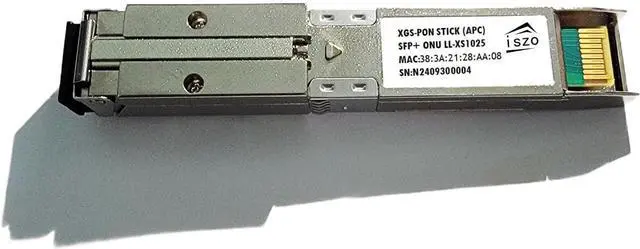

ISZO LL-XS1025 XGSPON STICK ONU Support XGSPON or XGPON
