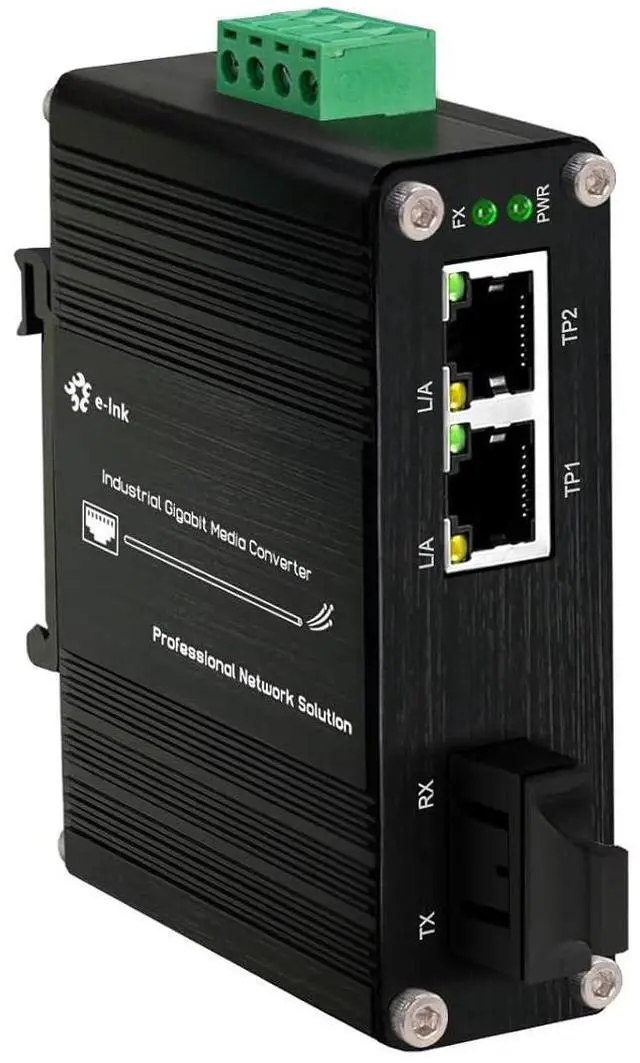

Mini Industrial 2 Ports Gigabit Media Converter Din Rail Mount Hardened Fiber Media Converter Ethernet Media Converter Single Mode 20km with SC Optic + 2 Rj45 Port 12~48V DC Input
- Auto Detection 100/1000Base-FX The SC port support 155Mbps or 1.25G SC module, it means you can use other device with 100M or 1000M fiber port on the other side.
- Gigabit Ethernet with Auto-Sensed 2 10/100/1000Base-Tx RJ45 with auto MDI / MDI-X function and support full-duplex, half-duplex and its auto-sensed. Don't need to worry about the compatible problem.
- Industrial Grade Quality Use industrial grade components and aluminum housing, transceiver can work at wide range temperature -40°C to 75°C (-40°F to 167°F). You can use it in outdoor harsh environment.
- Din-Rail & Wall Mount The media converter come with 35mm Din-rail Clip and Wall mount accessories. And it has mini size, dont need to worry about not having enough space to install it.

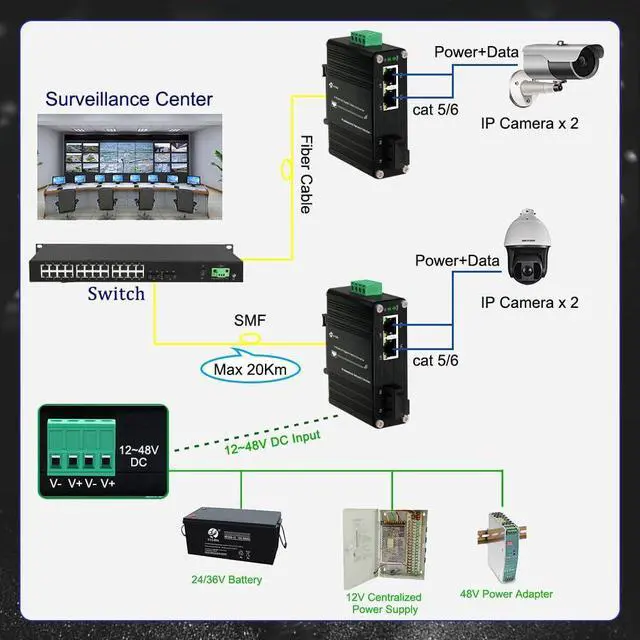

- Single Mode up to 20km SC media converter can extend the IP Ethernet signal up to 12.43 Miles (20km) over single mode dual-fiber cable. You can use it in IP surveillance system or extend Ethernet IP signal.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Previous page
Next page
Mini Industrial 2 port Ethernet Media Converter
Wall Mount
Fiber Media Converter Users Manual

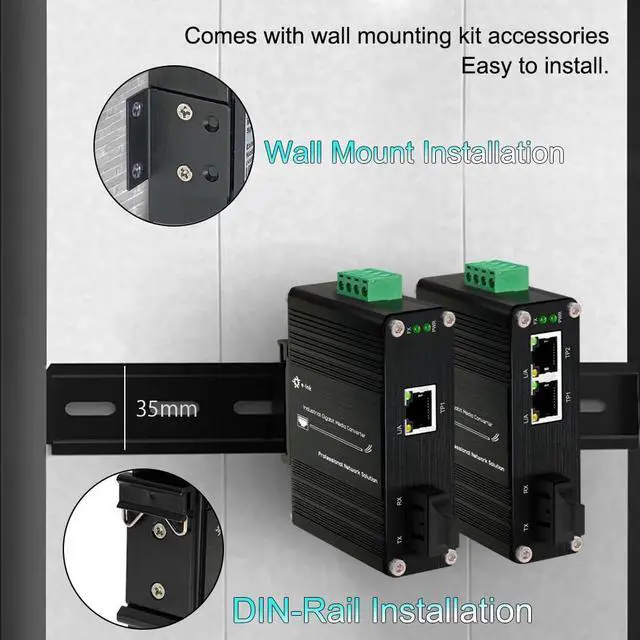

Support Din-Rail & Wall Mount installation.
This Media Converter size is 3.74x2.76x1.18in (95 x 70 x 30 mm), even smaller than other similar Ultra compact design.
Processing Type: Store-and-Forward
Standard: IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T , IEEE802.3z 1000Base-SX/LX Gigabit Ethernet
Packet Buffer Memory: 1Mbit
Max Packet Length: 9K Bytes.
Wavelength: 1310nm
Transmission distance: Single mode Dual-fiber 12.43 Miles (20km)
Casing Material: Aluminum Case
Power consumption: <5W
2-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function, Supports Full/Half-duplex, Auto-negotiation.
Build-in SC fiber module, 100/1000Base-FX(X) Single mode, support both gigabit and fast Ethernet.
Adaptive Power Input: 12-48V DC.

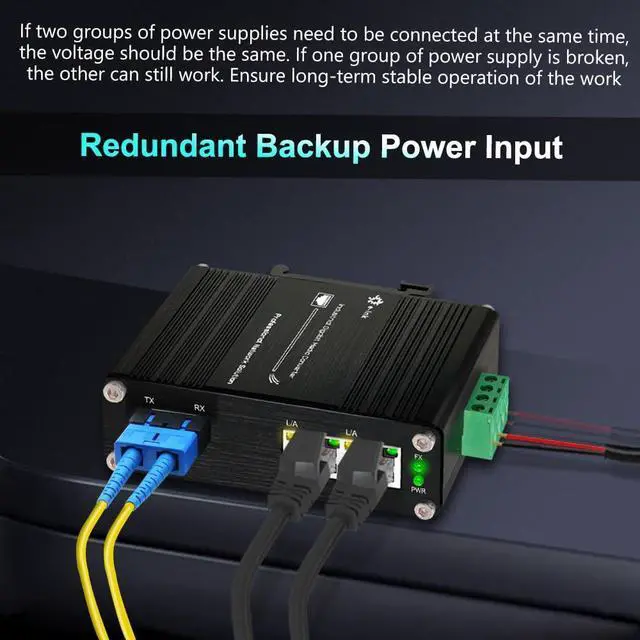

Support Redundant power input.
Support hot plug and hot swap.
With Power Led indicator to monitor work status.
Using Aluminum material with good corrosion resistance.
No fan quiet operation.
No configuration needed.
Low-power consumption CPU.
Industrial Grade Quality, Widely application.

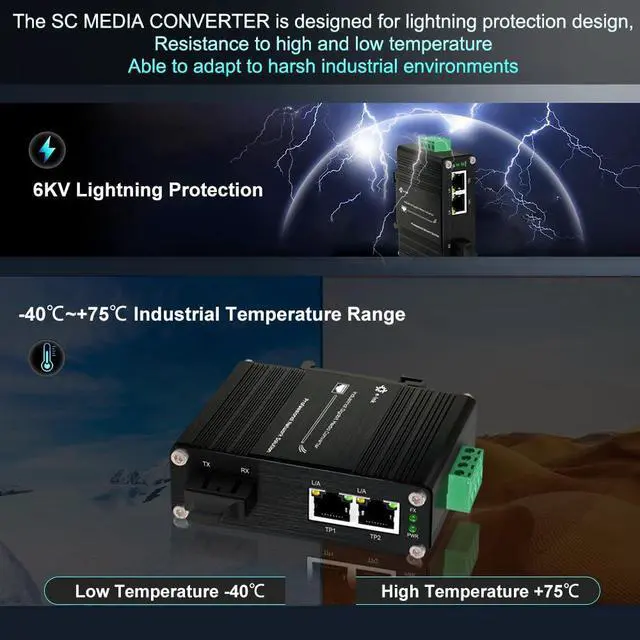

Adopts surge protection design and makes it can be used in harsh environment and can survive from lightning strikes up to 6KV.
The operation temperature is -40 to 75 ( -40 to 167).
Industrial Gigabit Switch 4ch 3G SDI Fiber Converter Gigabit Media Converter SC Din Rail Power Supply 24W Din Rail Power Supply Din Rail AC/DC Power Supply Best choice for you Industrial Managed Switch Mini 4K HDMI Fiber Extender How did we get our start? Professional Testing Process Proven Quality About this item: Specification: SC - 100/1000Mbps adaptive Adaptive Power Input 12-48V DC High quality Aluminum Casing Lighting Surge Protection 6KV
Next page
Mini Industrial 2 port Ethernet Media Converter
Wall Mount
Fiber Media Converter Users Manual
Support Din-Rail & Wall Mount installation.
This Media Converter size is 3.74x2.76x1.18in (95 x 70 x 30 mm), even smaller than other similar Ultra compact design.
Processing Type: Store-and-Forward
Standard: IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T , IEEE802.3z 1000Base-SX/LX Gigabit Ethernet
Packet Buffer Memory: 1Mbit
Max Packet Length: 9K Bytes.
Wavelength: 1310nm
Transmission distance: Single mode Dual-fiber 12.43 Miles (20km)
Casing Material: Aluminum Case
Power consumption: <5W
2-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function, Supports Full/Half-duplex, Auto-negotiation.
Build-in SC fiber module, 100/1000Base-FX(X) Single mode, support both gigabit and fast Ethernet.
Adaptive Power Input: 12-48V DC.
Support Redundant power input.
Support hot plug and hot swap.
With Power Led indicator to monitor work status.
Using Aluminum material with good corrosion resistance.
No fan quiet operation.
No configuration needed.
Low-power consumption CPU.
Industrial Grade Quality, Widely application.
Adopts surge protection design and makes it can be used in harsh environment and can survive from lightning strikes up to 6KV.
The operation temperature is -40 to 75 ( -40 to 167).
Industrial Gigabit Switch 4ch 3G SDI Fiber Converter Gigabit Media Converter SC Din Rail Power Supply 24W Din Rail Power Supply Din Rail AC/DC Power Supply Best choice for you Industrial Managed Switch Mini 4K HDMI Fiber Extender How did we get our start? Professional Testing Process Proven Quality About this item: Specification: SC - 100/1000Mbps adaptive Adaptive Power Input 12-48V DC High quality Aluminum Casing Lighting Surge Protection 6KV
