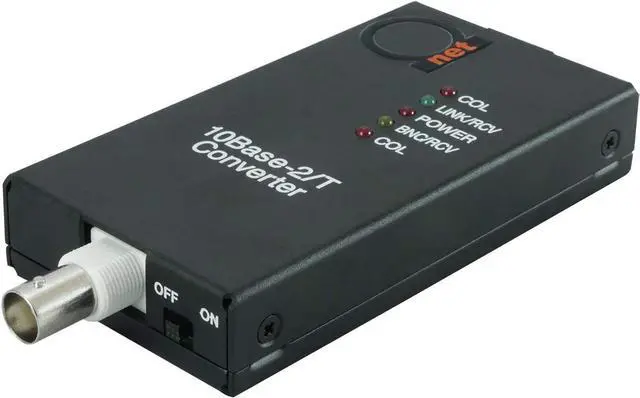

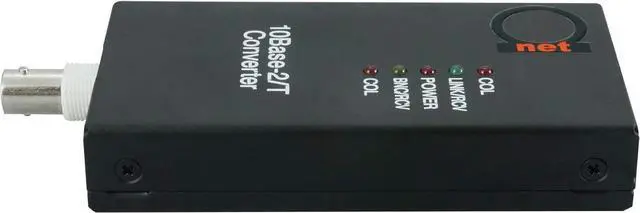

10BaseT RJ45 UTP to 10Base2 Thinnet Coax BNC Media Converter | Ethernet Adapter 10Base-T/2
- Easily Convert Between 10Base-T RJ45 to 10Base-2 Thinnet Coax BNC
- Easily Repeat Signals from Thin Ethernet for transmission over Unshielded Twisted-Pair (UTP) cable to a 10Base-T hub
- Extra Small Form Factor Design: Saves Space in Network Hubs & Rooms

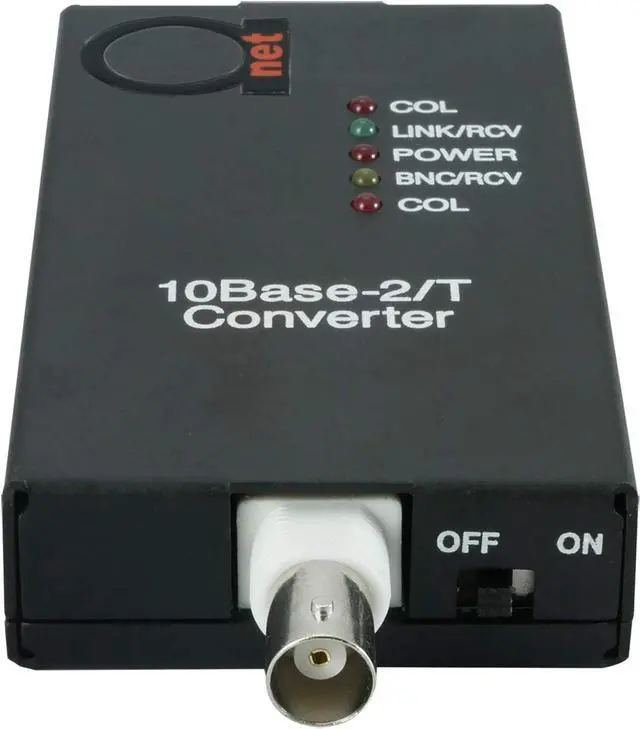

- BNC connector for Thin Ethernet & RJ-45 connector jack for 10Base-T Ethernet ports
- Two Position Terminator & Connection switches provide easy way to support all possible applications
+
+
Overview
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
AN-10BT-10B2 Converter provides easy and affordable solution for connecting your existing Thin Ethernet adapter card or Thinnet Coax BNC Ethernet Network to a 10Base-T UTP network.
AN-10BT-10B2 converts signals from Thin Ethernet for transmission over Unshielded Twisted-Pair (UTP) cable to a 10Base-T hub.

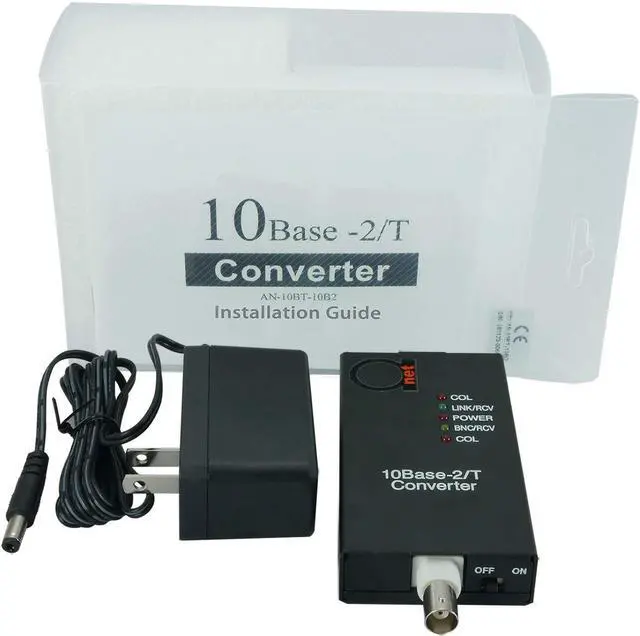

Includes an external power supply Power: 12V DC 1.0A
Specifications: .
Standards: IEE 802.3 10BaseT Ethernet | 10Base2 Thinnet
Interfaces: BNC connector for Thinnet Ethernet & RJ-45 port for 10BT Ethernet
Speed: 10Mbit/s (10 mbps)

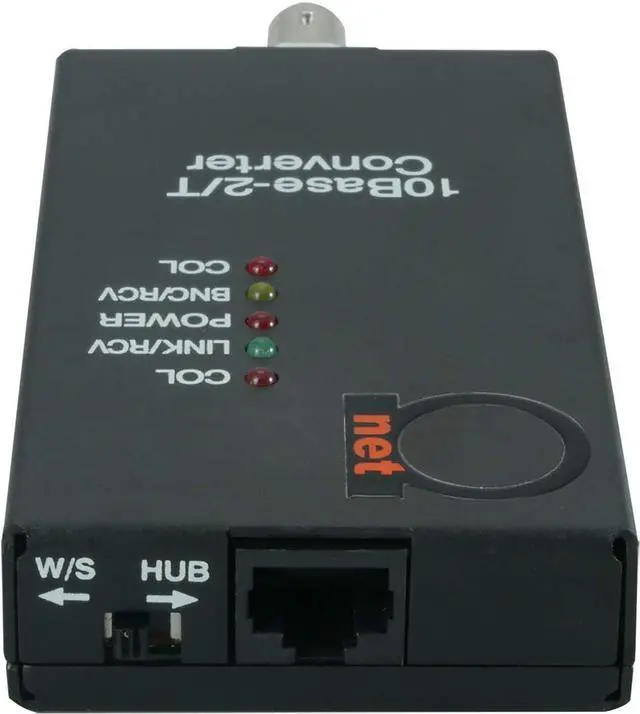

Connection Switch: Two position switch for hub or workstation settings
Terminator Switch: Two Positon On/Off for BNC
Temperature: 0 - 55 C (standard operation)
Humidity: 10% to 90% (non-condensing)
Dimensions: 4.2" x 2.2" x 0.8"
AC Power Adapter (comes in set): 12VDC, 1 A
EMI: Meets FCC Class A subpart B of part 15 requirements
AN-10BT-10B2 converts signals from Thin Ethernet for transmission over Unshielded Twisted-Pair (UTP) cable to a 10Base-T hub.
Includes an external power supply Power: 12V DC 1.0A
Specifications: .
Standards: IEE 802.3 10BaseT Ethernet | 10Base2 Thinnet
Interfaces: BNC connector for Thinnet Ethernet & RJ-45 port for 10BT Ethernet
Speed: 10Mbit/s (10 mbps)
Connection Switch: Two position switch for hub or workstation settings
Terminator Switch: Two Positon On/Off for BNC
Temperature: 0 - 55 C (standard operation)
Humidity: 10% to 90% (non-condensing)
Dimensions: 4.2" x 2.2" x 0.8"
AC Power Adapter (comes in set): 12VDC, 1 A
EMI: Meets FCC Class A subpart B of part 15 requirements
