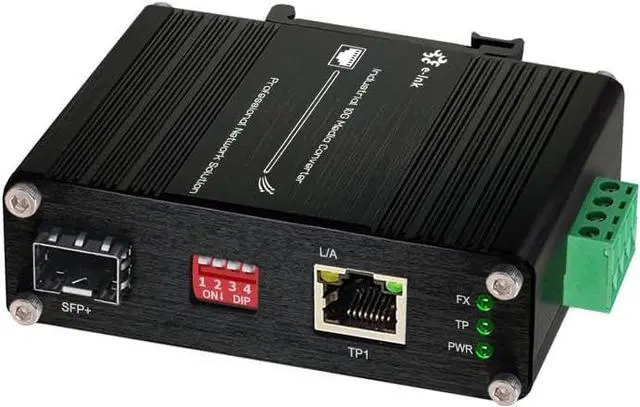

Industrial 10G Fiber Media Converter Mini 10GBase-X SFP+ Fiber Optic Transceiver Cooper to SFP+ 12-48V DC 10Gigabit Ethernet Converter DIN Rail
- RJ45 to 10G SFP+Fiber media converter supports 10G fiber data rate switching and 10G/5G/2.5G/1G/100Base-T RJ45 to 10GBASE-X SFP+ slot.
- 12-48V Wide Voltage10G fiber optic transceiver with DC12-48V wide voltage input will solve the problem that you only have 12V or 24V centralized power supply or solar power supply.

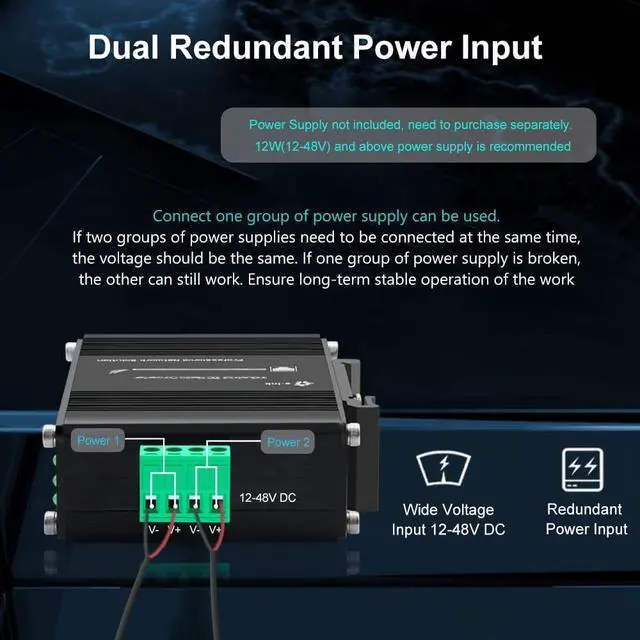

- Redundant Power InputThe industrial SFP+ fiber converter supports 2-way industrial grade power interface input, one set of power supplies fails, and the other set can still work.

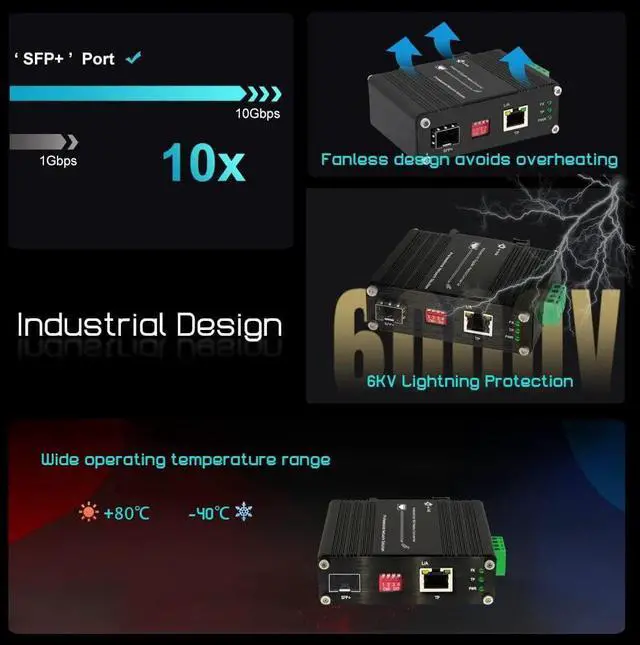

- Industrial Grade QualityThe DIN-Rail 10G media converter with industrial grade aluminum alloy casing can work in a wide temperature range from -40°C to 80°C and lightning protection which make it can adapt to various harsh environments.

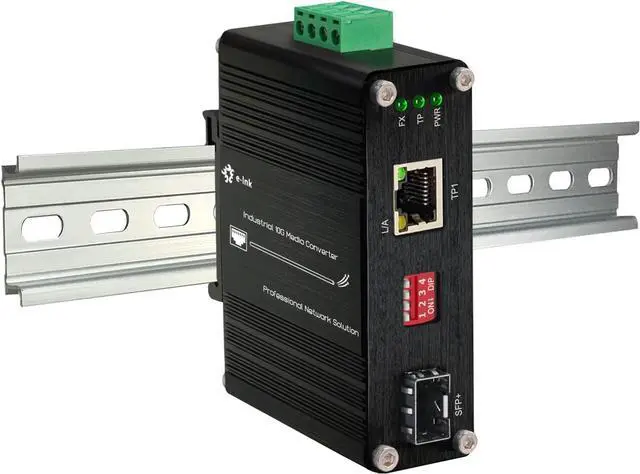

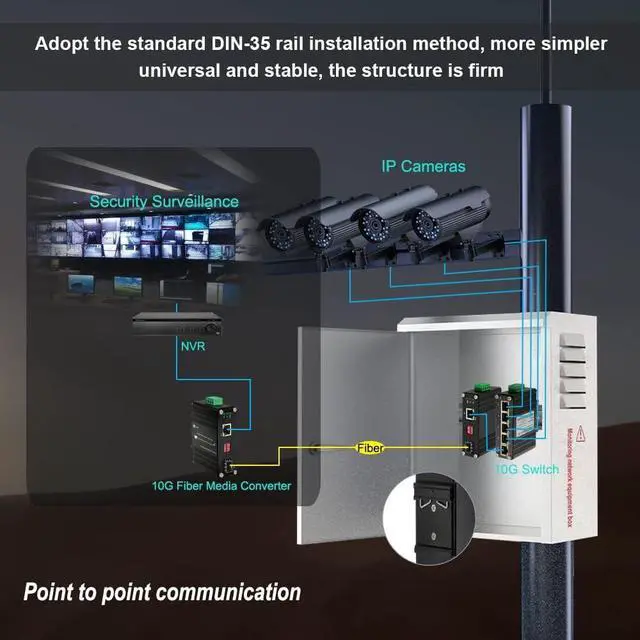

- Din-Rail & Wall MountThe Fiber media converter come with 35mm Din-rail Clip and Wall mount accessories.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

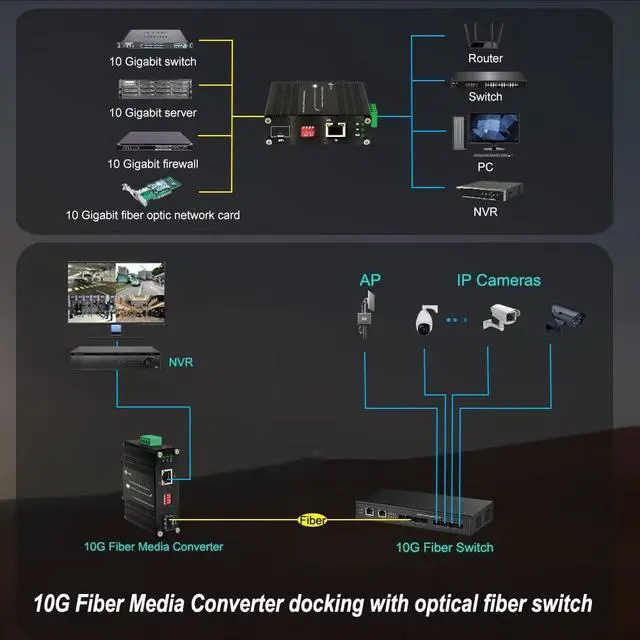

The smallest industrial 10G Media Converter provides non-blocking wire-speed performance and great flexibility for 10G Ethernet extension in harsh environment. Equipped with IP40 rugged but compact case and redundant power, which is ideal for wide applications from copper to fiber media conversion
10G/5G/2.5G/1G/100M RJ45 -10GBASE-X SFP+ Supports auto-negotiation 100Mbps, 1Gbps half/full duplex and 2.5/5/10Gbps full duplex mode
IEEE 802.3az Energy Efficient Ethernet (EEE) compliant; IEEE 802.3u/802.3ab/802.3bz/802.3ae Ethernet standard compliant
Extensive LED indicators for network diagnostics and supports DIN-Rail & Wall-mount installation
12~48VDC Terminal Block Redundant Power Input
Environmentally hardened -40°C to 80°C (-40°F to 176°F) operating temperature
The compact and aluminum casing design effectively overcome the
shortcomings of overheating and rust of the iron shell, ensuring the ruggedness, durability and working stability of the 10G SFP+ fiber media converter

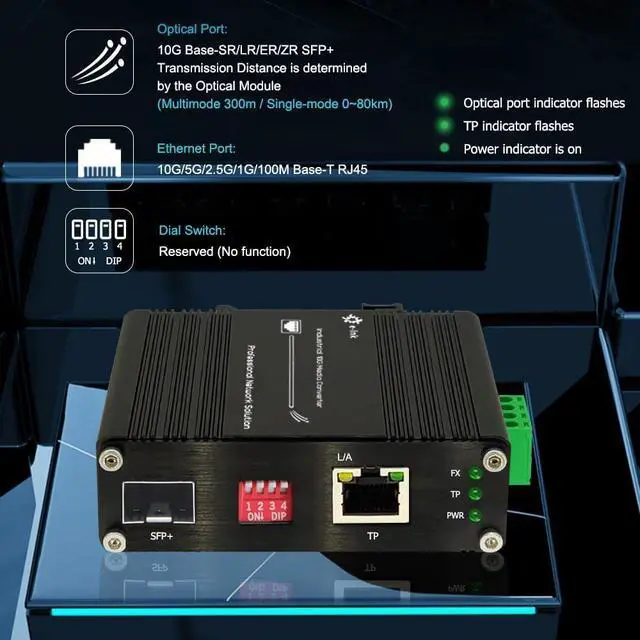

Ethernet Port100M/1G/2.5G/5G/10G BASE-T RJ45 interface with auto MDI/MDI-X functionOptical Port10GBASE-X SFP+ slot interfaceForward & Filtering Rate100Mbps/1000Mbps/2.5Gbps/5Gbps/10GbpsProcessing TypeStore-and-ForwardAddress Table9K entries, automatic source address learning and agingJumbo Frame16KInput Power12~48VDC, Redundant Power (4-pin Terminal Block)Switching Fabric20GbpsPower Input OverloadAutomatic ResettablePower Consumption5W Max Standards: IEEE 802.3u 100BASE-TX; IEEE 802.3ab 1000BASE-T; IEEE 802.3bz 2.5G/5GBASE-T; IEEE 802.3an 10GBASE-T; IEEE 802.3ae 10Gbps Ethernet; IEEE 802.3x full-duplex flow control; IEEE 802.3az Energy Efficient Ethernet (EEE)
3RJ45+1SFP Switch
10G/5G/2.5G/1G/100M RJ45 -10GBASE-X SFP+ Supports auto-negotiation 100Mbps, 1Gbps half/full duplex and 2.5/5/10Gbps full duplex mode
IEEE 802.3az Energy Efficient Ethernet (EEE) compliant; IEEE 802.3u/802.3ab/802.3bz/802.3ae Ethernet standard compliant
Extensive LED indicators for network diagnostics and supports DIN-Rail & Wall-mount installation
12~48VDC Terminal Block Redundant Power Input
Environmentally hardened -40°C to 80°C (-40°F to 176°F) operating temperature
The compact and aluminum casing design effectively overcome the
shortcomings of overheating and rust of the iron shell, ensuring the ruggedness, durability and working stability of the 10G SFP+ fiber media converter
Ethernet Port100M/1G/2.5G/5G/10G BASE-T RJ45 interface with auto MDI/MDI-X functionOptical Port10GBASE-X SFP+ slot interfaceForward & Filtering Rate100Mbps/1000Mbps/2.5Gbps/5Gbps/10GbpsProcessing TypeStore-and-ForwardAddress Table9K entries, automatic source address learning and agingJumbo Frame16KInput Power12~48VDC, Redundant Power (4-pin Terminal Block)Switching Fabric20GbpsPower Input OverloadAutomatic ResettablePower Consumption5W Max Standards: IEEE 802.3u 100BASE-TX; IEEE 802.3ab 1000BASE-T; IEEE 802.3bz 2.5G/5GBASE-T; IEEE 802.3an 10GBASE-T; IEEE 802.3ae 10Gbps Ethernet; IEEE 802.3x full-duplex flow control; IEEE 802.3az Energy Efficient Ethernet (EEE)
3RJ45+1SFP Switch
