Industrial 2 Port Gigabit Fiber Media Converter Power Over Ethernet Hardened 2 10/100/1000Base-TX PoE 30W Optical Transceiver 802.3af/at 100/1000M SC Transmission Max 550m
- [12~48V DC Power Input] The media converter supports ~ , which ensures long-term stable operation.
- [Support 1000Base-FX port] The open SC port of fiber media converter supports both . +(). You can use your device with 1000M fiber port.
- [IEEE802.3af/at PoE Standard]The media converter supports . (.) and . +(), meeting the power supply requirements of most devices.
- [Multiple Functions]The Ethernet Media Converter supports Auto-negotiation, full Duplex or half Duplex, Auto-negotiation, Complies with IEEE 802.3/802.3u/802.3z/802.3ab.
- [Aluminum Housing]The Ethernet media converter uses , having 6KV lighting protection and can work at wide range temperature -40°C to 80°C (-40°F to 176°F).Support for 35mm rail mounting.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
2-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function, Supports Full/Half-duplex, Auto-negotiation
Build-in SC fiber module, 100Base-FX or 1000Base-X Dual mode (auto detection), support both gigabit and fast Ethernet

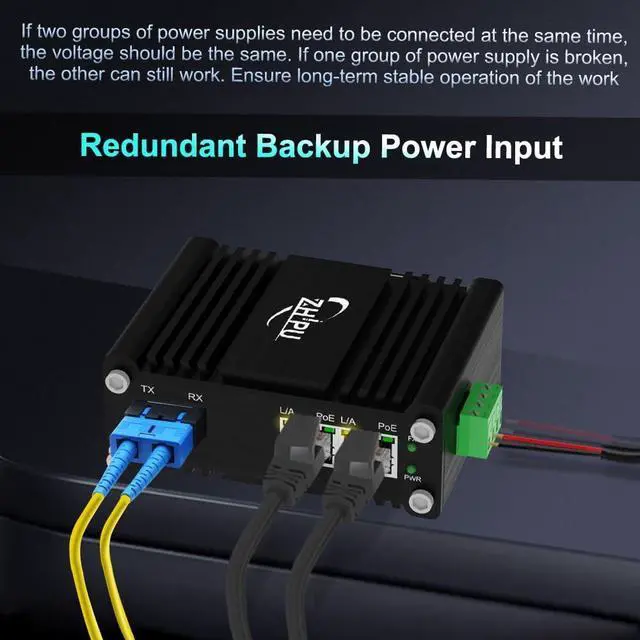

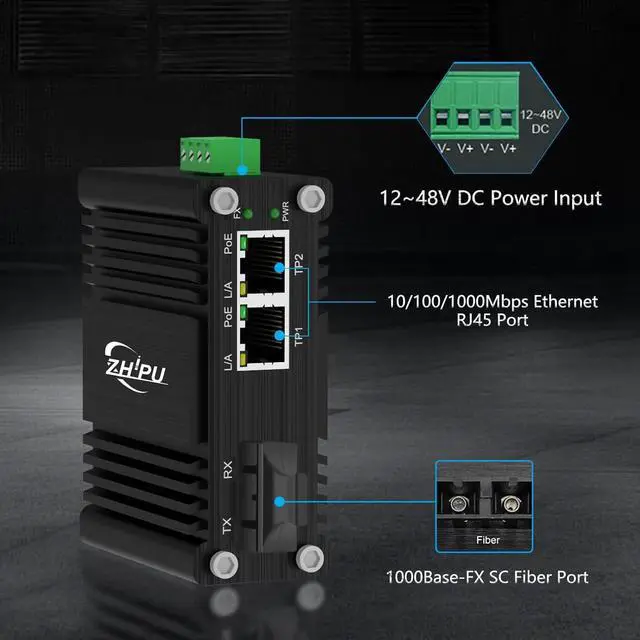

12~48(48~57)VDC Terminal Block Power Input
Supports IEEE802.3af PoE (15.4W) or IEEE802.3at PoE+(30W)
9K Bytes Jumbo Frame

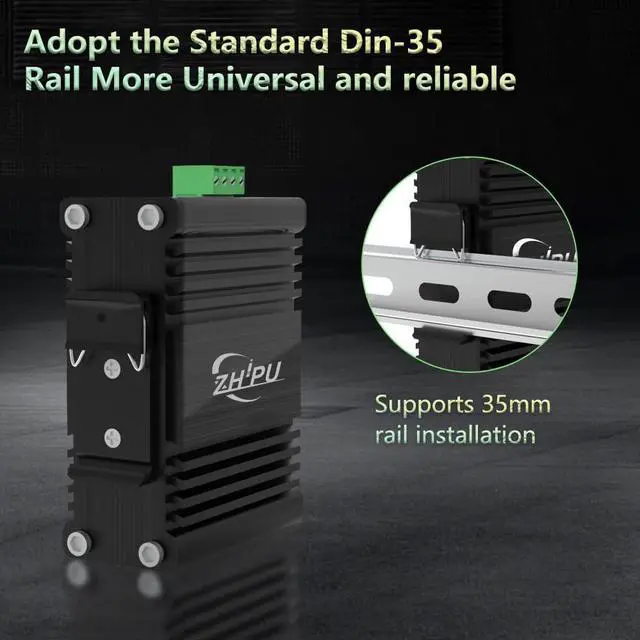

Supports 35mm DIN-Rail installation

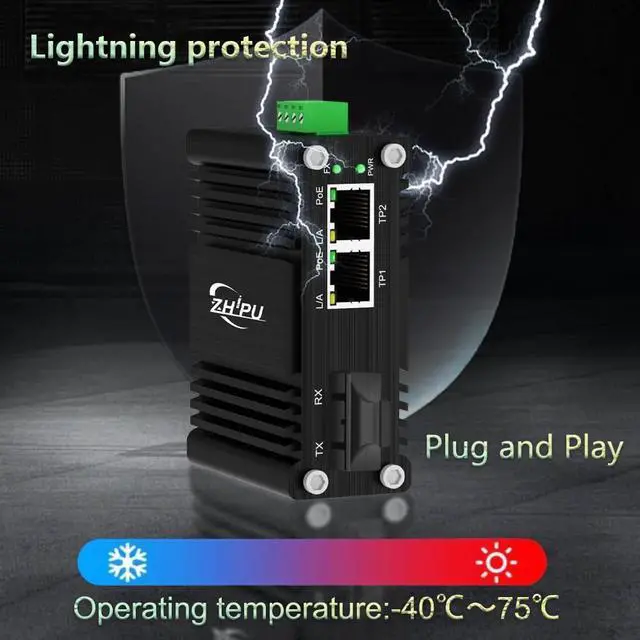

Environmentally hardened -40°C to 75°C (-40°F to 167°F) operating temperature
Ethernet Port: RJ45 10/100/1000Mbps Gigabit Ethernet
Optical Port: SC - 100/1000M adaptive
Transmission distance: Single mode Dual-fiber 12.43 Miles (20km)
Casing Material: Aluminum Case
Mini Size (WxDxH): 3.74x2.76x1.4in (95 x 70 x 36 mm)
Features Specifications
Build-in SC fiber module, 100Base-FX or 1000Base-X Dual mode (auto detection), support both gigabit and fast Ethernet
12~48(48~57)VDC Terminal Block Power Input
Supports IEEE802.3af PoE (15.4W) or IEEE802.3at PoE+(30W)
9K Bytes Jumbo Frame
Supports 35mm DIN-Rail installation
Environmentally hardened -40°C to 75°C (-40°F to 167°F) operating temperature
Ethernet Port: RJ45 10/100/1000Mbps Gigabit Ethernet
Optical Port: SC - 100/1000M adaptive
Transmission distance: Single mode Dual-fiber 12.43 Miles (20km)
Casing Material: Aluminum Case
Mini Size (WxDxH): 3.74x2.76x1.4in (95 x 70 x 36 mm)
