5 Pairs BIDI SFP Network Transceiver Module, 1.25 Gigabit Single Mode LC 1000BASE-LX Single Fiber Interface SFP 20km

Product Compatibility
The SFP module was embed with compatible source code, which can be compatible with most of main stream vendor, like Ubiquity, Netgear, Mikrotik, DLink, TPLink etc., and other main stream vendors

Easy Deployment

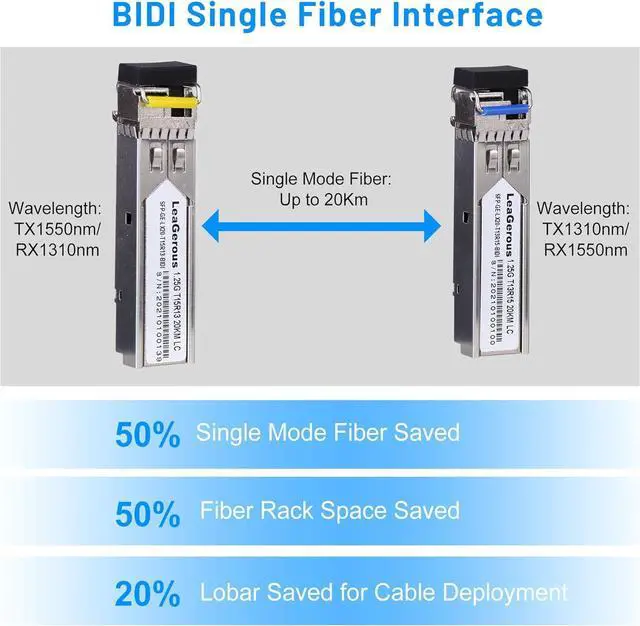

The BIDI SFP module support hot swappable and single fiber data transmission (Blue Type: TX1310nm/RX1550nm; Yellow Type: TX1550nm/RX1310nm) , which makes instanllation more convenient and much cost-saving for fiber than duplex interface SFP

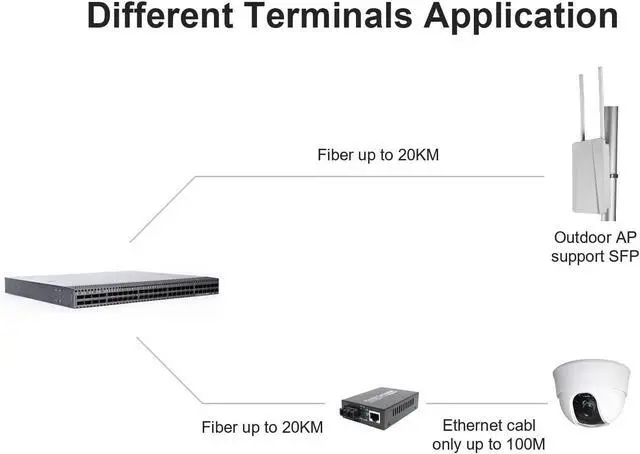

Widely Application
The SFP Module can be widely deployed with Switch, Fiber Media converter, Router, Firewall, Server etc.,

Full Aging Testing
The SFP Module was 100% full aging testing before shipment, which can decrease most of hardware failure rate before shipment and make sure the product reliability Mess Deployment and successful reference site
More than 1,000,000+ pcs SFP module are deployed already in the world already, thousands of reference site in different countries

Support 20KM Long Distance Deployment
the single mode LC fiber module supports upto 20 km max cable length, which can be suitable for most of long distance deployment.


Deployment Notice
1. Please don't use the single mode fiber module for short distance deployment ( less than 500m ), because the long distance SFP use the high frequency ( 1310nm ) wavelength for signal transmission, which will shorten the fiber module using life for short distance deployment. If less than 500m, please choose other short distance multi-mode SFP module (850 nm )
2. Need to use different color type BIDI SFP Module as one pair for one single fiber connection

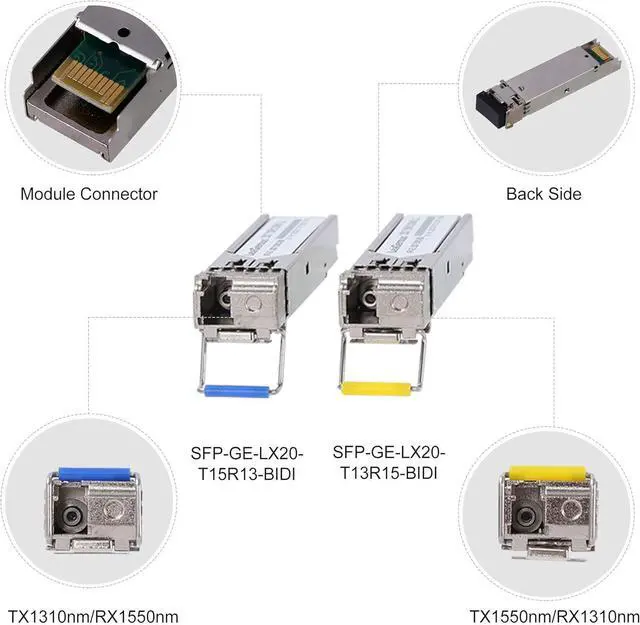

Product model
Blue: SFP-GE-LX20-T13R15-BIDI

Yellow: SFP-GE-LX20-T15R13-BIDI

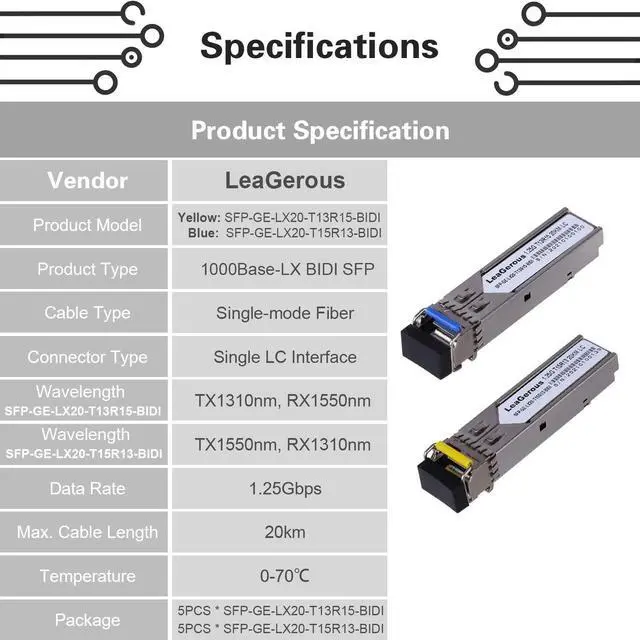

Detailed Specification
Cable Type: Single-Mode Fiber
Connector: Single LC Interface
Data Range: 1.25Gbps
Blue SFP: TX 1310nm and RX1550nm
Yellow SFP: TX1550nm and RX1310nm
Max Cable Length: 20km
Temperature: 0-70

Package List
5 pcs SFP-GE-LX20-T15R13-BIDI
5 pcs SFP-GE-LX20-T13R15-BIDI

Limited Lifetime warranty
For any reason you are unsatisfied with the SFP transceiver during the warranty period, we will provide you a best solution, and we will refund your money in full if you still have concerns.
