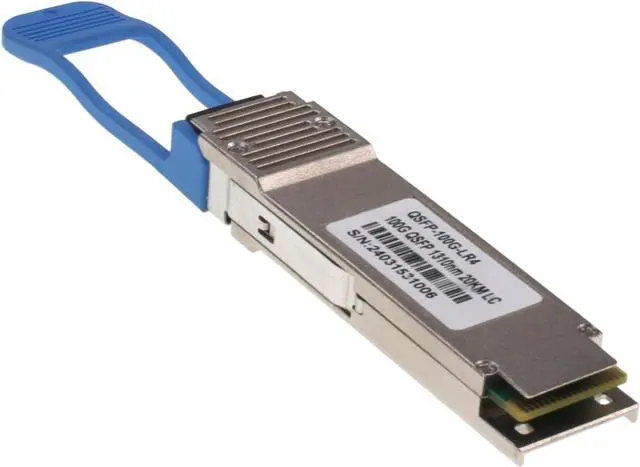

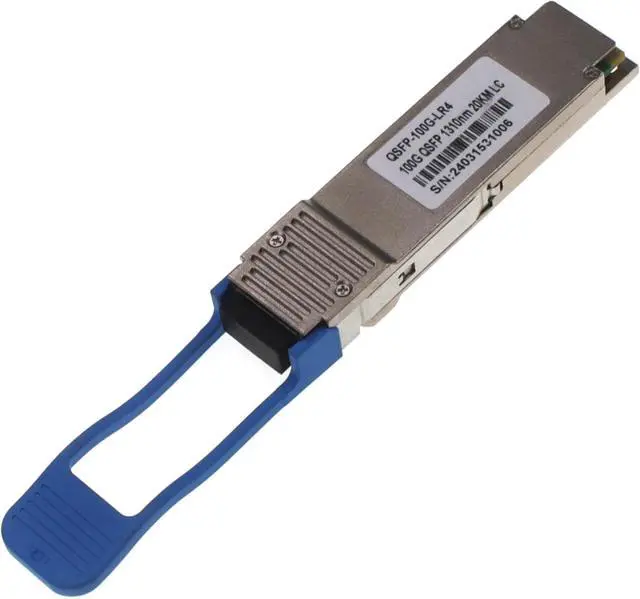

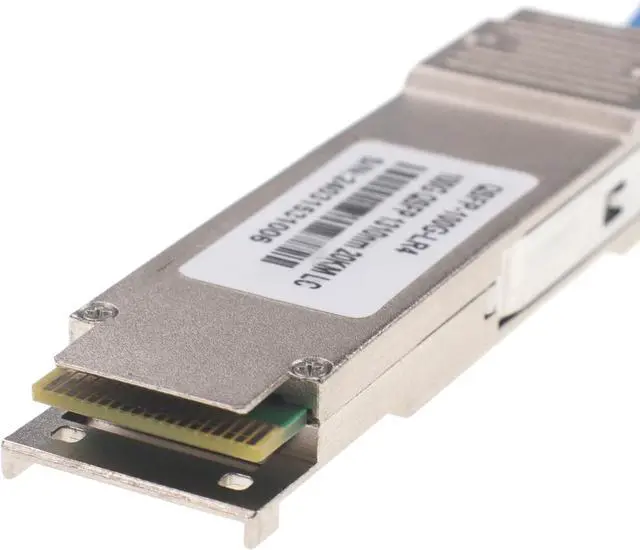

ZOOKOTO 100G Optical Transceiver Module 1310nm 20km 100GBASE QSFP28 Transceiver for Cisco QSFP-100G-LR4-S,QSFP-100G-LR4,100GBASE-LR4 QSFP28 with DDM Up to 20KM

Ddescription:
100GBASE-LR4 QSFP28 4WDM Optical Transceiver Module (1271nm,1291nm,1311nm,1331nm SMF 20km LC DDM)
The 100G QSFP28 module provides 100GBase-LR4 throughput up to 20km over a standard pair of single mode fiber (SMF) with duplex LC connectors
The design is compliant with 100GbASE-LR4 of the IEEE802.3-2012 Clause 88 standard IEEE 802.3bm CAUI-4 chip to module electrical standardITU-T G.959.1-2012-02 standard.
The module converts 4 inputs channels (ch) of 25.78Gbps to 27.95Gbps electrical data to 4 lanes of optical signals, and multiplexes them into a single channel for 100Gb/s optical transmission. Reversely, on the receiver side, the module optically de-multiplexes a 100Gb/s input into 4 lanes signals and converts them to 4 lanes output electrical data
This easy to install, hot swappable transceiver is suitable to be used in various applications, such as data centers, high-performance computing networks, enterprise core and distribution layer applications
ZOOKTO is committed to providing integrated cost-effective optical communication products, one-stop solutions and service support for global data centers, cloud computing, enterprise networks, access networks and wireless networks.

Wide Application:
100GBASE-LR4 Ethernet Links
Infiniband QDR and DDR interconnects
Datacenter and Enterprise networking

Features:
QSFP-100G-LR4-S
Hot pluggable QSFP28 MSA Form factor
Supports 103.1Gb/s aggregate bit rate
Up to 20Km reach for G.652 SMF
Single+3.3V power supply

Remarkable Compatibility:
100% Compatible for Cisco QSFP-100G-LR4-S. This product is a 100Gb/s transceiver module designed for optical communication applications compliant to 100GBASE-LR4 of the IEEE 802.3ba standard.

Easy to Connect
4x25G electrical interface
Hot-Pluggable QSFP28 Transceiver Module,High-sensitivity 4x25Gb/s PIN-TIA receiver.
