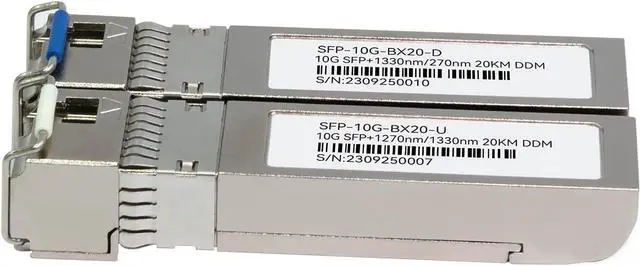

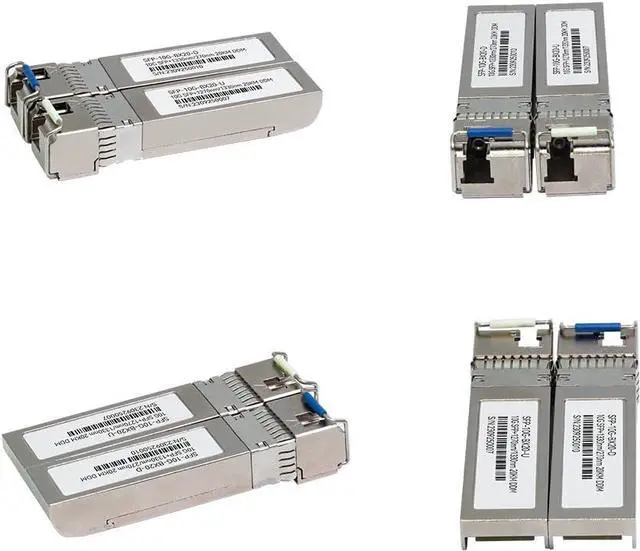

SFP+ for youyeetoo BPI-R4 Single Board Computer 10G BX20 Module - 20KM, Fast 10Gbps, LC Connector (A Set)

Using a 1270nm (1330nm) DFB laser and a PIN-TIA photodetector, it supports a single-mode fiber transmission distance of over 20 kilometers.
It supports a maximum data transmission rate of 11.3Gbps.
Powered by a single +3.3V power supply with low power consumption of less than 1.5W.
It integrates digital diagnostic monitoring functions and uses a 2-pin interface. It has good EMI shielding and ESD protection capabilities.
In compliance with IEC-60825 standards, lead-free and ROHS compatible. Also compatible with SFP+ MSA and SFF standards specifications, suitable for 10G Ethernet and 10G Fibre Channel application scenarios.
Note: The module does not include cables, and requires the use of single-mode single-fiber LC-LC cables.

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Q: When will the Wi-Fi 7 module be released?
A: Currently, a limited number of samples have been sent out for testing, with the official launch expected in July.The estimated price for the Wi-Fi 7 module is $110/pcs
OpenWRT
Debian 11
Ubuntu 22.04
8G/above TF card
USB-Serial cable
Ubuntu System

Internet service Router
Wifi 7 Wireless Router
4G/5G Wireless Router
Wireless Repeater
Home security Gateway
Home Automation
Nas device
Network and communication applications

MediaTek MT7988A (Filogic 880) quad-core Arm Corex-A73,1.8GHz processor
4GB DDR4
8GB eMMC flash
128MB SPI-NAND Flash
Micro SD card slot
2x 10Gbe SFP slot (option 1x 10Gbe SFP and 1x SOC embedded 2.5Gbe PHY. NOTE: Need to modify hardware)
4x Gbe network port
26 PIN GPIO Header for expanding application
POE function customizable (present version not support POE function)

BPI-R4 Introduction
