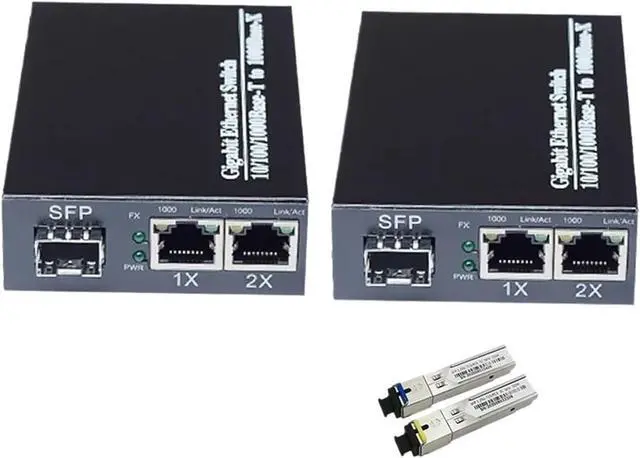

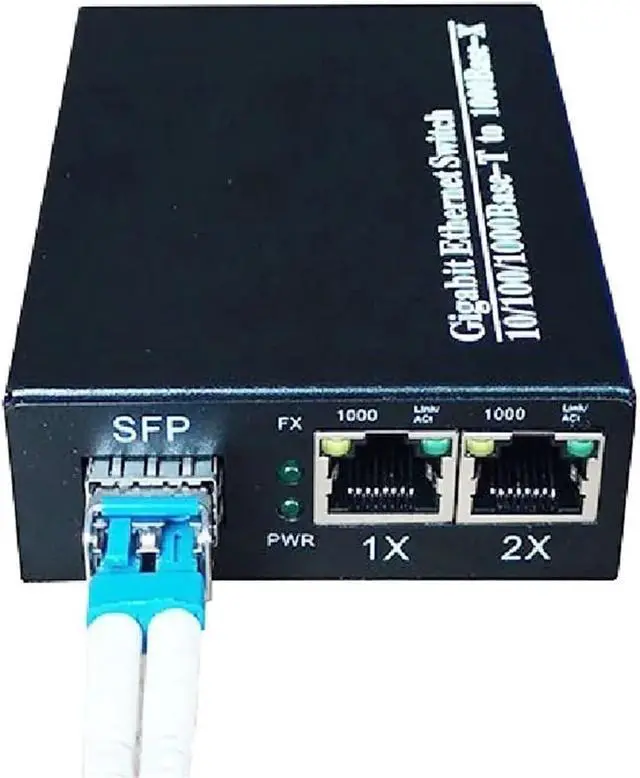

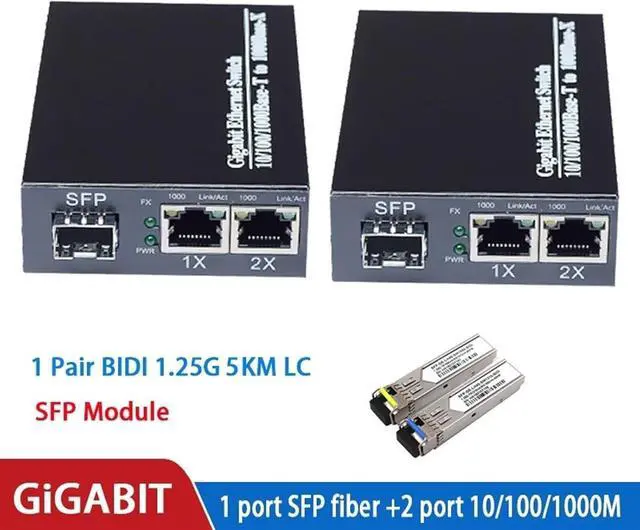

Gigabit Media Converter 1 Port Sf-p to 2 Rj45 Gigabit Optical Fiber GPOn/Epon Ethernet Compatible with IP Camera 10/100/1000M (Size : LC 5KM EU Power)

SFP Fiber to RJ45 converter gigabit SFP media converter 1000Mbps SFP Gigabit Fiber Optical Converter Board
10/100/1000 Mbps SFP Slot Ethernet Media Converter
Overview
This 10/100/1000M Gigabit Ethernet converter is used in backbone network transmission and is primarily used for Gigabit Ethernet devices links. It converts Optical-Electric Ethernet signals between
10/100/1000M UTP interface (TX) and 1000M SFP socket (FX). According to customers'requirements, this media converter supports single-mode and multi-mode fibers with a transmission distance of up to 80 km for single-mode fiber and 550 m for multi-mode fiber. It extends the transmission distance through its photoelectric conversion network. The media converter takes advantage of intelligent connection technology to provide auto-negotiation thereby eliminating the need to manually configure or monitor settings.
Specifications:
Standards
Compatible with IEEE802.3 10Base-T
Compatible with IEEE802.3u 100Base-TX/FX
Compatible with IEEE802.3z 1000Base-SX/LX
Compatible with IEEE802.3x Flow control
Compatible with IEEE802.1p QoS
Compatible with IEEE802.1d Spanning Tree
Ethernet Port
Connector: RJ45
Data Rate:10/100M or10/100/1000M
Distance: 100m
UTP Type: UTP-5E or higher level
Fiber Port
Connector: SC/FC/ST/SFP slot
Data Rate: 155M or 1.25Gbps
Optical Wavelength: 850nm/1310nm/1490nm/1550nm
Distance: 550m-120km
Performance
Processing Type: Store and Forward
MAC Table Size:4K/6K/8K
Buffer Space: 500kbs/1Mbit/2Mbit
Jumbo Packet: 1518 bytes
Back bandwidth: 3.8G/5.6G/7.2G
<;150s
Power
Power type: external power supply
Input Voltage: AC100V-240V 50/60Hz
Connector: DC Socket
Working Voltage: 5V
Power Consumption: 2.2W-3.5W
Transmissin Distance
Twisted Pair: 100m (CAT5e, CAT6 cables)
Muti-mode: 2km
Single-mode: 3/20/40/60/80/100km
MTBF
100, 000 hours
Envir
