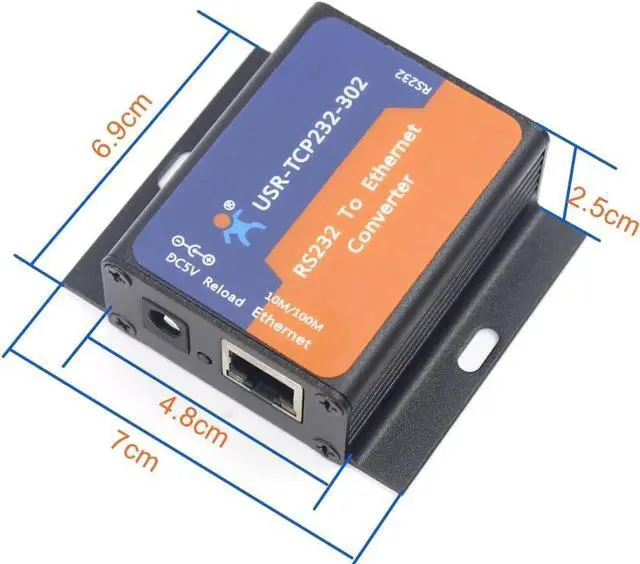

USR-TCP232-302 Tiny Size RS232 to TCP IP Converter Serial RS232 to Ethernet Server Module Ethernet Converter Support DHCP/DNS (10)

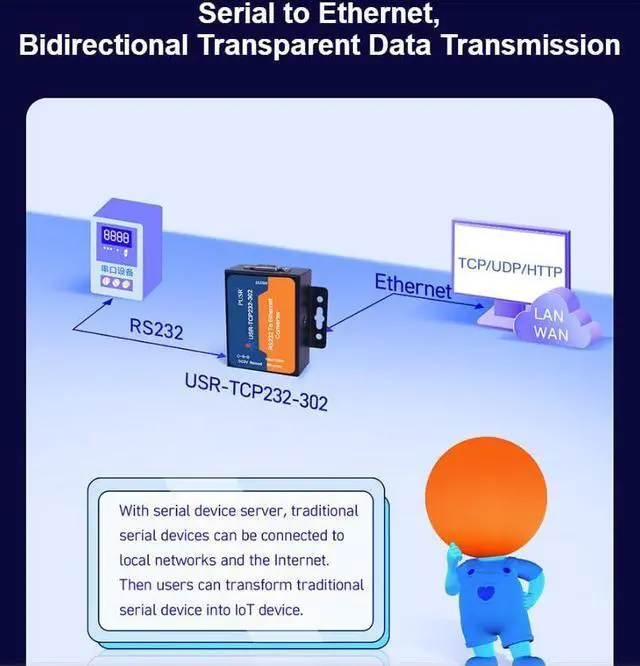

- This is a serial RS232 to Ethernet server, used for data transparent transmission. USR-TCP232-302 is a low-cost serial device server,whose function is to realize bidirectional transparent transmission between RS232 and Ethernet. USR-TCP232-302 is internally integrated with TCP/IP protocol. User can apply it to device networking communication.
- Support DHCP, automatically obtain an IP address and query IP address through serial setting protocol, Support DNS function, Set parameters through webpage, Upgrade firmware via network.
- Auto-MDI/MDIX, RJ45 port with 10/100Mbps, Serial port baud rate from 600 bps to 230.4 Kbps, Check bit of None, Odd, Even, Mark and Space.

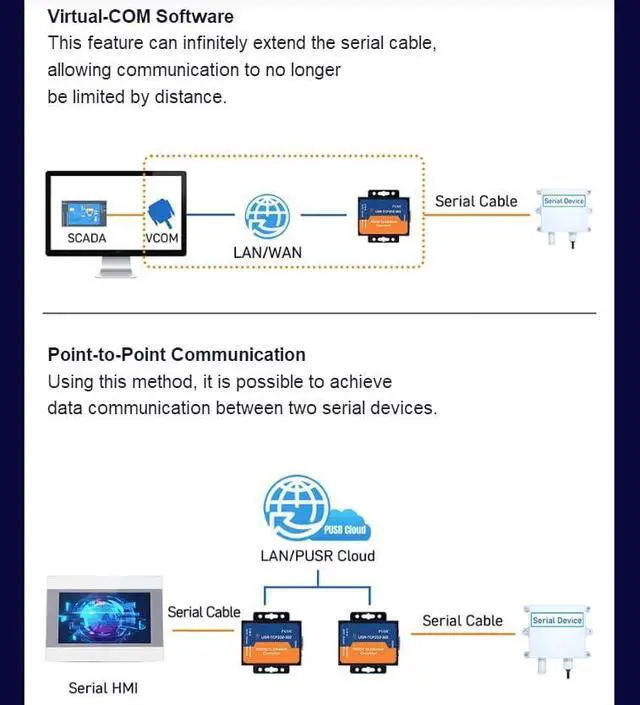

- Work Mode: TCP Server, TCP Client, UDP Client, UDP Server, HTTPD Client. Support virtual serial port and provide corresponding software USR-VCOM, Heartbeat package mechanism to ensure connection is reliable, put an end to dead link, User-defined registration package mechanism, check connection status and use as custom packet
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Integrated into traffic control systems, the PUSR TCP232-302-C7 facilitates real-time data transmission between traffic lights and central monitoring servers via Ethernet. This enables intelligent transportation networks to enhance traffic flow, monitor congestion, and respond promptly to dynamic conditions.
In logistics and transportation, the converter ensures seamless data transfer from unattended truck scales to central servers. By leveraging the internet, it eliminates the need for manual supervision, increasing operational efficiency and reducing human error in weighbridge systems.

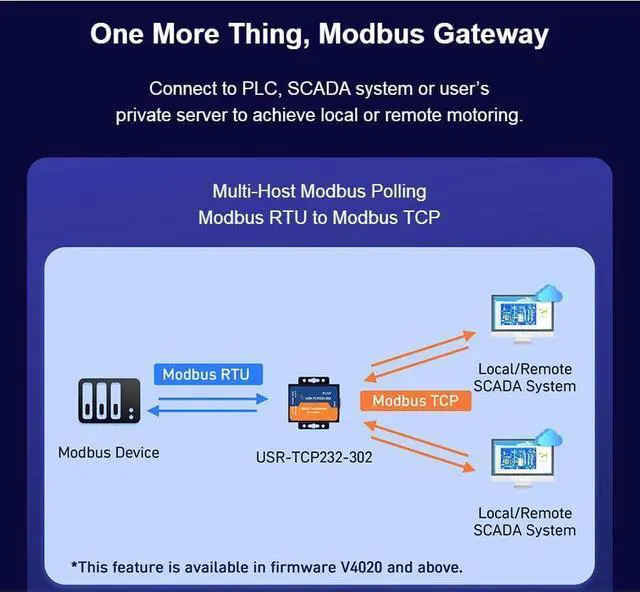

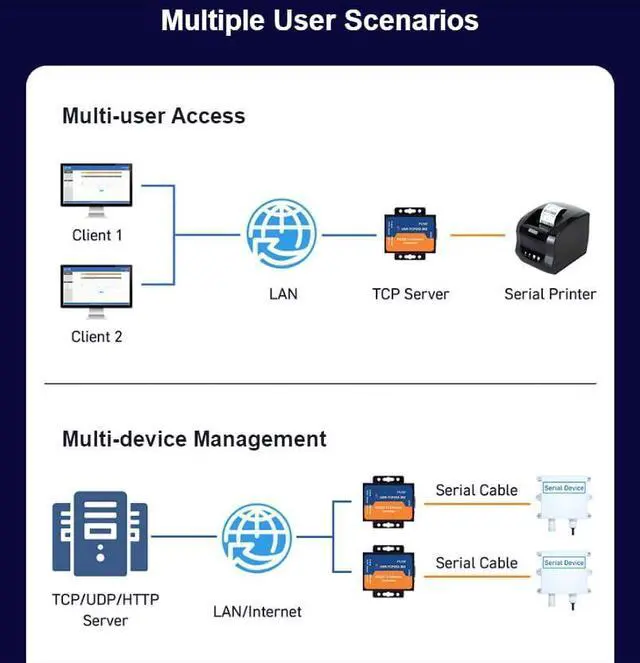

The PUSR TCP232-302-C7 supports multi-client TCP communication with unique registration packets. Devices are easily distinguishable by ID, allowing multiple converters to communicate with a single server efficiently. This makes it ideal for scalable industrial network applications requiring structured data flow and robust connectivity.
Smart Traffic Management for Intelligent Transportation Automated Weighing System Communication Multi-Device Network Communication Using Registration Packets
In logistics and transportation, the converter ensures seamless data transfer from unattended truck scales to central servers. By leveraging the internet, it eliminates the need for manual supervision, increasing operational efficiency and reducing human error in weighbridge systems.
The PUSR TCP232-302-C7 supports multi-client TCP communication with unique registration packets. Devices are easily distinguishable by ID, allowing multiple converters to communicate with a single server efficiently. This makes it ideal for scalable industrial network applications requiring structured data flow and robust connectivity.
Smart Traffic Management for Intelligent Transportation Automated Weighing System Communication Multi-Device Network Communication Using Registration Packets
