    10G SFP+ to SFP+ Fiber to Fiber Media Converter - 10G OEO 3R Transparent Repeater - 2 x Standard Open SFP+ Slots - Universal - Supports 10GB SFP+ Fiber and Copper Modules - Without Transceivers

    Be the first to review this product...

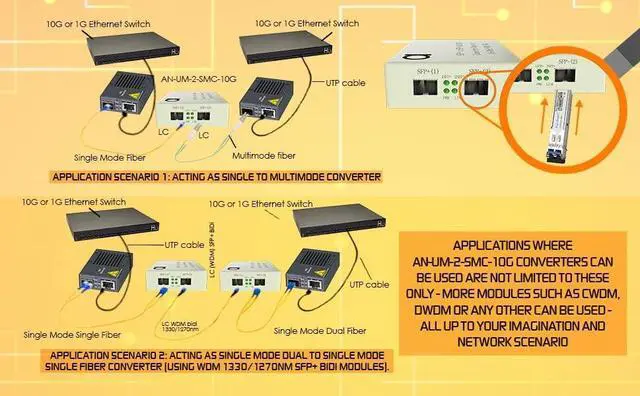

    • Use it as a Single to Multimode Media Converter - 2 X standard open SFP+/SFP slots for any type of SFP+ modules
    • Use it as a Single Mode Dual Fiber to Single Mode Single Fiber Converter - thus, saving the fibers!
    • Use it as a 3R - Re-amplification, Re-shaping And Re-timing Device - Signal Repeater & Converter, all in the same box!
    • Use it for converting & matching wavelengths when interconnecting third party 10Gbps network devices - i.e. 850 nm to 1300/1310 nm, 1310 nm to 1550 nm, even DWDM and CDWM wavelengths are supported. Just find the correct and matching SFPs for both slots!
    • Wide range of protocols supported: 10G Ethernet, 10G WAN (10Gbps), 10G LAN (10.31Gbps), 8.5G Fiber Channel, 10G LAN with 255/237 FEC coding (11.09Gbps) and more!
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Try me now
    10G SFP+ to SFP+ fiber to fiber converter is a fiber-to-fiber type 10Gbps device that acts not only as fiber optic media converter or as a fiber optic repeater for long-haul transmission, but is an all in one solution to get 10GE fiber network to be Re-Amplificated, Re-Shaped and Re-Timed.
    3R Repeater / Extender / Media converter for all your 10G fiber network mode & wavelength conversion needs.
    More than that - unit supports 10G SFP+ type modules
    It is commonly used in network backbones (SAN, LAN, MAN, WAN). Supports various protocols such as SDH / SONET STM-64 / OC-192, 10G Fiber Channel, 10G Ethernet, etc. can be used in a telecommunications room, R&D lab, data center, etc. Supports any standard SFP+ 10G 850nm, 1310nm / 1550nm / CWDM / DWDM optical wavelength conversion.
    Product features
    Jumbo frames support
    Transparent signal transmission and low latency
    The rate supports 8.5Gbps~11.7Gbps
    Supports OEO 3R functions: signal amplification and regeneration, waveform shaping, clock retiming

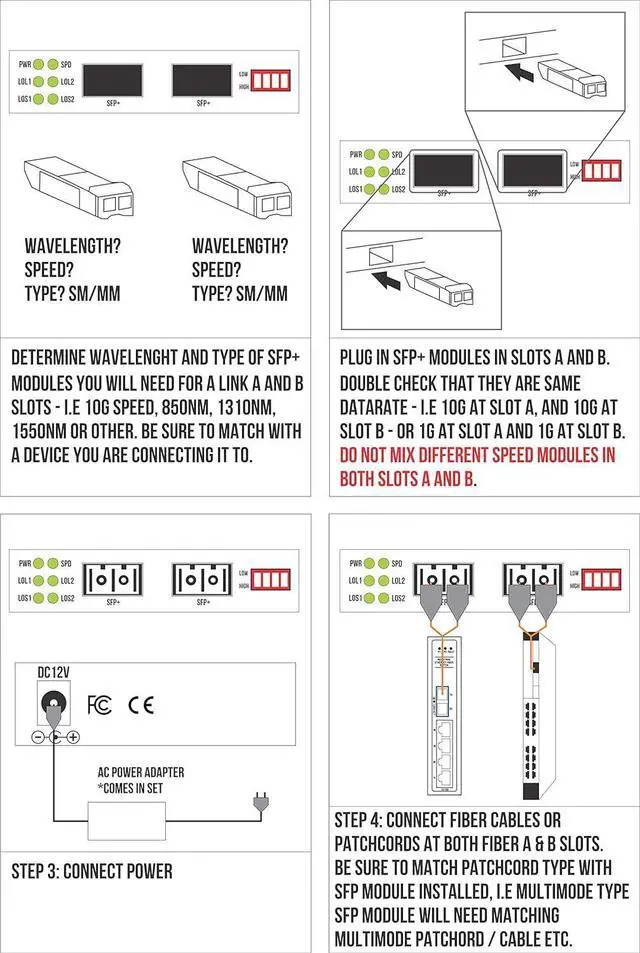

    Easy installation - Plug & Play
    Wide Range Protocol Support
    8.5G Fiber Channel SONET OC-192, SDH STM-64 (9.95Gbps) 10G WAN (10Gbps) 10G LAN (10.31Gbps) OTN OTU-2 (G.709) (10.70Gbps) 10G LAN with 255/237 FEC coding (11.09Gbps) 10G Fiber Channel (11.32Gbps) 10G POS Technical Parameters
    Transmission rate:8.5Gb/s-11.7Gb/s

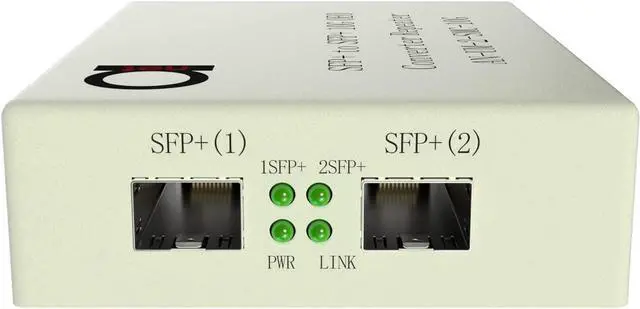

    Interface Type: SFP+ standard slot

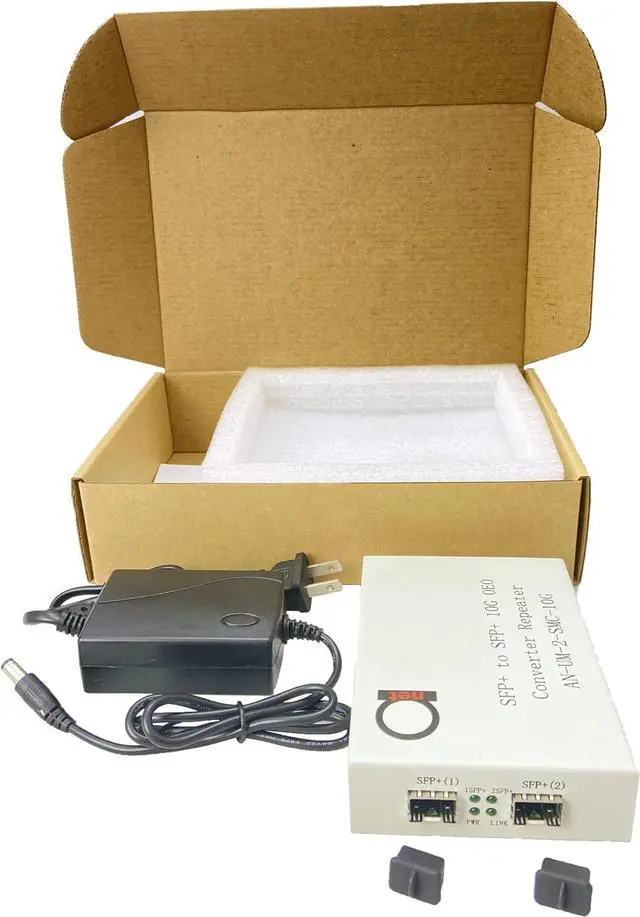

    Power supply input voltage:DC 12V (AC adapter comes in set)
    Power consumption:4W
    Operating temperature:0-~60
    Size (L*W*H):110mm(L)*100mm(W)*30mm
