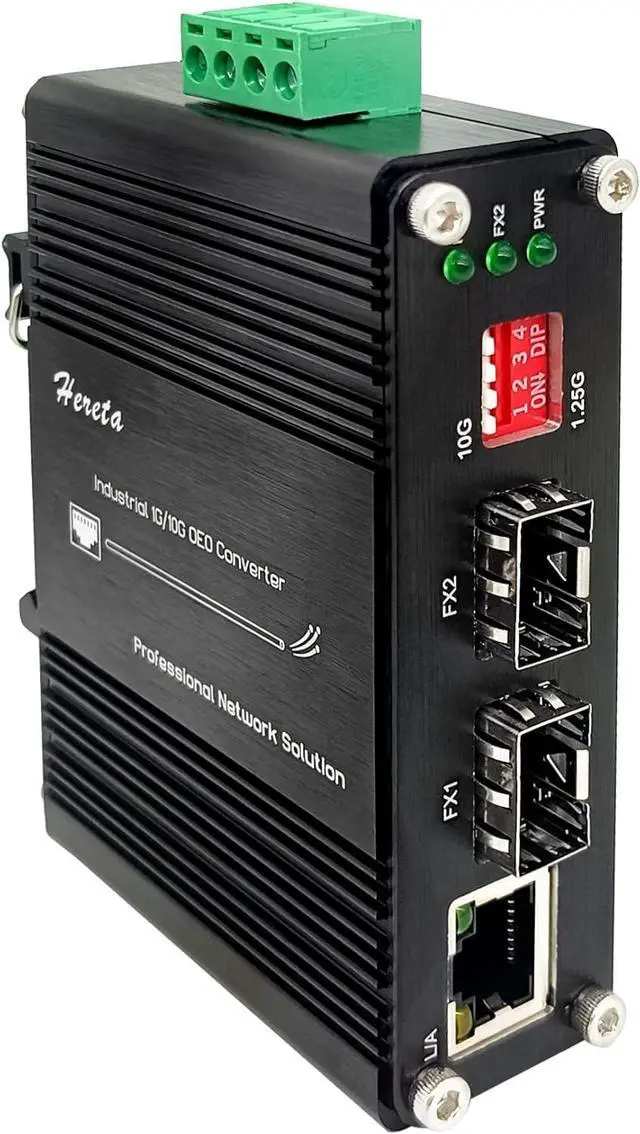

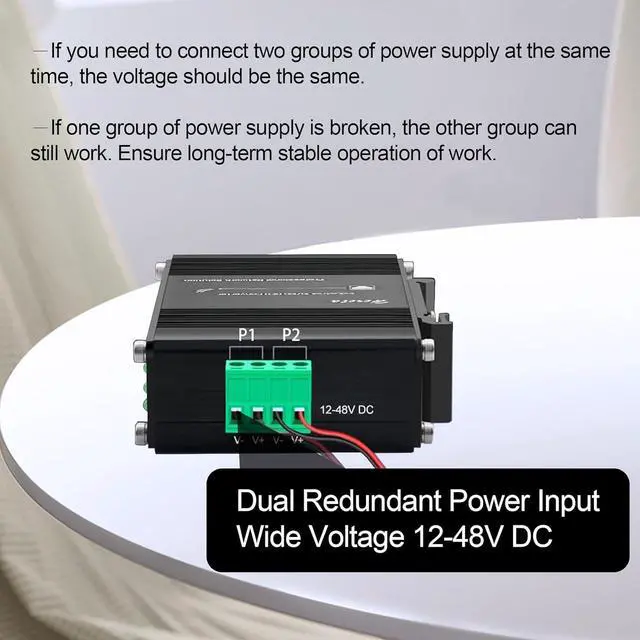

Industrial 1G/10G SFP+ to SFP+ OEO Converter 3R Repeater Fiber Extender with 1G Ethernet Media Converter Function, 2 x Open SFP+ + 1 x RJ45 Port,IP40,Support 12~48V DC Input,Fiber Extender up to 120km

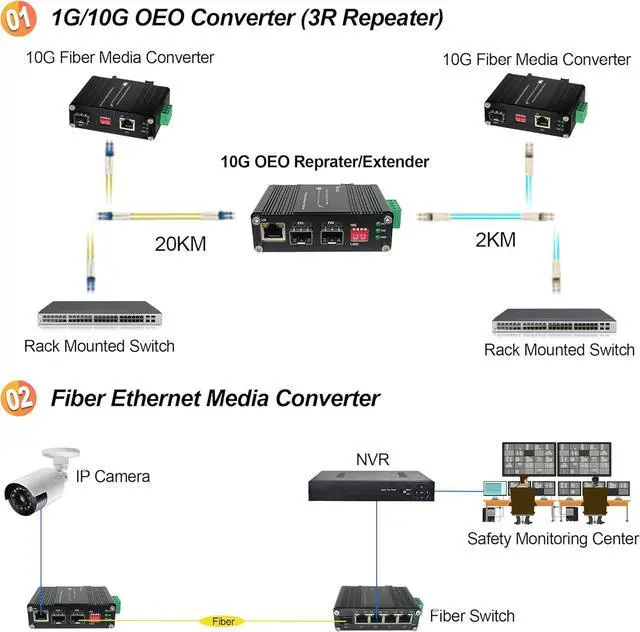

ETH-IMC2402-OEO series Industrial 10G OEO Converter is a connection between fiber to fiber 10Gbps equipment function as fiber media converter, or as fiber repeater for long distance transmission in harsh environment at operating temperature -40~ 80. It is for network backbone (SAN, LAN, MAN) application. Support SDH/SONET STM-64/OC-192, 10G fiber channel, 10G Ethernet, which can be applied in R&D laboratory, data center, telecommunication room. It supports optical wavelength conversion 1310nm/1550nm/CWDM/DWDM with Loop-back.When only connecting the copper and fiber port, it can be connection between fiber to copper 1Gbps Ethernet equipment function as fiber-to-copper media converter for long distance transmission up to 120km.
Features:
Transparent Transport and very low delay
3R function (Regeneration, Reshaping, Re-timing)
Support hot plugging, full state led display, easy installation
Support ITUT prescribed DWDM/CWDM wavelength, and can also display its DDM function
Support Loop-back and Jumbo Frame
DIP Switch supports 1.25G/10G fiber data rate switching
Can be as 1G Ethernet Media Converter if using Ethernet
IP40 Aluminum Case

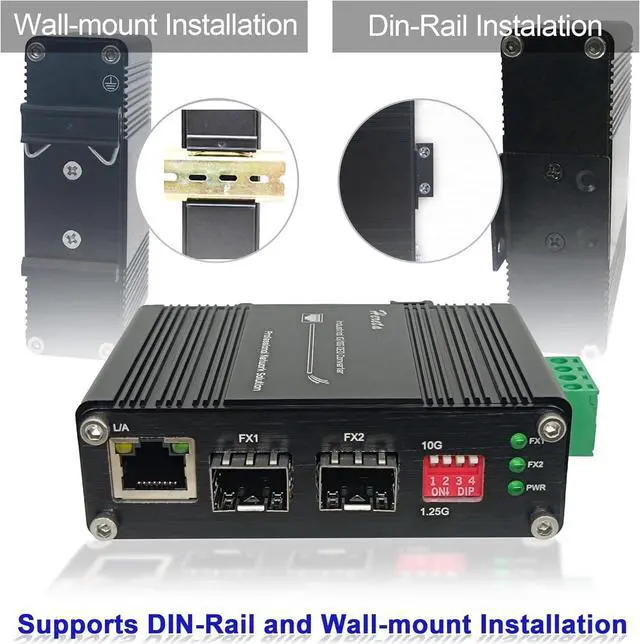

Supports DIN-Rail/Wall-Mount installation

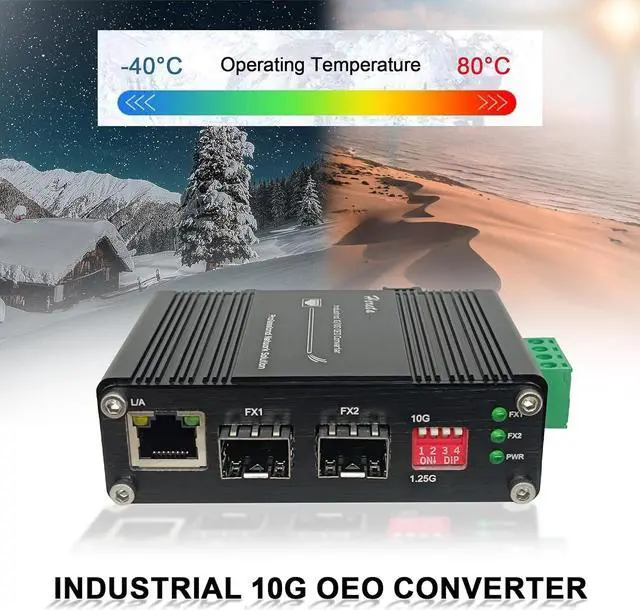

-40°C to 80°C (-40°F to 176°F) operating temperature
Equipment function: 3R Repeater (Regeneration, Reshaping, Re-timing)

Protocols: 8.5G Fiber Channel/ SONET OC-192, SDH STM-64 (9.95Gbps)/ 10G WAN (10Gbps)/10G LAN (10.31Gbps)/ OTN OTU-2 (G.709) (10.70Gbps)/ 10G LAN with 255/237 FEC coding (11.09Gbps)/ 10G Fiber Channel (11.32Gbps)/ 10G POS

Standards: IEEE 802.3 10BASE-T/ IEEE 802.3u 100BASE-TX/ IEEE 802.3ab 1000BASE-T/ IEEE 802.3z, 1000BASE-SX/LX/ IEEE 802.3x Full-duplex flow control

The media converter can be installed on a DIN rail or Wall Mount Installation
Choose the SFP+ module according to requirement and plug into the SFP slots of the OEO Converter.

Connect the fiber cable from the device (media converter or switch) on the other end to the SFP+ port of the OEO converter.

After the device is powered on, the PWR indicator will all be on. If the indicators are not on, check the power supply connection.

After all cables are correctly connected, the indicators will be lit as per port status LEDs.

Can manually switch the transmission rate
Supports 1.25G/10G fiber optic data rate switching
Hot plugging, loop-back,Jumbo Frame,full state led display available

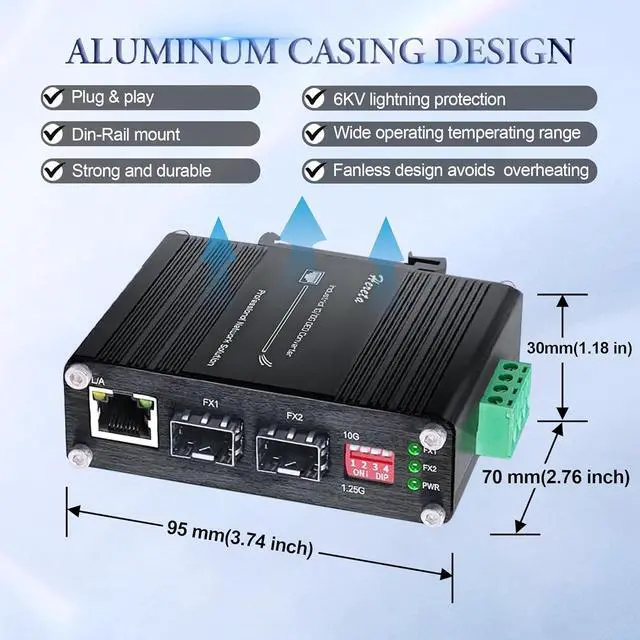

Made of Dustproof, Close Design IP40 and Rugged High-strength Aluminium Alloy Case
Work in Operating Temperature -40°C to 80°C (-40°F to 176°F)

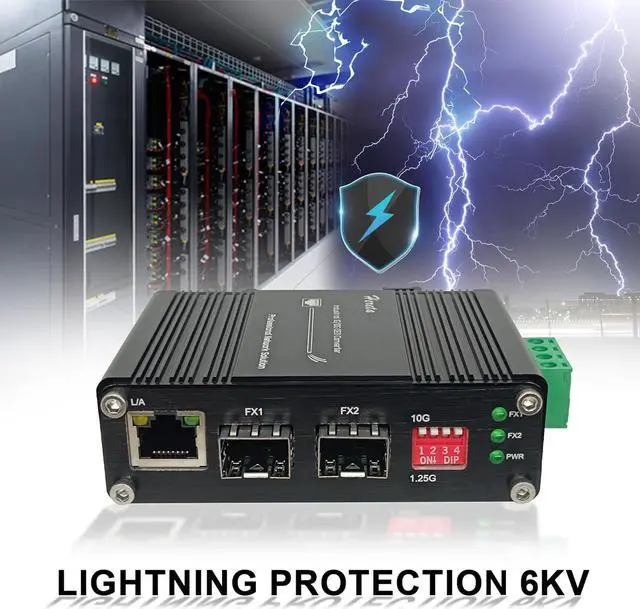

With Lightning Protection
Can be Used in Wide Range of Scenarios,such as Manufacturing,Traffic,Smart City,etc.

Industrial 1G/10G SFP+ to SFP+ OEO Converter (3R Repeater) with 1G Ethernet Media Converter Function Specifications: Setup/ Installation DIP Switch Industrial Grade Quality
