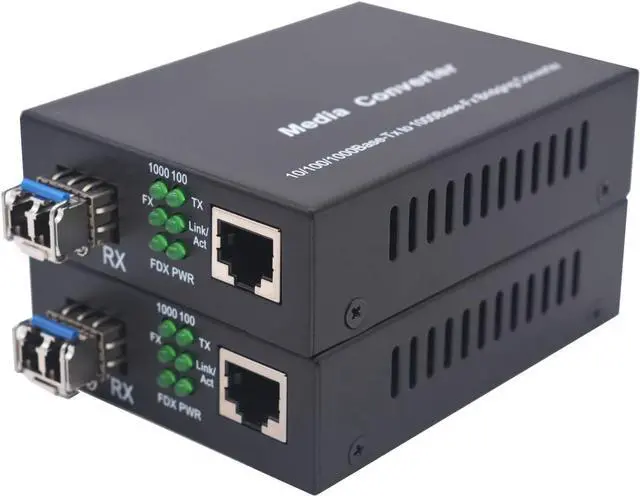

A Pair of 1.25G BiDi Gigabit Multi-Mode LC Fiber to Ethernet Media Converter, with 2pcs Dual SFP transceiver Module, 1310nm, MMF, RJ45 to SFP Slot up to 2Km.
- Fiber Port: 2Km SFP transceiver included (1.25G, multimode, Wavelength 1310nm).
- Fiber Type: SFP MMF, Dual LC.
- RJ-45 Port: 1 port 10M/100M/1000Mbps, full/half duplex auto-negotiation, MDI/MDIX auto-crossover.Cable Type: UTP/STP Cat.5e for 100 meters.
- Status LED's for TX, FX LINK/ACT, POWER, FDX to easily monitor network status.
- Plug and Play: Simply plug in optical port and RJ45 port, and it will work immediately.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Features:

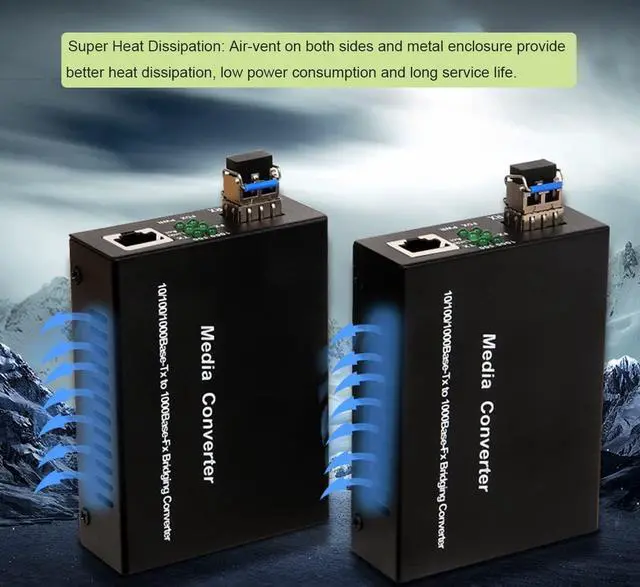

1.Super Heat Dissipation: Air-vent on both sides and metal enclosure provide better heat dissipation, low power consumption and long service life.

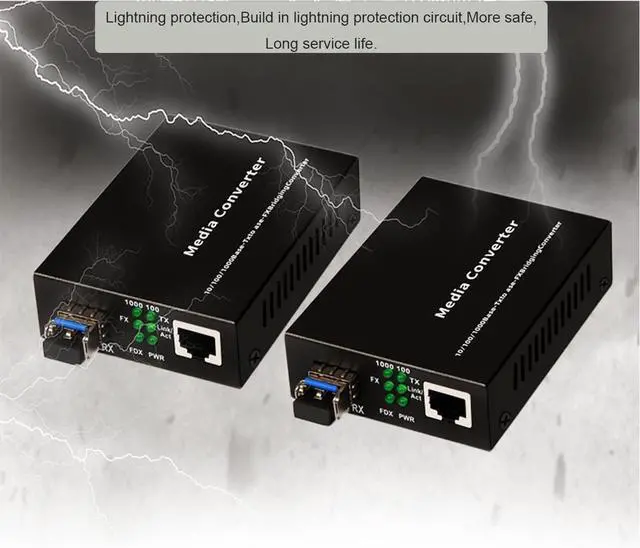

2.Lightning protection. Strong anti-interference ability. High-speed and stability signal conversion.
3.Standalone design with simple plug-and-play set-up. Compact size provide more flexible installation options.
Specification:
1.Dimensions:95x72x27mm (LxWxH)
2.Power Adapter working voltage AC100V~240V DC5V1A, UL Certified.
3.Power Dissipation 3 watts.
4. High-quality Conversion Chip & Easy Installation, Operating temperature: 0°C to 60°C.
5. Storage temperature: -20°C to 70°C.Humidity:5% to 90% RH.
Product content:
2x Gigabit Multimode Ethernet Fiber Media Converter.
2x Bi-Di SFP slot LC Multi-Mode module (1310nm, up to 2Km).
2x External Power Adapter (US standard), Output voltage:5V DC/1A, UL Certified.
1x Product Manual.

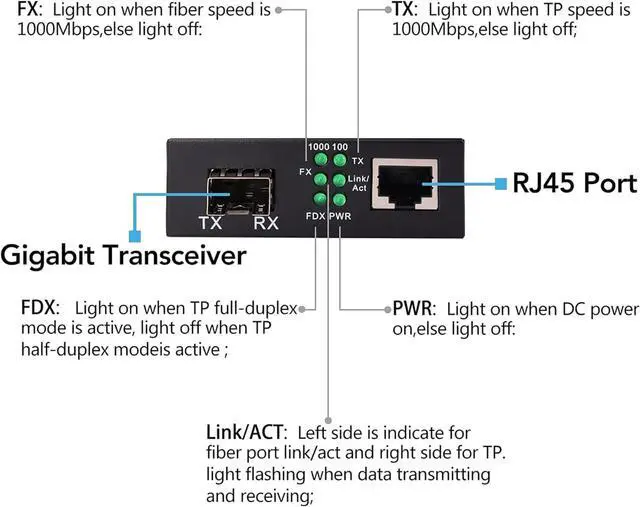

LED Indicators
1.FP:Light on when fiber speed is 1000Mbps,else light off
2.TP:Light on when TP speed is 1000Mbps, else light off
3.Link/ACT: Left side is indicate for fiber port link/act and right side for TP, light flashing when data transmitting and receiving
4.FDX: Light on when TP full-duplex mode is active, light off when TP half-duplex mode is active
5. PWR: Light on when DC power on, else light off.
1.Super Heat Dissipation: Air-vent on both sides and metal enclosure provide better heat dissipation, low power consumption and long service life.
2.Lightning protection. Strong anti-interference ability. High-speed and stability signal conversion.
3.Standalone design with simple plug-and-play set-up. Compact size provide more flexible installation options.
Specification:
1.Dimensions:95x72x27mm (LxWxH)
2.Power Adapter working voltage AC100V~240V DC5V1A, UL Certified.
3.Power Dissipation 3 watts.
4. High-quality Conversion Chip & Easy Installation, Operating temperature: 0°C to 60°C.
5. Storage temperature: -20°C to 70°C.Humidity:5% to 90% RH.
Product content:
2x Gigabit Multimode Ethernet Fiber Media Converter.
2x Bi-Di SFP slot LC Multi-Mode module (1310nm, up to 2Km).
2x External Power Adapter (US standard), Output voltage:5V DC/1A, UL Certified.
1x Product Manual.
LED Indicators
1.FP:Light on when fiber speed is 1000Mbps,else light off
2.TP:Light on when TP speed is 1000Mbps, else light off
3.Link/ACT: Left side is indicate for fiber port link/act and right side for TP, light flashing when data transmitting and receiving
4.FDX: Light on when TP full-duplex mode is active, light off when TP half-duplex mode is active
5. PWR: Light on when DC power on, else light off.
