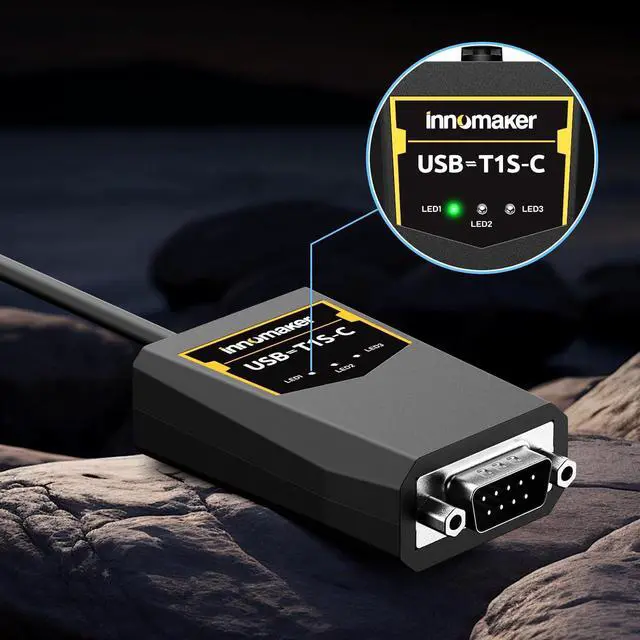

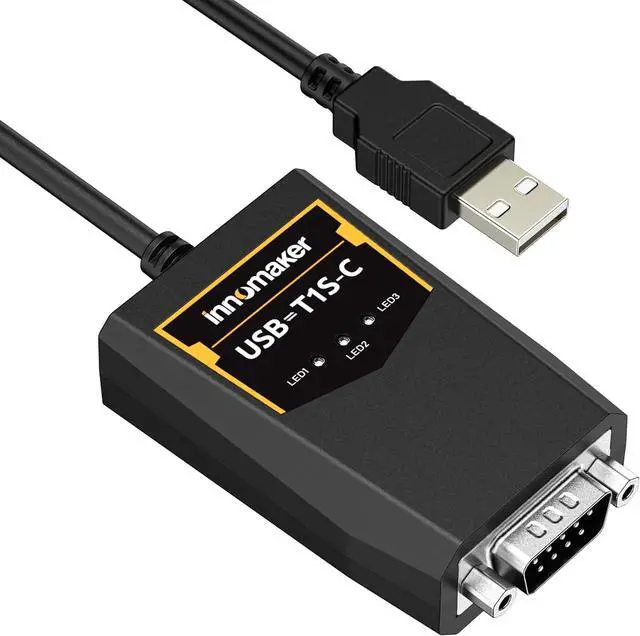

USB to 10BASE-T1S Ethernet Interface Converter Device 10Mbps Ethernet to 10BASE-T1S Convertor. Support Windows and Linux

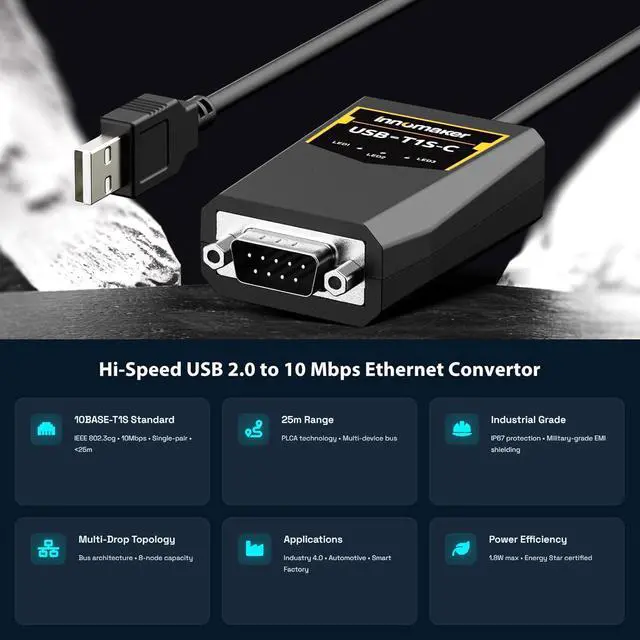

- Hi-Speed USB 2.0 to 10 Mbps Ethernet convertor, to interconnect a USB interface with a IEEE 802.3cg 10BASE-T1S Ethernet network interface. The convertor serves as a network card that connects applications via USB 2.0 to the 10BASE-T1S network interface.
- Support multidrop mixing segments and physical layer collision avoidance (PLCA).
- 10BASE-T1S single-pair Ethernet physical layer transceiver LAN8670.
- Industrial-grade design with built-in ESD protection devices ensures strong anti-interference capabilities, protecting signal lines within the device from electrostatic discharge (ESD) and surge interference.

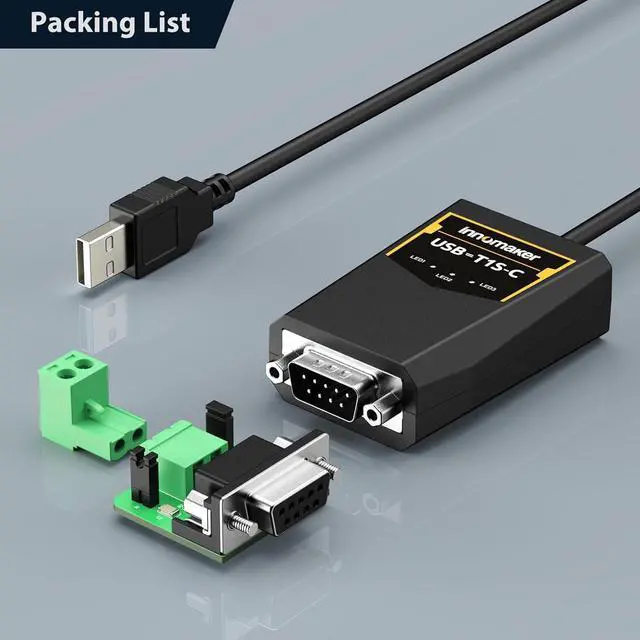

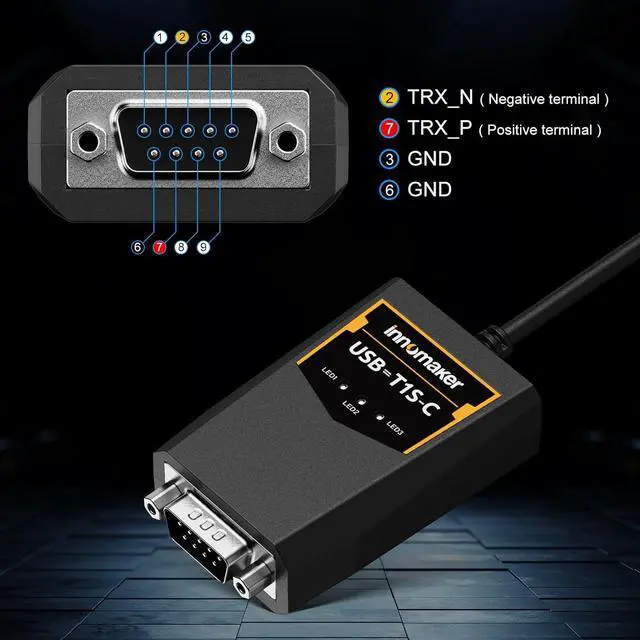

- The device uses a USB Type-A connector and a standard DB9 terminal. A converter board is included with the package, which allows configuration of two 49.9 termination resistors and selection of wiring conversion methods.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
10BASE-T1S is an Ethernet standard designed specifically for short-distance, low-cost applications and is widely used in industrial automation, automotive electronics, and the Internet of Things (IoT).
10BASE-T1S is part of the IEEE 802.3cg standard, representing a single-pair twisted-pair Ethernet technology.
10BASE: Indicates a transmission rate of 10 Mbps.
T1: Refers to the use of a single-pair twisted pair for communication.
S: Represents support for short-reach applications.
The USB2T1S-C is a Hi-Speed USB to 10BASE-T1S Ethernet network convertor. Industrial-grade design and built-in ESD protection. By using a single-pair twisted pair for data transmission, supporting a maximum transmission distance of up to 25 meters. It supports multipoint communication, allowing multiple devices to share the same twisted pair (similar to a bus structure). Additionally, it uses IEEE 802.3's PLCA (Physical Layer Collision Avoidance) technology to prevent signal collisions and improve communication efficiency.

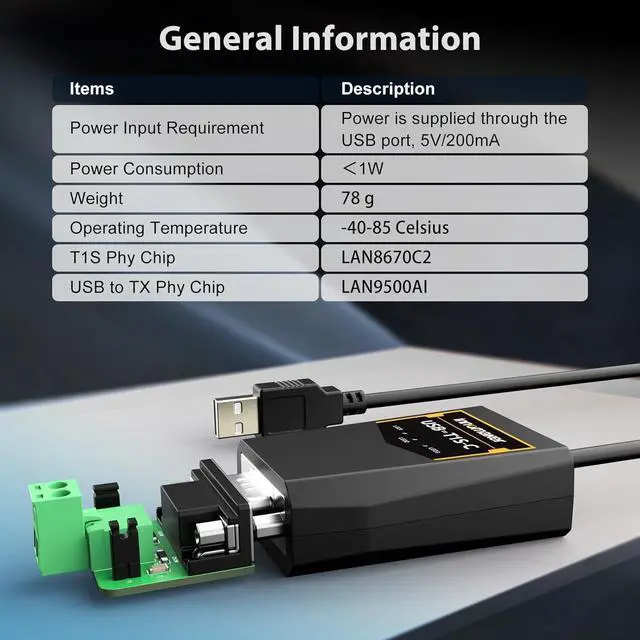

Power Input RequirementPower is supplied through the USB port, 5V/200mAPower Consumption1WWeight78gOperating Temperature-40-85 CelsiusT1S Phy ChipLAN8670C2USB to TX Phy ChipLAN9500AI Previous page
Next page5.0 out of 5 starsUSB to 10BASE-T1S Ethernet Interface Converter Device 10Mbps Ethernet to 10BASE-T1S Convertor. Support Windows and Linux
Share:
Found a lower price? Let us know. Although we can't match every price reported, we'll use your feedback to ensure that our prices remain competitive.
Fields with an asterisk * are required
**
10BASE-T1S is part of the IEEE 802.3cg standard, representing a single-pair twisted-pair Ethernet technology.
10BASE: Indicates a transmission rate of 10 Mbps.
T1: Refers to the use of a single-pair twisted pair for communication.
S: Represents support for short-reach applications.
The USB2T1S-C is a Hi-Speed USB to 10BASE-T1S Ethernet network convertor. Industrial-grade design and built-in ESD protection. By using a single-pair twisted pair for data transmission, supporting a maximum transmission distance of up to 25 meters. It supports multipoint communication, allowing multiple devices to share the same twisted pair (similar to a bus structure). Additionally, it uses IEEE 802.3's PLCA (Physical Layer Collision Avoidance) technology to prevent signal collisions and improve communication efficiency.
Power Input RequirementPower is supplied through the USB port, 5V/200mAPower Consumption1WWeight78gOperating Temperature-40-85 CelsiusT1S Phy ChipLAN8670C2USB to TX Phy ChipLAN9500AI Previous page
