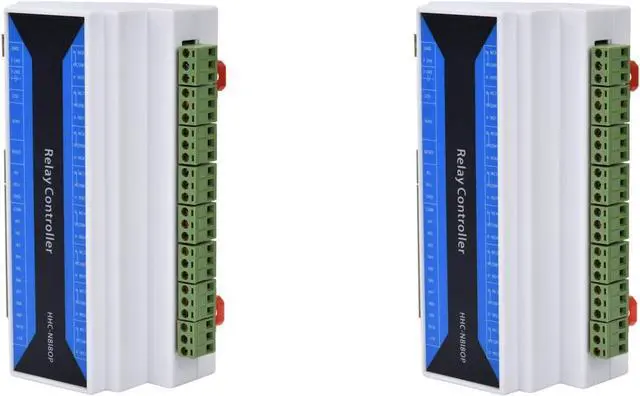

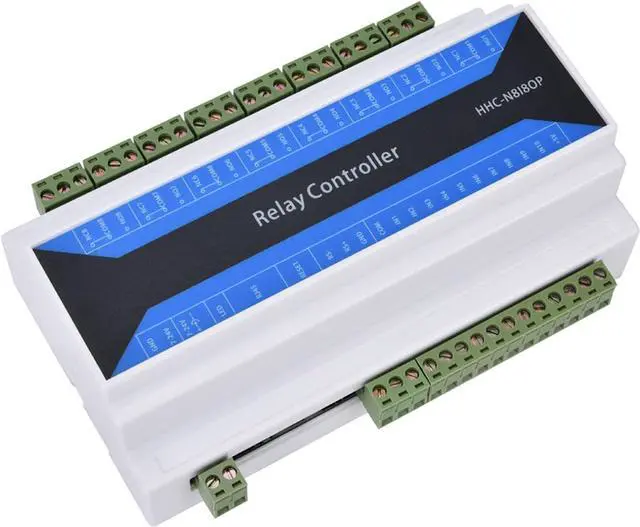

2pcs Remote Control Module TCP Relay 8 Channel Network High Anti Interference Industrial Grade Ethernet to RS485 for Power Supply with 10 Client Connections Way

Specification:
Item Type:Network Relay

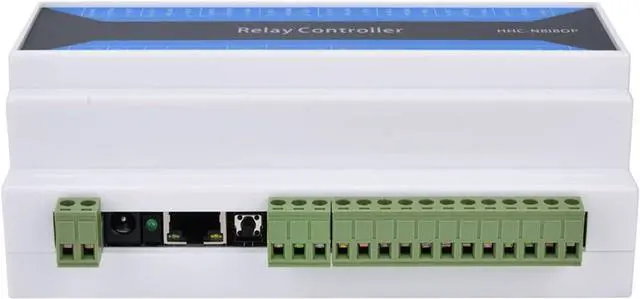

Power Supply:DC7~24V(DC socket or wiring terminal can be selected to input power.)
DC Connector Size:5.5 x 2.1mm / 0.22 x 0.08in(Outer Diameter - Inner Diameter)
Working Temperature Range:-40~85

Users Manual:
8 independent relay outputs
The output does not have voltage. The single relay has a DC rating of 10A, an AC rated current of 10A, a maximum AC rating of 250V, and a maximum DC rating of 30V.
10 channels of independent input
IN9 means full open, after IN9 has digital input, all relays are connected.
IN10 means full off. When IN10 has output, all relays are off.
The 8-input user of IN1-IN8 can be configured into three different working modes through the configuration parameter tool, and is selected under the Input Mode of the configuration tool.
In the normal input mode, the ordinary input is acquired. To obtain the input status, a command to read the input status is sent to the device.
Trigger Relay mode, after this mode has input, the corresponding relay state is reversed, and the IN1-IN8 control corresponds to the 1-8 relay.
Active Upload mode, which actively sends an input status to the network connected to the device when there is a change in the input.
The device has an RS485 interface. It can be controlled by RS485 equipment from other manufacturers. Can realize the transparent transmission of network data to RS485 data, the baud rate 300-115200 can be configured. When using parity, the data bit must be configured to 9 bits, and the serial port parameters are configured through the configuration tool.
The device has a power-down save function that saves the status of the relay and can be configured through the configuration tool.
Reset the configuration. The label RESET position is the factory reset button.
