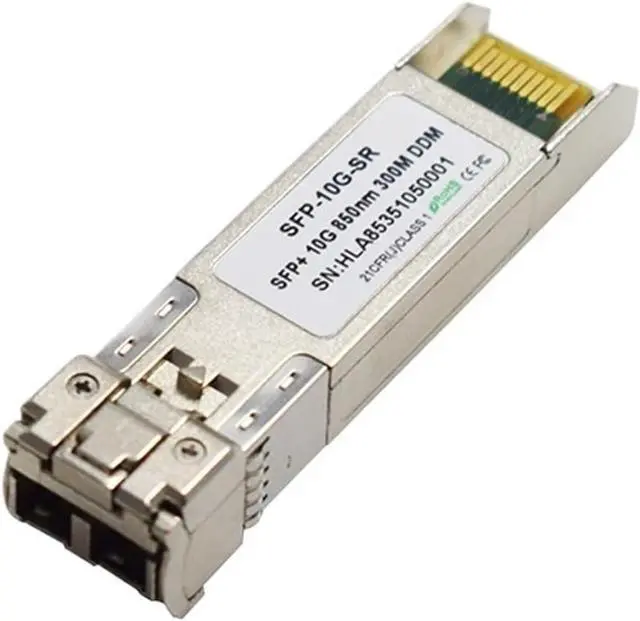

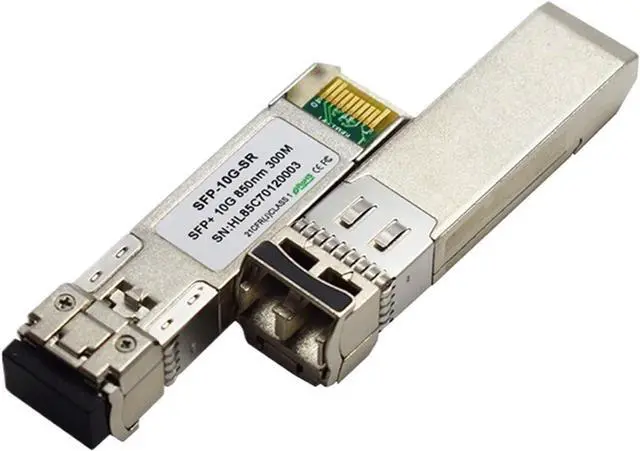

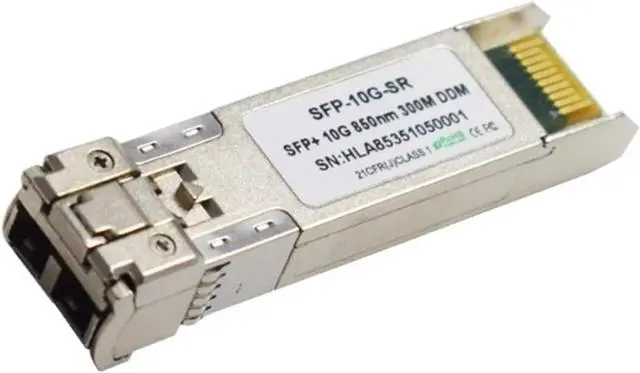

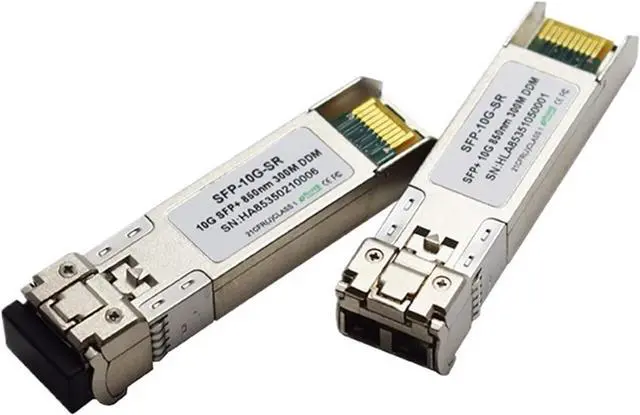

SFP-10G-SR Multimode Fiber MMF 10G 850nm 300m SR SFP+ Transceiver(2 PCS)

Fiber Optic Products / Fiber Optic Receivers
10G 850nm 300m SRSFP+ Transceiver
Features:
850nm VCSEL Transmitter
Data transfer rate: 10.3Gbps
Distance up to 300m
Single 3.3V Power supply and TTL Logic Interface
Duplex LC Connector
Compliant with SFF-8431, IEEE 802.3ae
<;; 1W
Digital Diagnostic Monitoring Function
Operating Temperature: 0-70 Temp
Applications:
10GBASE-SW/SR
10G Fiber Channel
Other Optical Link
10G SFP+ Transceiver
Part Number
Application
Data Rate
Wavelength
Distance
ConnectorType
HL-SFP-10G-SR
SFP+ 10GBASE-SR
10G
850nm
300m
LC
HL-SFP-10G-LR
SFP+ 10GBASE-LR
10G
1310nm
10km
LC
HL-SFP-10G-LRM
SFP+ 10GBASE-LRM
10G
1310nm
220m
LC
HL-SFP-10G-ER
SFP+ 10GBASE-ER
10G
1550nm
40km
LC
HL-SFP-10G-ZR
SFP+ 10GBASE-ZR
10G
1550nm
80km
LC
SFP+ SR is specifically designed for the high performance integrated duplex data transmission over multi mode optical fiber.
This transceiver is compliant with the Small Form-factor Pluggable Plus (SFP+) Multisource Agreement (SFF-8431 Rev4.1). This transceiver type is specifically optimized for transport of serial data at up to 10.3125 Gbps, with link characteristics complied with 10-Gigabit Ethernet 10GBASE-SR/SW base IEEE 802.3ae and 10G Fibre Channel.
