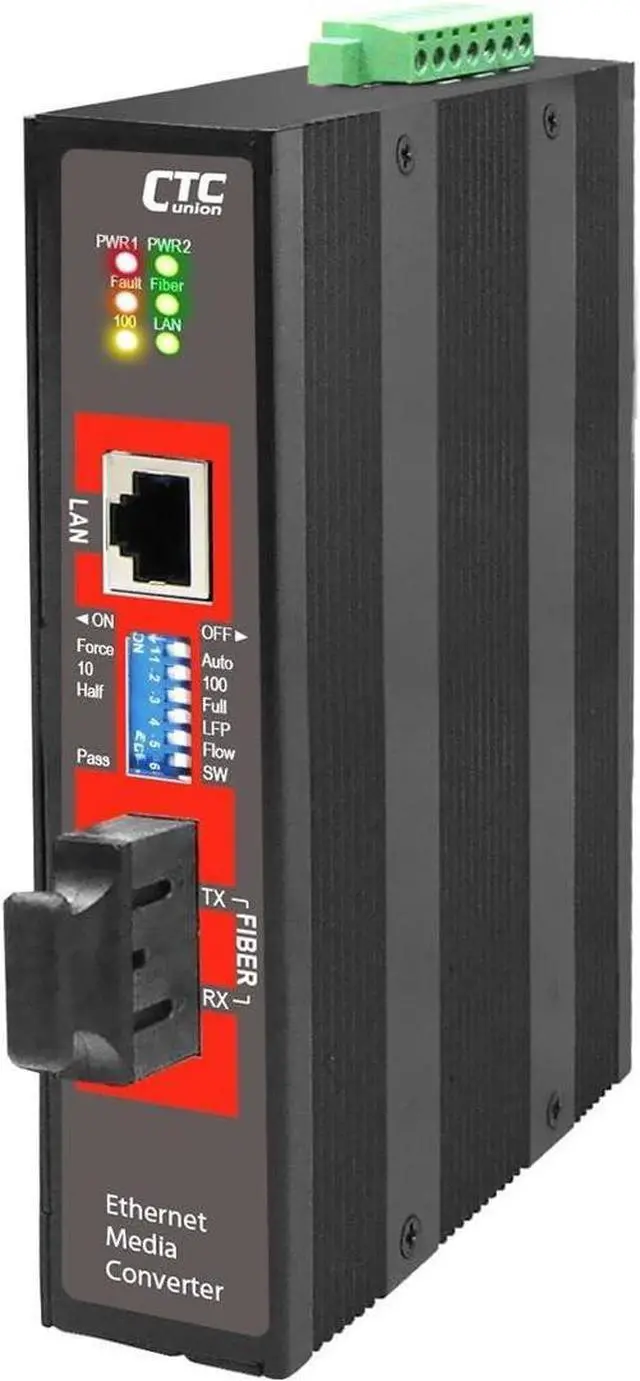

IMC-100-PD-SC002 - Fast Ethernet multimode Fiber Industrial Media Converter PoE Powered, -10-60 Celsius

IMC-100-PD-SC002 is an industrial media converter designed for conversion between electrical 10/100Base-TX and optical 100Base-FX multimode fiber transmission medium, with option to be powered by PoE (Power over Ethernet) function. Simple DIP switch settings allow configuring the UTP port for auto-negotiation or for forced 10/100 speed and half/full duplex as well as for enabling LFP (Line Fault pass through) Control(802.3X) and selecting Switch Mode (store & forward) or Converter Mode (Pass-through). Industrial designed converters feature rugged design with metal housings or wall mounting for DIN Rail mounting, highly reliable electrical design to support very high MTBF (mean time between failure), enhanced safety and surge protection, better EMS (Electro Magnetic Susceptibility), as well as expanded operating temperature ranges. The IMC-100-PD-SC002 media converter has standard operating temperature range -10° to 60°C. Redundant dual DC input Power 12/24/48VDC (9.6~58VDC)with additional power input capability via PoE Complies with 802.3af PoE/PD standard IP30 rugged metal housing UL508,CE,FCC,Rail traffic EN50121-4 Industry grade EMS certification Store-and-Forward mode and Pass-through mode (set by DIP SW) Conversion between 10/100Base-T(X) and 100Base-FX MMF duplex cable with SC interface Provide a 6 Pole DIP-Switch to set functions
