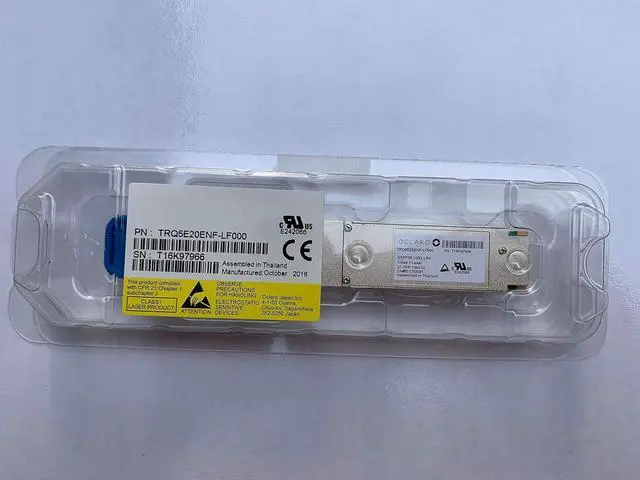

TRQ5E20ENF-LF000, Compatible with Cisco QSFP-100G-LR4

Oclaros 100GbE QSFP28 transceiver module TRQ5E20ENF is designed for high port densities with its compact size and low power consumption. TRQ5E20ENF is used in data centers, high performance computing networks, and service provider transport networks. TRQ5E20ENF is a fully integrated 4 x 25Gbit/s optical transceiver module that consists of 1310nm wavelength lasers, Driver ICs, PIN photo-diodes, and clock and data recovery (CDR) ICs with 25 Gbit/s electrical interfaces for operation over a pair of single mode fiber with duplex LC connectors. TRQ5E20ENF supports links of up to 10km. Mechanical dimensions, connecters, footprint of TRQ5E20ENF conform to SFF-8661 specification.

FEATURES
Compliant to 100Gigabit Ethernet (100GbE) 100GBASE-LR4 & ITU-T G.959.1 4I1-9D1F
Laser Class 1
CFP2 MSA compliant
103.125 & 111.810 Gbit/s Dual Rate Operation
100GBASE-LR4 /4I1-9D1F: 10 km Reach
25.8/28.0 Gbit/s x 4 channel Electrical Interface (CEI-28G-VSR)
1310 nm cooled EA-DFB LD
PIN Photo detector
Operation Case Temperature: 0 to 70°C
Low Power Consumption (12W max)
MDIO Management Interface
