WayPonDEV Banana Pi WiFi 6 OpenWrt One Router Board, Wireless Dual Band Internet Router, MediaTek MT7981B SoC 1GB DDR4 RAM, Integrated 1x 2.5GbE WAN Gigabit LAN RJ45 Port, Support AP, WPA,WPA2,WPA3
- OpenWrt One/AP-24.XY Router Board is designed based on MediaTek MT7981B (Filogic 820) SoC and MediaTek MT7976C Dual-Band WiFi 6 Chipset, it is the official first development board for OpenWrt open source community. Widely used for Creator DIY, OpenWrt software learning and development, IoT applications, wifi6 wireless routing applications, Nas, network communication applications and so on.
- The OpenWrt One router board is a MediaTek Filogic 820 SoC-based routing device with WiFi 6, dual-band, 3 x 3/2 x 2, 1 x 2.5G WAN network interface, 1 x Gigabit LAN network interface, on-board 1GB of DDR4 RAM , 256 MiB of NAND, 16 MiB of NOR, M.2 SSD interface and USB OpenWrt One also offers a USB 2.0 Type-A and a mikroBUS expansion port, providing additional interfaces for a wide range of technical possibilities.In addition, PWM is also supported in the application software.
- The MediaTek MT7981B is a compact Wi-Fi system-on-chip (SoC) for IoT devices that includes an embedded TCP/IP stack. Using
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

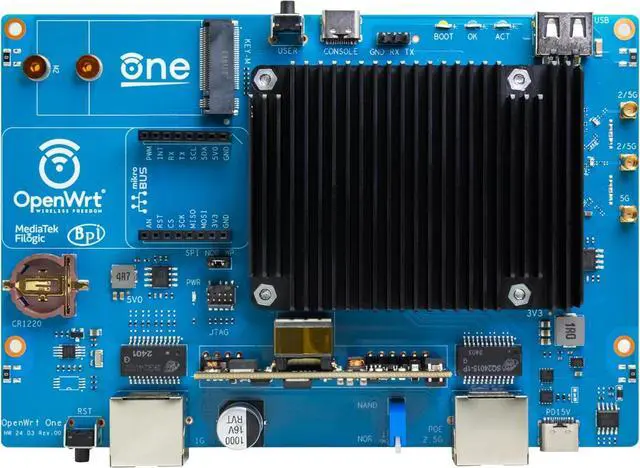

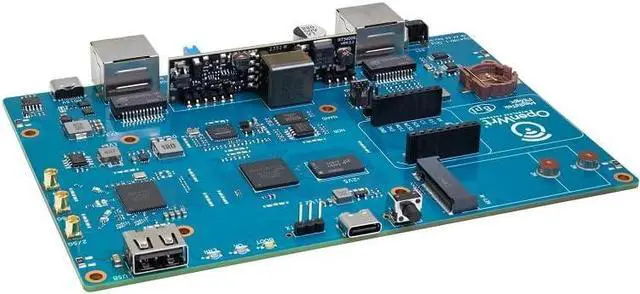

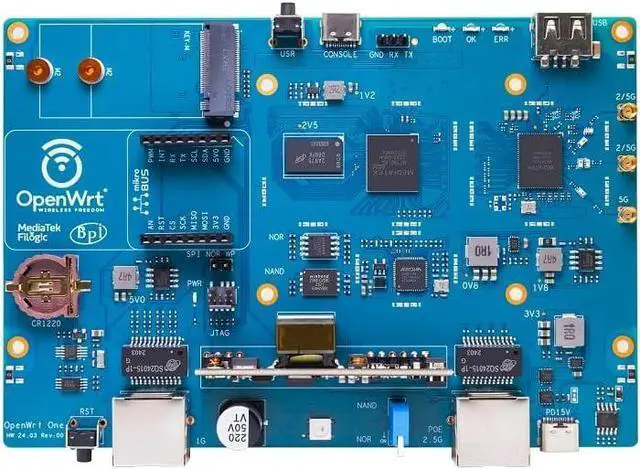

Banana Pi WiFi 6 OpenWrt One Router Board
Dual-band WiFI 6 wireless network supported by MediaTek MT7976C (2 x 2 2.4 GHz + 3 x 3/2 x 2 + zero-wait DFS 5Ghz)
1x USB 2.0 Type-A Host Port, USB Type-C (Device, Console) Port using Holtek HT42B534-2 UART to USB Chip
Expansion: MikroBUS expansion module socket
Debug: Console connected via USB-C port or 3-pin connector, 10-pin JTAG/SWD connector for host SoCs
Size: 148 x 100.5 mm Compatible with Banana Pi BPI-R4 case design
12V USB-PD on USB-C port (may have been changed to 15V max)
Optional 802.3at/af PoE network power via Banana Pi RT5040 module
Boot selector switch: NAND (Normal) or NOR (Recovery)
EM6324 external hardware watchdog
SoCMediaTek MT7981B (Filogic 820) dual-core Cortex-A53 processor 1.3 GHzMemory1GB DDR4 RAMStorage1256 MB SPI NAND flash for U-boot and LinuxStorage2M.2 2242/2230 socket for NVMe SSD (PCIe gen 2 x1)Storage316 MB SPI NOR flash for write-protected (by default) recovery bootloader (reflashing can be enabled with a jumper)Networking11 x 2.5GbE RJ45 portNetworking21 x Gigabit Ethernet RJ45 portNetworking33x MMCX antenna connectorsNetworking4Dual-band WiFI 6 via MediaTek MT7976C (2×2 2.4 GHz + 3×3/2×2 + zero-wait DFS 5Ghz)USB11x USB 2.0 Type-A host portUSB2USB Type-C (device, console) port using Holtek HT42B534-2 UART to USB chipExpansionMikroBUS socket for expansion modulesDebuggingConsole via USB-C port or 3-pin header, 10-pin JTAG/SWD header for main SoCPower Supply15V USB-PD on USB-C port/Optional 802.3at/af PoE via RT5040 moduleDimensions148 x 100.5 mm compatible with Banana Pi BPI-R4 case design Creators DIY; Nas; OpenWrt Software Learning and Development; Wifi6 Wireless Routing Application;IoT Internet of Things Applications; Network Communication Applications

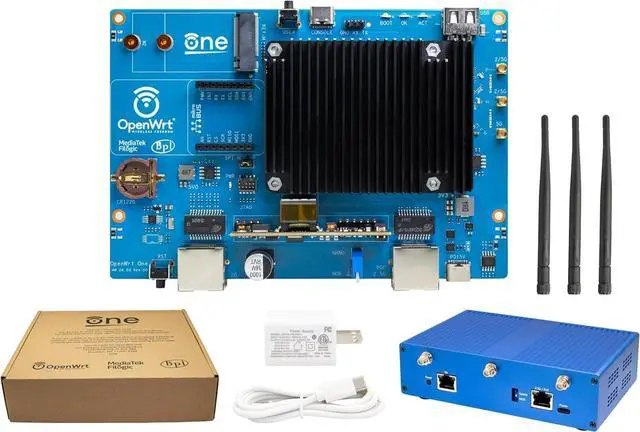

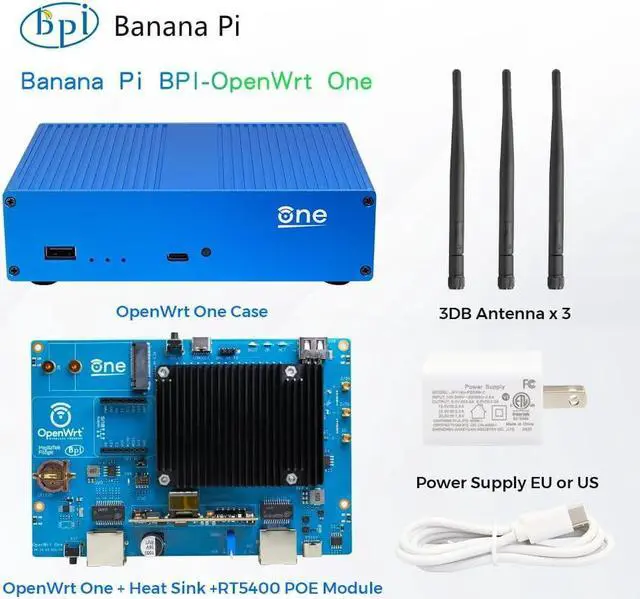

BPI OpenWrt One Wifi 6 Router Board x1
Metal Heat Sink x1
PD Power Supply x1
Blue Metal Case x1
Antenna x3
Help others learn more about this product by uploading a video!Collapse all4.6 out of 5 starsWayPonDEV Banana Pi WiFi 6 OpenWrt One Router Board, Wireless Dual Band Internet Router, MediaTek MT7981B SoC 1GB DDR4 RAM, Integrated 1x 2.5GbE WAN Gigabit LAN RJ45 Port, Support AP, WPA,WPA2,WPA3
