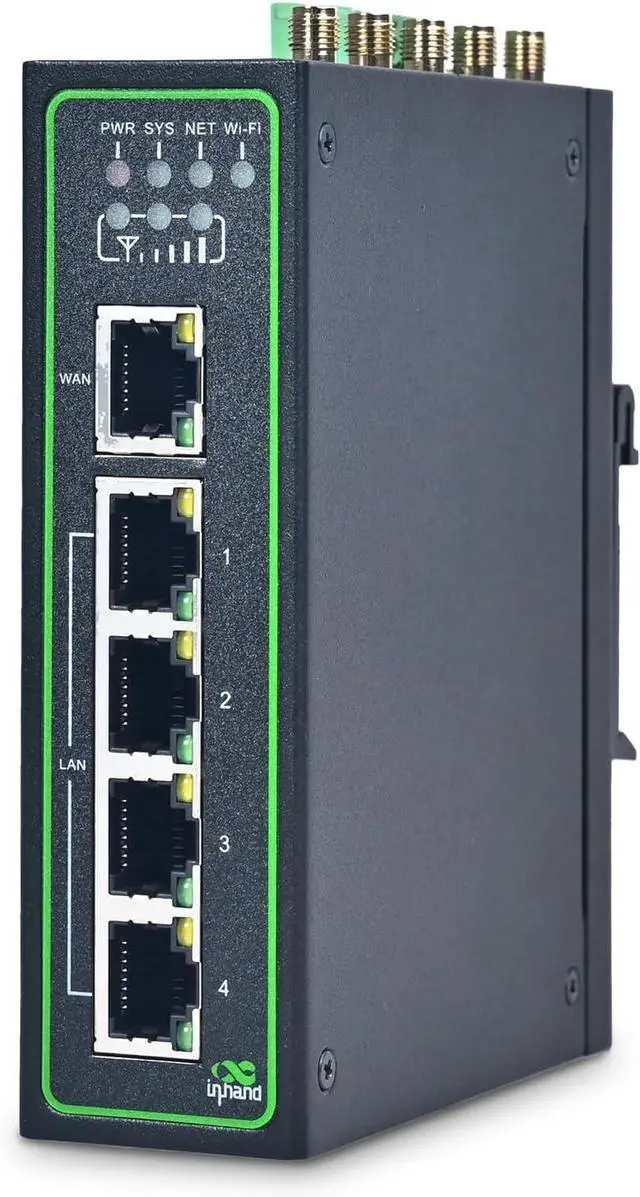

InHand Networks IR315, Industrial IoT 4G LTE VPN Router, 300Mbps Cellular + Wi-Fi, Dual SIM Cards Slots,5 Ethernet Port, Din-Rail Mounted, Support AT&T, T-Mobile & Verizon (LTE CAT 6 & DI/DO)

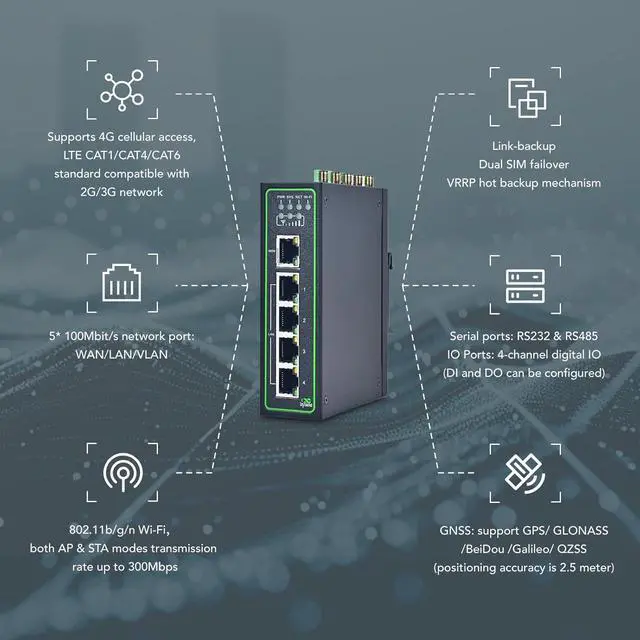

The IR315 is an IoT cellular router that integrates 4G LTE, Wi-Fi, and VPN technologies to provide easy, reliable, and secure Internet connectivity. With features such as 4G wireless wide area network and Wi-Fi wireless local area network, it offers uninterrupted access to multiple networks. With comprehensive security and intelligent software services, it enables efficient and secure networking, providing enterprises with safe and reliable data links for digital networking.
Din-rail Installation
Protection Rating IP30
Metal Housing
Operating Temperature -20~ 70
VRRP hot backup
Sends heartbeat packets to detect, auto redials when disconnected
Supports dual SIM failover
Device runs self-detection, auto recovers from malfunctions

Supports InHand Device Manager, batch management Add the user experience plan to access The InHand Networks cloud platform to enjoy efficient and convenient services
Secure Network Connection The IR315 is equipped with firewall policies, access control, built-in VPN, data encryption, enhanced Wi-Fi security, and other features, effectively ensuring the security of the network.

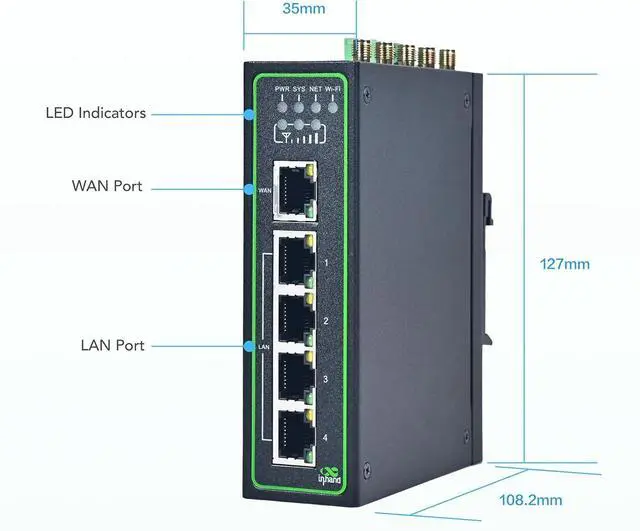

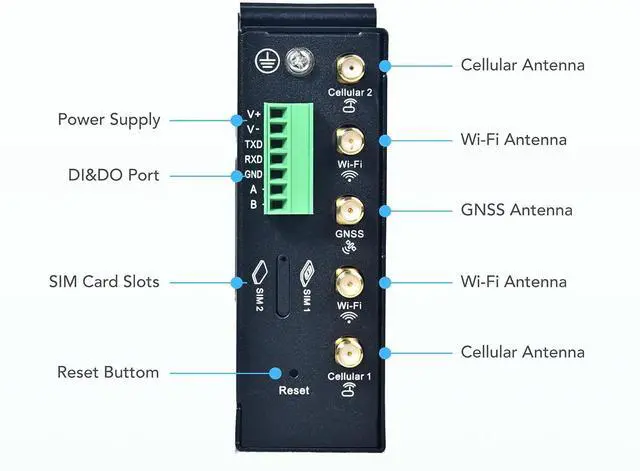

CPU580MHzRAM128MBFLASH 64MB SPIEthernet Port5*10/100Mbps fast Ethernet port, RJ45WAN/LAN/VLAN port 1.5KV network isolation transformer protectionPower Supply DC9-36V, over-current protection, anti-reverse connection, 2 PIN industrial terminalIO (Optional) Support 4 x IO (DO or IO can be configured)Serial port (Optional) 1 x RS232 + 1 x RS485*Alternatives for I/O or Serial portSIM Card 1 x Drawer-type slot, support dual-NANO SIMWi-Fi (Optional)IEEE 802.11b/g/n300MbpsGNSS (Optional) Support GPS/ GLONASS /BeiDou /Galileo/ QZSS Positioning accuracy is 2.5 meterAntenna Connector1 x SMA for LTE, 2 x RP-SMA for Wi-Fi, 1 x SMA for GNSSDimensions 127x 108.2x 35mmWeight454gInstallation Din-railOperating Temperature-20~ 70 CertificateCE, E-MARK, IMDA, RCM, FCC, IC, PTCRB*, Verizon*, AT&T*, T-Mobile*, MIC&JATENetwork TypeGSM/GPRS/EDGE, UMTS/HSPA+/EVDO/TD-SCDMA/, TDD LTE/FDD LTE (Please refer to the Ordering Guide for frequencies)IP Application IPv4, Ping, Trace, DHCP Server, DHCP Relay, DHCP Client, DNS relay, DDNS, Telnet, IP PassthroughIP RoutingStatic routing, OSPF dynamic routingNATSupports network address translationNetwork SecurityStateful Packet Inspection (SPI), DoS attack defense; Multicast filter/Ping probe packet, Access Control List (ACL); Content URL filter, port mapping, virtual IP mapping, IP-MAC bindingData SecuritySupports PPTP, L2TP, GRE, IPSEC VPN (IKEv1, IKEv2), OPENVPN, DMVPN WireGuard, ZeroTier Supports CA digital certificateEmbedded Watchdog Device runs self-detection, auto recovers from malfunctionsSecurity Open system, shared key, WPA/WPA2 certification WEP/TKIP/AES encryptionProtocolIEEE 802.11b/g/nRate Up to 300MbpsTransmission Distance80 meters by line of sight (Actual transmission distance depends on environment of the site.)Integrated DTU FunctionsTCP, UDP transparent transmission mode, TCP Server mode Supports conversion of Modbus RTU to Modbus TCP bridge Supports DCUDP, DCTCP modeQoS ManagementBandwidth limit, IP speed limitLog Local system log, remote log, and serial export of log. Power down saving of important logs.Network managementSupports InHand Device Manager, batch management Add the user experience plan to access The InAlarmSystem restart alarm, LAN port online/offline alarm, data traffic alarm, SIM card failure alarm ,etc. Industrial Router InRouter315 4G LTE, Five Ethernet Ports, Dual SIM, Cloud Management Industrial design Easy Network Management InRouter315 Hardware Specifications InRouter315 Software Specifications
