Ethernet Range Extender 600m 2000ft Over Twisted UTP kit or BNC Cable or Copper Wire - Compatible with Any Ethernet Device - LAN Distance Repeater Booster Bridge - BNC to 2PIN adapters in Set
- ADnet's Ethernet Extender significantly extends the network distance and offers anti-interference protection, perfect for use in lifts, factory areas, warehouses, etc.
- The LAN extender set comes ready for installation and is a pure plug-and-play solution, no software/driver installation is required.

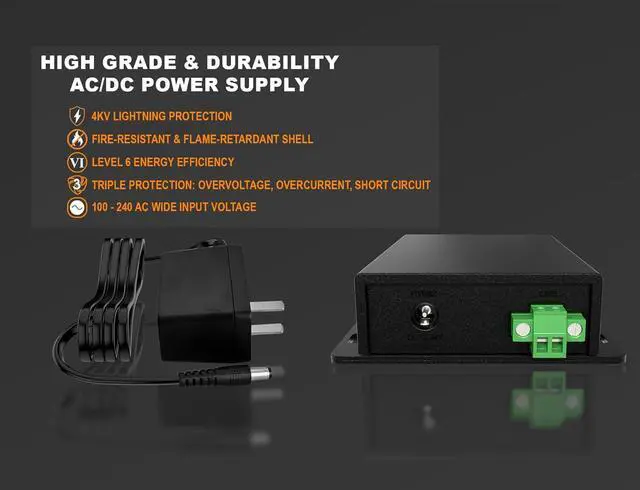

- Unlike passive ethernet cable distance extenders, these extenders come with a power supply source at both ends (power adapters come in set with every pair).
- Only 2 wires will be needed to extend the distance of your network devices, such as PC, wifi router, IP camera, streaming server, or any other standard ethernet device.
- Transmission distance - 600m (2000 ft) or more - depends on many factors such as, cable quality, type and diameter, with BNC to 2PIN wire adapter use it also with RG59 or other coax cables
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
AD-nets AN-LAN-EXT-ENH-UE allows 10/100 BaseT Ethernet to be transmitted over any 2-wire copper cables. This device is often used in legacy installations where the existing wire is re-used as part of an upgrade to IP devices.

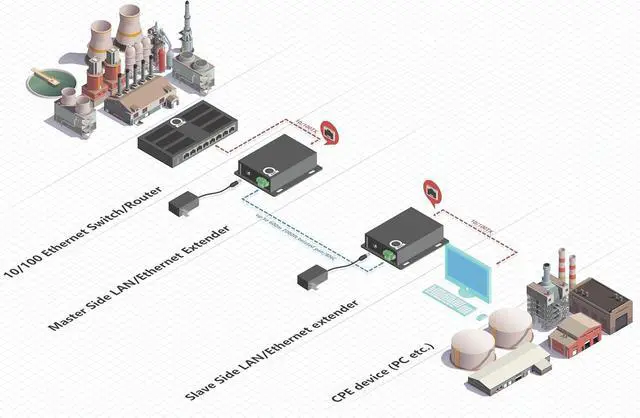

This device contains one Master unit and one Slave unit, which supports point-to-point network transmission. Device has been widely used for network extension systems, network security, network information publishing system, network renovation, expansion systems, etc.
Main Features:
Max Transmission theoretical distance reaches 600m (RVS 2×1mm2) depends on many factors, depending on cable quality, type, and diameter.
Plug and play, transparent transmission, no adjustment and no software installation or drivers are needed.
Low power consumption, communication channel dynamic adjustment and high-performance error correction coding technology
Transmission RateUp to 92Mbps real transmission speed (depends on distance and cable, see graph in image gallery)Transmission Distanceup to 600m (2000ft)Input Voltage Range12~24 VDC (AC to DC power adapter comes in set)Power Consumption<2WStandard ComplianceIEEE1901, IEEE802.3Uplink/Downlink protocolCSMA/CADimensions (L × W × H)100mm×86.5mm×25mm (3.93in x 3.40in x 0.98in)Line Interface2-pin terminal & BNC via adapterInput PortEthernet, RJ-45Outer Shell Material PC AlloyUnit Weight100gWorking Temperature-20°C60°C Working Humidity95% (Non-condensation) Specifications
This device contains one Master unit and one Slave unit, which supports point-to-point network transmission. Device has been widely used for network extension systems, network security, network information publishing system, network renovation, expansion systems, etc.
Main Features:
Max Transmission theoretical distance reaches 600m (RVS 2×1mm2) depends on many factors, depending on cable quality, type, and diameter.
Plug and play, transparent transmission, no adjustment and no software installation or drivers are needed.
Low power consumption, communication channel dynamic adjustment and high-performance error correction coding technology
Transmission RateUp to 92Mbps real transmission speed (depends on distance and cable, see graph in image gallery)Transmission Distanceup to 600m (2000ft)Input Voltage Range12~24 VDC (AC to DC power adapter comes in set)Power Consumption<2WStandard ComplianceIEEE1901, IEEE802.3Uplink/Downlink protocolCSMA/CADimensions (L × W × H)100mm×86.5mm×25mm (3.93in x 3.40in x 0.98in)Line Interface2-pin terminal & BNC via adapterInput PortEthernet, RJ-45Outer Shell Material PC AlloyUnit Weight100gWorking Temperature-20°C60°C Working Humidity95% (Non-condensation) Specifications
