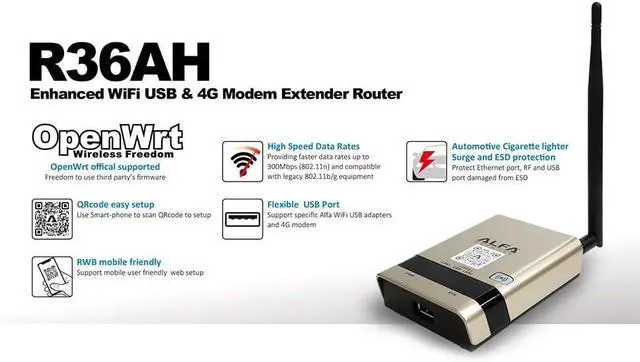

Alfa R36AH WPS Wireless Router 2.4GHz, 802.11n, 1x Internal Antenna, 1x Detachable High Gain Antenna, 1x USB Port, for Alfa USB WiFi Adapter, Windows, MacOS
- Flexible USB Port: Support specific Alfa WiFi USB adapters and 4G modem.
- RWB mobile friendly: Support mobile user friendly web setup.
- Automotive Cigarette lighter: Surge protection protect vehicle inrush current up to 36VDC.
- Enhanced ESD protection: Protect Ethernet port, RF and USB port damaged from ESD.
- Automotive Cigarette lighter: Surge protection protect vehicle inrush current up to 36VDC.
- Hardware Watchdog: Recover from fault to insure device working properly.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

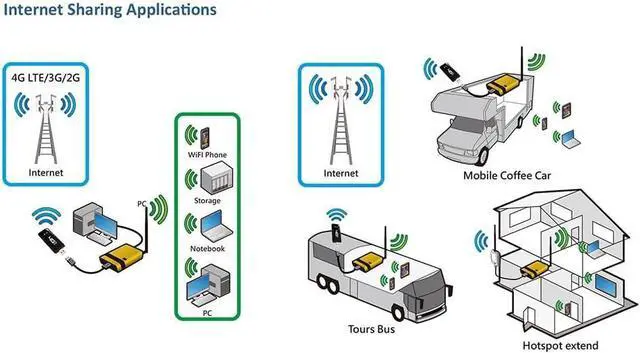

Mobile Coffee Car 4G modem extender mode
Tours Bus 4Gmodem extender mode
Hotspot extend WiFi USB extender mode
ChipsetQCA9531StandardIEEE 802.11n/b/g (2x2)Frequency2.142 2.484GHzFlash/SDRAM16 MB / 128 MBData Rate802.11n: up to 300Mbps; 802.11g: up to 54Mbps; 802.11b: up to 11MbpsChannel Width20 / 40MHzAntenna1x detachable antenna; 1x internal antennaLED IndicatedPWR, LAN, WAN, USB,WLANPower requirementDC Jack 12V; Passive PoE 12-24VSecurity64/128bit WEP; WPA(TKIP with IEEE 802.1x); WPA2(AES with IEEE 802.1x); WPA Mixed 802.1x authenticationRF Performance(2 streams/±2dB)Tx - 23dBm; RX -11b: -96@1M; RX - 11g: -77@54M; RX - 11n: -90@HT20Operation Temperature-20°C ~ 60°CStorage Humidity10% ~ 90% (Non-condensing)Dimension(mm)93 x 70 x 26 mmWeight74g Supported USB Device
WiFi USB:
AWUS036NHA; AWUS036NH; AWUS036NEH; AWUS036ACM; AWUS036ACHM; Tube-UNA; Tube-UN; Tube-UAC2
4G USB modem:
Alfa Onyx4GU; Tube-U4G; Tube-U4Gv2

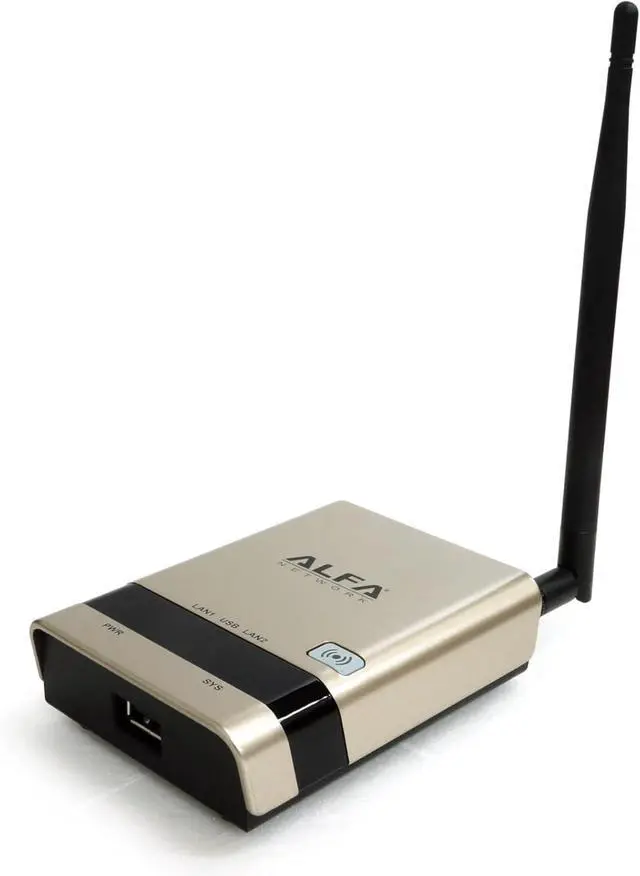

The ALFA R36AH v2 is a special high speed 2.4 GHz Wi-Fi router with USB port that allows you to share the long range Wi-Fi connection of an ALFA Tube-UAC2 Dual Band Outdoor USB WiFi receiver, or it's indoor version AWUS036ACHM.
Boost and share a 5 GHz WiFi signal, or a 2.4 GHz signal with multiple devices at once.
Perfect for extending a WiFi signal into an RV at a campground (additional components required). This device cannot repeat a WiFi signal without a compatible ALFA USB WiFi receiver.
ALFA R36AH v2 comes with firmware to support ALFA's dual band WiFi receiver models Tube-UAC2 and AWUS036ACHM. This firmware is not compatible with the ALFA R36A routers.
To use this device to share a Wi-Fi signal, you will also need one of the above devices or an older model like Tube-UNA or AWUS036NH. Then simply connect your computer to the R36AH via ethernet cable or Wi-Fi connection for a one-time configuration and setup. Connect the ALFA USB adapter to the R36AH, and using Wi-Fi scanning software built-into the R36AH, you can scan for and connect to available wireless networks in your area. Once the R36AH has connected to a network, you will be prompted to name and password protect your own new local Wi-Fi network, offering any device within a few hundred feet a strong Wi-Fi connection.
This is operating system independent and can be used with any computer or tablet with Microsoft Windows, Apple Mac OS, or iPad/tablet.
Internet Sharing Applications Specifications
Tours Bus 4Gmodem extender mode
Hotspot extend WiFi USB extender mode
ChipsetQCA9531StandardIEEE 802.11n/b/g (2x2)Frequency2.142 2.484GHzFlash/SDRAM16 MB / 128 MBData Rate802.11n: up to 300Mbps; 802.11g: up to 54Mbps; 802.11b: up to 11MbpsChannel Width20 / 40MHzAntenna1x detachable antenna; 1x internal antennaLED IndicatedPWR, LAN, WAN, USB,WLANPower requirementDC Jack 12V; Passive PoE 12-24VSecurity64/128bit WEP; WPA(TKIP with IEEE 802.1x); WPA2(AES with IEEE 802.1x); WPA Mixed 802.1x authenticationRF Performance(2 streams/±2dB)Tx - 23dBm; RX -11b: -96@1M; RX - 11g: -77@54M; RX - 11n: -90@HT20Operation Temperature-20°C ~ 60°CStorage Humidity10% ~ 90% (Non-condensing)Dimension(mm)93 x 70 x 26 mmWeight74g Supported USB Device
WiFi USB:
AWUS036NHA; AWUS036NH; AWUS036NEH; AWUS036ACM; AWUS036ACHM; Tube-UNA; Tube-UN; Tube-UAC2
4G USB modem:
Alfa Onyx4GU; Tube-U4G; Tube-U4Gv2
The ALFA R36AH v2 is a special high speed 2.4 GHz Wi-Fi router with USB port that allows you to share the long range Wi-Fi connection of an ALFA Tube-UAC2 Dual Band Outdoor USB WiFi receiver, or it's indoor version AWUS036ACHM.
Boost and share a 5 GHz WiFi signal, or a 2.4 GHz signal with multiple devices at once.
Perfect for extending a WiFi signal into an RV at a campground (additional components required). This device cannot repeat a WiFi signal without a compatible ALFA USB WiFi receiver.
ALFA R36AH v2 comes with firmware to support ALFA's dual band WiFi receiver models Tube-UAC2 and AWUS036ACHM. This firmware is not compatible with the ALFA R36A routers.
To use this device to share a Wi-Fi signal, you will also need one of the above devices or an older model like Tube-UNA or AWUS036NH. Then simply connect your computer to the R36AH via ethernet cable or Wi-Fi connection for a one-time configuration and setup. Connect the ALFA USB adapter to the R36AH, and using Wi-Fi scanning software built-into the R36AH, you can scan for and connect to available wireless networks in your area. Once the R36AH has connected to a network, you will be prompted to name and password protect your own new local Wi-Fi network, offering any device within a few hundred feet a strong Wi-Fi connection.
This is operating system independent and can be used with any computer or tablet with Microsoft Windows, Apple Mac OS, or iPad/tablet.
Internet Sharing Applications Specifications
